Large Format Vinyl Cutters 110 W | CAMM-1 ...

Large Format Vinyl Cutters 110 W | CAMM-1 GR2-640/540

Supplier: Prytec Solutions

Now is the time to grow your business by offering a greater range of products and a faster, more reliable service.

Receive 1-3 days from order

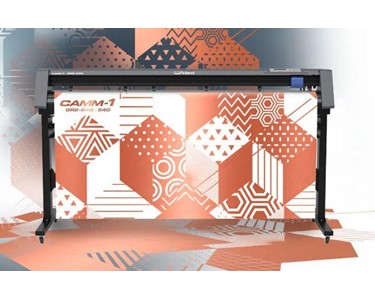

The GR2 series of large format cutting plotters from Roland DG is built to fit seamlessly with your print-then-cut workflow and deliver fast, flawless results from day one.

Key benefits

Great Return on Investment

Affordable and powerful, the GR2 series can easily raise your production and profits.

Integrates with Your Printer

Advanced Roland DG software delivers easy integration with print only technology.

The Roland DG Legacy

Make a safe investment with Roland DG’s world renowned quality and reliability.

Time-saving Windows Driver

Edit images in Adobe® Illustrator® or CorelDRAW® and output directly to the cutter.

User-friendly for Immediate Production

Plug in and start working immediately thanks to Roland DG’s easy to use interface.

Accurate Crop Mark Detection

Fast and accurate alignment to fit perfectly into your print-then-cut workflow.

Precise Angle Cutting

The overcut function gives you perfect, sharp corners when cutting thick material.

Intuitive Software Included

CutStudio included, letting you easily create designs and cut in a simple workflow.

GR2-640

Drive system

Digital control servo motor

Cutting mechanism

Media-moving method

Acceptable material size (*1)(*2)

Width:	50 mm to 1,782 mm (1.97 in. to 70.1 in.)
Thickness:	Thickness including backing paper is 0.8 mm (31.4 mil.) or less
Roll weight:	24 kg (52.9 lb.)

Maximum cutting area (width × length)

1,627 mm × 50,000 mm (64 in. × 1,968 in.)

Usable tools

CAMM-1 series blade (including blades for flatbed use)

Cutting speed

30 to 1,530 mm/s (1.19 to 60 in./s)

Blade force

5 - 600 gf

Mechanical resolution

0.006 mm/step (0.236 mil./step)

Software resolution

0.025 mm/step (0.98 mil./step)

Distance accuracy (*3)

Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater

Repeatability (*3)(*4)(*5)

0.1 mm (3.94 mil.) or less

Connectivity

Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
USB 2.0 (FULL SPEED compliant)
RS-232C

Replot memory

32 MB

Command system

HP-GL, HP-GL/2 compliant

Power requirements

AC 100 to 240 V ± 10%, 50/60 Hz

Power consumption

Approx. 110 W

Acoustic noise level

During operation	56 dB (A) or less
During standby	40 dB (A) or less

Dimensions (Width x Depth x Height)

1,982 mm × 756 mm × 1,127 mm (78.1 in. × 30 in. × 44.4 in.)

Weight

69 kg (153 lb.)

Packaging dimensions

2,200 mm × 395 mm × 880 mm (87 in. × 15.6 in. × 34.7 in.)

Packaging weight

97 kg (214 lb.)

Environment

Temperature: 15 to 30 °C (59 to 86 °F), humidity: 25 to 75 %RH (no condensation)

Accessories

USB cable, cutting pad, safe blade, dedicated stand, tweezers, user's manual, etc.

*1: Depending upon the type, material that is 500 mm (19.6 in.) or longer may shift during cutting.
*2: You may also be unable to cut some types of material.
*3: According to material and cutting conditions as specified by Roland DG Corporation.
*4: Excluding expansion/contraction of the material.
*5: Range for assured repetition accuracy:

For media with a width exceeding 610 mm (24 in.): Length: 4,000 mm (157 in.)
For media with a width of 610 mm (24 in.) or less: Length: 8,000 mm (314 in.)

GR2-640

Drive system

Digital control servo motor

Cutting mechanism

Media-moving method

Acceptable material size (*1)(*2)

Width:	50 mm to 1,594 mm (1.97 in. to 62.7 in.)
Thickness:	Thickness including backing paper is 0.8 mm (31.4 mil.) or less
Roll weight:	20 kg (44.1 lb.)

Maximum cutting area (width × length)

1,372 mm × 50,000 mm (54 in. × 1,968 in.)

Usable tools

CAMM-1 series blade (including blades for flatbed use)

Cutting speed

30 to 1,530 mm/s (1.19 to 60 in./s)

Blade force

5 - 600 gf

Mechanical resolution

0.006 mm/step (0.236 mil./step)

Software resolution

0.025 mm/step (0.98 mil./step)

Distance accuracy (*3)

Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater

Repeatability (*3)(*4)(*5)

0.1 mm (3.94 mil.) or less

Connectivity

Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
USB 2.0 (FULL SPEED compliant)
RS-232C

Replot memory

32 MB

Command system

HP-GL, HP-GL/2 compliant

Power requirements

AC 100 to 240 V ± 10%, 50/60 Hz

Power consumption

Approx. 110 W

Acoustic noise level

During operation	56 dB (A) or less
During standby	40 dB (A) or less

Dimensions (Width x Depth x Height)

1,711 mm × 651 mm × 1,111 mm (68 in. × 25.7 in. × 44 in.)

Weight

60 kg (133 lb.)

Packaging dimensions

2,040 mm × 395 mm × 850 mm (81 in × 15.6 in × 33.5 in.)

Packaging weight

85 kg (188 lb.)

Environment

Temperature: 15 to 30 °C (59 to 86 °F), humidity: 25 to 75 %RH (no condensation)

Accessories

USB cable, cutting pad, safe blade, dedicated stand, tweezers, user's manual, etc.

For media with a width exceeding 610 mm (24 in.): Length: 4,000 mm (157 in.)
For media with a width of 610 mm (24 in.) or less: Length: 8,000 mm (314 in.)

To contact Prytec Solutions about Large Format Vinyl Cutters 110 W | CAMM-1 GR2-640/540 use Get a quote.

The GR2 series of large format cutting plotters from Roland DG is built to fit seamlessly with your print-then-cut workflow and deliver fast, flawless results from day one.

Key benefits

Great Return on Investment

Affordable and powerful, the GR2 series can easily raise your production and profits.

Integrates with Your Printer

Advanced Roland DG software delivers easy integration with print only technology.

The Roland DG Legacy

Make a safe investment with Roland DG’s world renowned quality and reliability.

Time-saving Windows Driver

Edit images in Adobe® Illustrator® or CorelDRAW® and output directly to the cutter.

User-friendly for Immediate Production

Plug in and start working immediately thanks to Roland DG’s easy to use interface.

Accurate Crop Mark Detection

Fast and accurate alignment to fit perfectly into your print-then-cut workflow.

Precise Angle Cutting

The overcut function gives you perfect, sharp corners when cutting thick material.

Intuitive Software Included

CutStudio included, letting you easily create designs and cut in a simple workflow.

GR2-640

Drive system

Digital control servo motor

Cutting mechanism

Media-moving method

Acceptable material size (*1)(*2)

Width:	50 mm to 1,782 mm (1.97 in. to 70.1 in.)
Thickness:	Thickness including backing paper is 0.8 mm (31.4 mil.) or less
Roll weight:	24 kg (52.9 lb.)

Maximum cutting area (width × length)

1,627 mm × 50,000 mm (64 in. × 1,968 in.)

Usable tools

CAMM-1 series blade (including blades for flatbed use)

Cutting speed

30 to 1,530 mm/s (1.19 to 60 in./s)

Blade force

5 - 600 gf

Mechanical resolution

0.006 mm/step (0.236 mil./step)

Software resolution

0.025 mm/step (0.98 mil./step)

Distance accuracy (*3)

Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater

Repeatability (*3)(*4)(*5)

0.1 mm (3.94 mil.) or less

Connectivity

Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
USB 2.0 (FULL SPEED compliant)
RS-232C

Replot memory

32 MB

Command system

HP-GL, HP-GL/2 compliant

Power requirements

AC 100 to 240 V ± 10%, 50/60 Hz

Power consumption

Approx. 110 W

Acoustic noise level

During operation	56 dB (A) or less
During standby	40 dB (A) or less

Dimensions (Width x Depth x Height)

1,982 mm × 756 mm × 1,127 mm (78.1 in. × 30 in. × 44.4 in.)

Weight

69 kg (153 lb.)

Packaging dimensions

2,200 mm × 395 mm × 880 mm (87 in. × 15.6 in. × 34.7 in.)

Packaging weight

97 kg (214 lb.)

Environment

Temperature: 15 to 30 °C (59 to 86 °F), humidity: 25 to 75 %RH (no condensation)

Accessories

USB cable, cutting pad, safe blade, dedicated stand, tweezers, user's manual, etc.

For media with a width exceeding 610 mm (24 in.): Length: 4,000 mm (157 in.)
For media with a width of 610 mm (24 in.) or less: Length: 8,000 mm (314 in.)

GR2-640

Drive system

Digital control servo motor

Cutting mechanism

Media-moving method

Acceptable material size (*1)(*2)

Width:	50 mm to 1,594 mm (1.97 in. to 62.7 in.)
Thickness:	Thickness including backing paper is 0.8 mm (31.4 mil.) or less
Roll weight:	20 kg (44.1 lb.)

Maximum cutting area (width × length)

1,372 mm × 50,000 mm (54 in. × 1,968 in.)

Usable tools

CAMM-1 series blade (including blades for flatbed use)

Cutting speed

30 to 1,530 mm/s (1.19 to 60 in./s)

Blade force

5 - 600 gf

Mechanical resolution

0.006 mm/step (0.236 mil./step)

Software resolution

0.025 mm/step (0.98 mil./step)

Distance accuracy (*3)

Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater

Repeatability (*3)(*4)(*5)

0.1 mm (3.94 mil.) or less

Connectivity

Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
USB 2.0 (FULL SPEED compliant)
RS-232C

Replot memory

32 MB

Command system

HP-GL, HP-GL/2 compliant

Power requirements

AC 100 to 240 V ± 10%, 50/60 Hz

Power consumption

Approx. 110 W

Acoustic noise level

During operation	56 dB (A) or less
During standby	40 dB (A) or less

Dimensions (Width x Depth x Height)

1,711 mm × 651 mm × 1,111 mm (68 in. × 25.7 in. × 44 in.)

Weight

60 kg (133 lb.)

Packaging dimensions

2,040 mm × 395 mm × 850 mm (81 in × 15.6 in × 33.5 in.)

Packaging weight

85 kg (188 lb.)

Environment

Temperature: 15 to 30 °C (59 to 86 °F), humidity: 25 to 75 %RH (no condensation)

Accessories

USB cable, cutting pad, safe blade, dedicated stand, tweezers, user's manual, etc.

For media with a width exceeding 610 mm (24 in.): Length: 4,000 mm (157 in.)
For media with a width of 610 mm (24 in.) or less: Length: 8,000 mm (314 in.)

Read less...

To contact Prytec Solutions about Large Format Vinyl Cutters 110 W | CAMM-1 GR2-640/540 use Get a quote.
