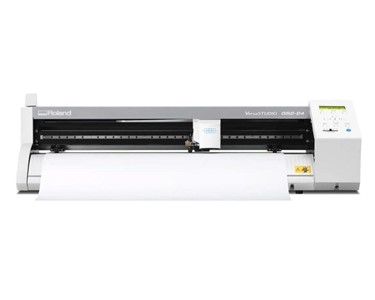

Desktop Vinyl Cutter 24 W | VersaSTUDIO GS2-24

Supplier: Prytec Solutions

Compact, powerful and easy to use, the GS2-24 desktop cutting plotter is perfect for starting your graphics business or bringing graphics production in-house.

Receive 1-3 days from order

With the GS2-24, you can create professional-quality graphics from a huge range of materials and take your business to the next level. With everything you need to get started, this solution from Roland DG is the only choice for serious entrepreneurs.

Features:

Intuitive and user-friendly operation
Increased power to easily cut hundreds of materials
Fast and accurate cut performance
Built to fit into your workflow

Create Without Limits

With 40% more cutting force than the previous model, you can cut the most intricate designs from a vast range of materials including:

Self-Adhesive Vinyl
Heat Transfer Vinyl
Specialist Materials
Magnetic Sheet
Papers and Cardboard
Window Frosting
Reflective Vinyl
Rubber Sheet

Pinpoint Accuracy

Produce premium quality results whether you're creating large-scale wall art, decorative T-shirt designs or small directional signage. The precision cutting of the GS2-24 allows you to accurately reproduce the tightest corners and thinnest lines.

Intricate designs and shapes
Small letters, numbers and symbols
Consistent results up to 25 m

Specifications:

VersaSTUDIO GS2-24

Drive system		Digital control servo motor
Cutting mechanism		Media-moving method
Acceptable material size	Width	50 - 700 mm (1.97 in. - 27.5 in.)
	Length	Roll material: no restriction Flat material: 100 mm (3.94 in.) or more
Maximum cutting area		584 mm (Width) × 25,000 mm (Length) (22.9 in. × 984 in.)
Usable tools		• CAMM-1 series blade (ZEC-U5032 / U5022 / U5025 / U3017) • Flat Bed blade (ZEC-U1715 / U3050 / U3075 / U3100) • Window film blade(ZEC-U5010)
Cutting speed		10 - 850 mm/s (0.39 - 33.4 in./s)
Blade force		30 - 500 gf
Mechanical resolution		0.0125 mm/step (0.49 mil./step)
Software resolution		0.025 mm/step (0.98 mil./step)
Distance accuracy*1		Error of less than ±0.2% of distance traveled or 0.1 mm (3.94 mil.), whichever is greater
Repeatability 1, 2		0.1 mm (3.9 mil) or less
Alignment accuracy for cutting printed material 1, 3		±1 mm (±39.4 mil.) or less for movement distance of 210 mm (8.3 in.) or less in material-feed direction and movement distance of 170 mm (6.7 in.) or less in width direction (Does not take influence of printer and material into account)
Connectivity		• Ethernet (automatic switching between 10BASE-T and 100BASE-TX) • USB 2.0 (FULL SPEED compliant)
Replot memory		2 MB
Command system		CAMM-GL?
Power supply		Dedicated AC adapter Input: 100 - 240 Vac, 50/60 Hz Output: 24 Vdc 2.7 A
Rated current		1.0 A
Power consumption		Approx. 24 W
Acoustic noise level	During operation	70 dB (A) or less
	During standby	40 dB (A) or less
Outer dimensions		860 mm (Width) × 319 mm (Depth) × 235 mm (Height) (33.9 in. × 12.6 in. × 9.3 in.)
Weight		13.5 kg (30 lb.)
Environment	Temperature	5 - 40 °C (41 to 104 °F)
	Humidity	20 - 80 %RH (no condensation)
Included items		Power cord, AC adapter, Blade, Blade holder, Roller base, USB cable, Alignment tool, Manuals

*1 According to material and cutting conditions as specified by Roland DG Corporation.
*2 • Excluding expansion/contraction of the media
• Length in sheet feed direction: Within 1600 mm (62.9 in.)
*3 According to measurement standards as specified by Roland DG Corporation.
• Software must be included Roland DG Corporation software.
• Assumes use of a laser or inkjet printer with a resolution of 720 dpi or greater.
• Excludes glossy and/or laminated material.
• Excludes effects of warped printing due to accuracy of printer or effects of expansion/contraction of material.
• May not be read correctly by the sensor depending on the printer ink (black) used.
