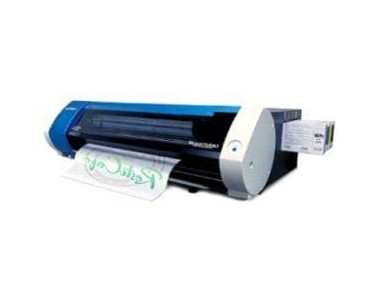

Textile Printer 10 to 150 mm/s | VersaSTUDIO BY-20

Supplier: Prytec Solutions

The all-new VersaSTUDIO BY-20 is the ultimate desktop direct-to-film printer and more.

Receive 1-3 days from order

The all-new VersaSTUDIO BY-20 is the ultimate desktop direct-to-film printer…and more. Simple to use, reliable and efficient, the BY-20 makes decorating apparel and accessories with vibrant, detailed graphics quick and easy – even for those with no prior printing experience. Plus, with the BY-20’s integrated contour-cutting functionality, you can also produce heat transfer graphics from PVC sheets – all with a single, affordable compact device.

The Roland DG BY-20 – a cutting-edge line of printer cutters designed to elevate your printing and graphics capabilities. These printers are meticulously enhanced to meet the demands of today's graphics providers. Elevate your business with the innovation and reliability of the Roland DG BY-20.

Specifications:

Printing Method		Piezo ink-jet method
Media	Width	5.91 to 20.2 in. (150 to 515 mm)
	Thickness	Maximum 39.3 mil (1.0 mm) with liner, for printing Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
	Roll outer diameter	Maximum 5.9 in. (150 mm)
	Roll weight	Maximum 13.2 lb. (6 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1)		Maximum 18.89 in. (480 mm)
Ink	Type	220-ml cartridge
	Colors	Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch)		Maximum 1,440 dpi
Cutting speed		0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
	Offset	0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
Media heating system (*3)	Print heater set temperature:	86 to 95 °F (30 to 35 °C)
	Dryer set temperature:	86 to 100.4 °F (30 to 38 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-240 Va.c. 50/60 Hz 2.1 A
Power consumption	During operation	Approx. 185 W
	Sleep mode	Approx. 27W
Acoustic noise level	During operation	62 dB (A) or less
	During standby	60 dB (A) or less
Dimensions (Width x Depth x Height)		42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight		137 lb. (62 kg)
Environment	During operation (*4)	Temperature: 68 to 82.4 °F (20 to 28 °C) Humidity: 40 to 80 % RH (no condensation)
	Not operating	Temperature: 41 to 104 °F (5 to 40 °C) Humidity: 20 to 80 % RH (no condensation)
Included items		Power cord, media holders, replacement blade for separating knife, User’s Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force.
The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment (Use in an operating environment within this range.)

To contact Prytec Solutions about Textile Printer 10 to 150 mm/s | VersaSTUDIO BY-20 use Get a quote.

Specifications:

Printing Method		Piezo ink-jet method
Media	Width	5.91 to 20.2 in. (150 to 515 mm)
	Thickness	Maximum 39.3 mil (1.0 mm) with liner, for printing Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
	Roll outer diameter	Maximum 5.9 in. (150 mm)
	Roll weight	Maximum 13.2 lb. (6 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1)		Maximum 18.89 in. (480 mm)
Ink	Type	220-ml cartridge
	Colors	Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch)		Maximum 1,440 dpi
Cutting speed		0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
	Offset	0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
Media heating system (*3)	Print heater set temperature:	86 to 95 °F (30 to 35 °C)
	Dryer set temperature:	86 to 100.4 °F (30 to 38 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-240 Va.c. 50/60 Hz 2.1 A
Power consumption	During operation	Approx. 185 W
	Sleep mode	Approx. 27W
Acoustic noise level	During operation	62 dB (A) or less
	During standby	60 dB (A) or less
Dimensions (Width x Depth x Height)		42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight		137 lb. (62 kg)
Environment	During operation (*4)	Temperature: 68 to 82.4 °F (20 to 28 °C) Humidity: 40 to 80 % RH (no condensation)
	Not operating	Temperature: 41 to 104 °F (5 to 40 °C) Humidity: 20 to 80 % RH (no condensation)
Included items		Power cord, media holders, replacement blade for separating knife, User’s Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force.
The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment (Use in an operating environment within this range.)
