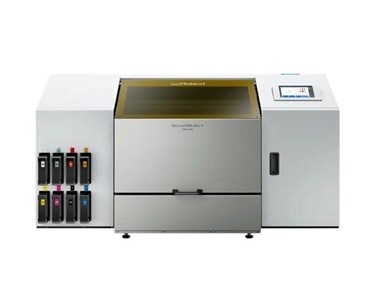

Flatbed Printers 204 mm | VersaOBJECTNEW MO Series Get latest price

Our advanced UV flatbed printer gives you the power to dominate a growing direct-print market through:

• High-Definition Print: Reproduce small letters, fine textures, gradations, and colour-matched graphics with ease.
• High Productivity: Do more with staggered printheads, powerful UV lamps, and an A2 or A3 print bed.
• Greater Flexibility: Print up to 204 mm, as standard and unlock cylindrical items with an optional attachment.
• Intuitive Interface: Now with touchscreen control and more powerful, easy-to-use VersaWorks software.

Specifications:

Model			MO-240			MO-180
Printing Method			Piezo ink-jet method
Attachable objects to be printed on	Width		Max. 640 mm (25.1 in.)			Max. 488 mm (19.2 in.)
	Length		Max. 488 mm (19.2 in.)			Max. 335 mm (13.1 in.)
	Thickness		Max. 204 mm (8 in.)			Max. 204 mm (8 in.)
	Weight		Max. 8 kg (17.6 lb.) (When using a vacuum table: max. 4 kg [8.8 lb.])
Printing width/printing length (width x length)			Max. 610 mm × 458 mm (24 in. × 18 in.)			Max. 458 mm × 305 mm (18 in. × 12 in.)
Ink	Type		ECO-UV (EUV5P) 750 ml pouch
	Colours		Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, Red) Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, Gloss, White, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red) Six colours (Cyan, Magenta, Yellow, Black, Gloss, White) and Primer Six colours (Cyan, Magenta, Yellow, Black, Gloss, White) Four colours (Cyan, Magenta, Yellow, Black)
Ink-curing unit			Built-in UV-LED lamp
Printing resolution (dots per inch)			Max. 1,200 dpi
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100 - 240 Va.c. 50/60 Hz 3.5A
Power consumption		During operation	Approx. 290 W
		Sleep mode	Approx. 70 W
Acoustic noise level		During operation	60 dB (A) or less
		During standby	49 dB (A) or less
Dimensions (width x depth x height)			1,601 mm × 1,267 mm × 760 mm (63.1 in. × 49.9 in. × 30.0 in.)			1,449 mm × 961 mm × 760 mm (57.1 in. × 37.9 in. × 30.0 in.)
Weight			211 kg (465.18 lb.)			174 kg (383.61 lb.)
Environment		During operation(*1)	Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation)
		Not operating	Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation)
Included Items			Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc.

1Operating environment (Use the machine in an operating environment within these ranges.)
