Featuring a stunning 0.47 load to weight ratio

Receive 1-3 days from order

this small yet powerful cobot is the perfect choice for all applications that do not require a large reach but still require sufficient payload and force, suchy as screwdriving, tightening, material removal tasks and more.

Main Technical Features:

8kg load
820mm reach
±0.03mm acc.
1.5 m/s TCP*
*Typ speed
Ø 150 mm ftpr.
IP54

Specification:

Payload – 8kg
Radius – 820mm
Repeatability – ±0.03mm
Axis – 6
IP rating – IP54
Temperature range – -10~50°C
Relative humidity – 5%–95% (non-condensing)
Typical power usage – 250W
Tool I/O connector – 12 pin
Tool I/O ports – 2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply – 24V / 2A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 150 mm
Weight – 17kg

What’s in the Box:

EC68-08

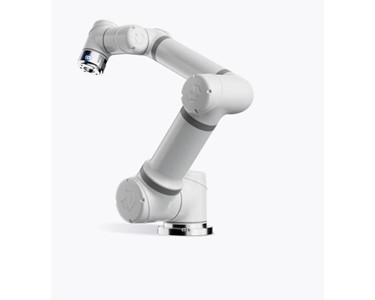

Elite Robots EC68-08 robotic arm (17kg weight; 940mm total cobot length; Ø150mm footprint). Rated IP54 for standard industrial applications. Supplied with a standard 5.5m connection cable (optional cable lengths: 1.5m; 3m; 8m; 10m).

Controller

Delivered with the compact AC/DC controller (505 x 246 x 447mm; 15kg) for seamless operation and integration with a variety of systems.

Teach Pendant

Includes the ERP200 teach pendant featuring an 8" resistive touch screen, IP40 rating, and 5.5m cable. Optional 3-mode enable key for improved operational safety.

To contact Elite Oceania Pty Ltd about Collaborative Robot EC Series - EC68-08 use Get a quote.

Main Technical Features:

8kg load
820mm reach
±0.03mm acc.
1.5 m/s TCP*
*Typ speed
Ø 150 mm ftpr.
IP54

Specification:

Payload – 8kg
Radius – 820mm
Repeatability – ±0.03mm
Axis – 6
IP rating – IP54
Temperature range – -10~50°C
Relative humidity – 5%–95% (non-condensing)
Typical power usage – 250W
Tool I/O connector – 12 pin
Tool I/O ports – 2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply – 24V / 2A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 150 mm
Weight – 17kg

What’s in the Box:

EC68-08

Controller

Delivered with the compact AC/DC controller (505 x 246 x 447mm; 15kg) for seamless operation and integration with a variety of systems.

Teach Pendant

Includes the ERP200 teach pendant featuring an 8" resistive touch screen, IP40 rating, and 5.5m cable. Optional 3-mode enable key for improved operational safety.
