The payload of 16 kg and the weight of 32.5 kg make EC616 both the strongest cobot and the one with the best load-to-weight ratio of the EC Series line-up.

Receive 1-3 days from order

It’s an ideal match for applications ranging from palletizing to machine tending and welding, as well as the perfect solution for industries such as semiconductors.

Main Technical Features:

16kg load
954mm reach
±0.03mm acc.
1.5 m/s TCP*
*Typ speed
Ø 200 mm ftpr.
IP54

Specification:

Payload – 16kg
Radius – 954mm
Repeatability – ±0.03mm
Axis – 6
IP rating – IP54
Temperature range – -10~50°C
Relative humidity – 5%–95% (non-condensing)
Typical power usage – 435W
Tool I/O connector – 12 pin
Tool I/O ports – 2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply – 24V / 2A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 200 mm
Weight – 32.5kg

What’s in the Box:

EC616

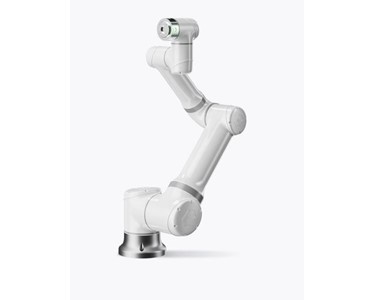

Elite Robots EC616 robotic arm (32.5kg weight; 1080mm total cobot length; Ø200mm footprint). Rated IP54 for standard operation. Includes standard 5.5m connection cable (optional cable lengths: 1.5m; 3m; 8m; 10m).

Controller

Delivered with the standard AC/DC controller (505 x 246 x 447mm; 15kg) for complete motion and process control.

Teach Pendant

Comes with the ERP200 teach pendant, IP40-rated, featuring an 8" touch screen, 5.5m cable, and a 3-mode enable key for safe and intuitive operation.

To contact Elite Oceania Pty Ltd about Collaborative Robot EC Series - EC616 use Get a quote.

It’s an ideal match for applications ranging from palletizing to machine tending and welding, as well as the perfect solution for industries such as semiconductors.

Main Technical Features:

16kg load
954mm reach
±0.03mm acc.
1.5 m/s TCP*
*Typ speed
Ø 200 mm ftpr.
IP54

Specification:

Payload – 16kg
Radius – 954mm
Repeatability – ±0.03mm
Axis – 6
IP rating – IP54
Temperature range – -10~50°C
Relative humidity – 5%–95% (non-condensing)
Typical power usage – 435W
Tool I/O connector – 12 pin
Tool I/O ports – 2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply – 24V / 2A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 200 mm
Weight – 32.5kg

What’s in the Box:

EC616

Controller

Delivered with the standard AC/DC controller (505 x 246 x 447mm; 15kg) for complete motion and process control.

Teach Pendant

Comes with the ERP200 teach pendant, IP40-rated, featuring an 8" touch screen, 5.5m cable, and a 3-mode enable key for safe and intuitive operation.
