Featuring both a long reach and a high payload, CS612 robotic arm strikes

Receive 1-3 days from order

the perfect balance between flexibility and power, and opens the door to an infinite range of applications, from machine tending to mobility solutions with AGVs.

Main Technical Features:

12kg load
1304mm reach
±0.05mm acc.
3.4 m/s TCP*
*Typ speed
Ø 190 mm ftpr.
IP65/68

Specification:

Payload – 12kg
Radius – 1304mm
Repeatability – ±0.05mm
Axis – 6
IP rating – IP65 (optional IP68)
Temperature range – -10~50°C
Relative humidity – <90% (non-condensing)
Typical power usage – 435W
Tool I/O connector – M8, 8pin
Tool I/O ports – 4 config. DI, 4 config. DO; 1 AI, 1 AO
Tool I/O power supply – 0 / 12V / 24V, 3A, 2A, 1A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 190 mm
Weight – 34 kg

What’s in the Box:

CS612

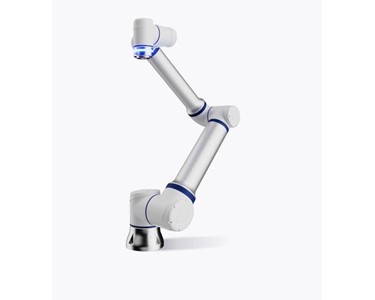

Elite Robots CS612 robotic arm (34kg weight; 1428mm total cobot length; Ø190mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m; 3m; 8m; 10m).

Controller

Delivered with the standard compact AC controller (505 x 462 x 257mm; 14kg) for complete operation control. The optional AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) is available for flexible system integration.

Teach Pendant

Comes with the standard IP54-rated ERP400 teach pendant featuring a 12.1" full-touch screen and 5.5m cable. The ERP400S teach pendant with 3-mode enable key is available as an enhanced safety option.

To contact Elite Oceania Pty Ltd about Collaborative Robot CS Series - CS612 use Get a quote.

the perfect balance between flexibility and power, and opens the door to an infinite range of applications, from machine tending to mobility solutions with AGVs.

Main Technical Features:

12kg load
1304mm reach
±0.05mm acc.
3.4 m/s TCP*
*Typ speed
Ø 190 mm ftpr.
IP65/68

Specification:

Payload – 12kg
Radius – 1304mm
Repeatability – ±0.05mm
Axis – 6
IP rating – IP65 (optional IP68)
Temperature range – -10~50°C
Relative humidity – <90% (non-condensing)
Typical power usage – 435W
Tool I/O connector – M8, 8pin
Tool I/O ports – 4 config. DI, 4 config. DO; 1 AI, 1 AO
Tool I/O power supply – 0 / 12V / 24V, 3A, 2A, 1A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 190 mm
Weight – 34 kg

What’s in the Box:

CS612

Controller

Teach Pendant

Comes with the standard IP54-rated ERP400 teach pendant featuring a 12.1" full-touch screen and 5.5m cable. The ERP400S teach pendant with 3-mode enable key is available as an enhanced safety option.

Read less...

To contact Elite Oceania Pty Ltd about Collaborative Robot CS Series - CS612 use Get a quote.
