Collaborative Robot CS Series - CS63 Get latest price

Read more...

To contact Elite Oceania Pty Ltd about Collaborative Robot CS Series - CS63 use Get a quote.

Optimal for table-top and soft-grip applications, and ideal for research & education, the CS63 robotic arm is your little big automation partner.

Main Technical Features:

• 3kg load
• 624mm reach
• ±0.02mm acc.
• 2.0 m/s TCP*
• *Typ speed
• Ø 128 mm ftpr.
• IP65/68

Specification:

• Payload - 3kg
• Radius - 624mm
• Repeatability - ±0.02mm
• Axis - 6
• IP rating - IP65 (optional IP68)
• Temperature range - -10~50?
• Relative humidity - <90% (non-condensing)
• Typical power usage - 185w
• Tool I/O connector - M8, 8pin
• Tool I/O ports - 4 config. DI, 4 config. DO; 1 AI, 1 AO
• Tool I/O power supply - 0 / 12V / 24V, 3A, 2A, 1A
• Tool I/O communication - RS485, Modbus RTU
• Footprint - Ø 128 mm
• Weight - 15 kg

What’s in the box

CS63

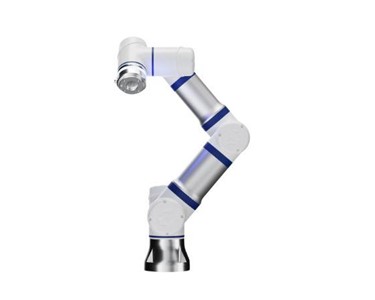

Elite Robots CS63 robotic arm (15kg weight; 821mm total cobot length; Ø128mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m; 3m; 8m; 10m).

Controller

By default, the cobot is delivered with the standard compact (505 x 462 x 257mm) and lightweight (14kg) AC controller to manage all cobot operations. The AC/DC OEM controller (495 x 200 x 170mm; 7.1 kg) is available as an option.

Teach Pendant

The cobot standard order includes the regular, IP54-rated ERP400 teach pendant, with a 12.1" full-touch screen and a 5.5m cable. The ERP400S teach pendant with 3-mode enable key for enhanced safety is available optional.
