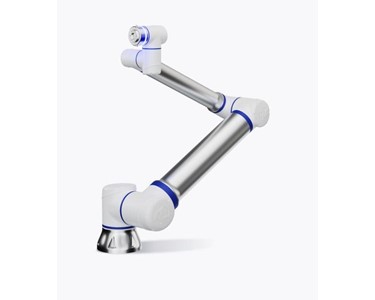

Collaborative Robot CS Series - CS620 Get latest price

Read more...

To contact Elite Oceania Pty Ltd about Collaborative Robot CS Series - CS620 use Get a quote.

Equipped with a dual 3A/5A tool connector for enhanced power, the CS620 features a 20 kg payload and the longest reach of all CS cobots.

Main Technical Features:

• 20kg load
• 1800mm reach
• ±0.1mm acc.
• 3.9 m/s TCP*
• *Typ speed
• Ø 240 mm ftpr.
• IP65/68

Specification:

• Payload – 20kg
• Radius – 1800mm
• Repeatability – ±0.1mm
• Axis – 6
• IP rating – IP65 (optional IP68)
• Temperature range – -10~50°C
• Relative humidity – <90% (non-condensing)
• Typical power usage – 625W
• Tool I/O connector – T1: M8, 8pin; T2: Ø 12.8mm, 4pin
• Tool I/O ports – 4 config. DI, 4 config. DO; 1 AI, 1 AO
• Tool I/O power supply – T1: 0 / 12V / 24V, 3A, 2A, 1A; T2: 24V, 5A
• Tool I/O communication – RS485, Modbus RTU
• Footprint – Ø 240 mm
• Weight – 60 kg

What’s in the Box:

CS620

Elite Robots CS620 robotic arm (60kg weight; 1960mm total cobot length; Ø240mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m; 3m; 8m; 10m).

Controller

Comes with the standard compact AC controller (505 x 462 x 257mm; 14kg) for robust control and reliability. The AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) is available as an optional upgrade for system integration flexibility.

Teach Pendant

Includes the standard IP54-rated ERP400 teach pendant featuring a 12.1" full-touch screen and 5.5m cable. The ERP400S teach pendant with 3-mode enable key is available as an enhanced safety option.

Read less...
