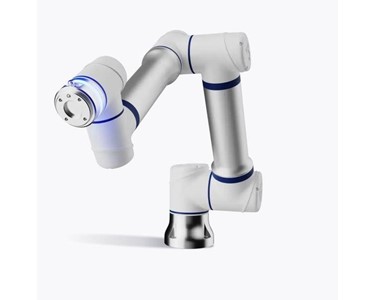

The CS66 robotic arm is ideal for simplifying a wide variety of processing tasks to the extreme.

Receive 1-3 days from order

Its ability to support a very large number of EoATs and other equipment, combined with unmatched ease of use, makes this cobot the must-have choice for the smoothest possible automation of machine tending, quality inspection, screw-driving, and more!

Main Technical Features:

6kg load
914mm reach
±0.03mm acc.
2.8 m/s TCP*
*Typ speed
Ø 150 mm ftpr.
IP65/68

Specification:

Payload – 6kg
Radius – 914mm
Repeatability – ±0.03mm
Axis – 6
IP rating – IP65 (optional IP68)
Temperature range – -10~50°C
Relative humidity – <90% (non-condensing)
Typical power usage – 250W
Tool I/O connector – M8, 8pin
Tool I/O ports – 4 config. DI, 4 config. DO; 1 AI, 1 AO
Tool I/O power supply – 0 / 12V / 24V, 3A, 2A, 1A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 150 mm
Weight – 20 kg

What’s in the Box:

CS66

Elite Robots CS66 robotic arm (20kg weight; 985mm total cobot length; Ø150mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m; 3m; 8m; 10m).

Controller

Delivered with the standard compact AC controller (505 x 462 x 257mm; 14kg) for seamless operation management. The AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) is available as an optional upgrade.

Teach Pendant

Includes the standard IP54-rated ERP400 teach pendant with a 12.1" full-touch screen and 5.5m cable. For enhanced safety, the ERP400S teach pendant with 3-mode enable key is available as an option

To contact Elite Oceania Pty Ltd about Collaborative Robot CS Series - CS66 use Get a quote.

Main Technical Features:

6kg load
914mm reach
±0.03mm acc.
2.8 m/s TCP*
*Typ speed
Ø 150 mm ftpr.
IP65/68

Specification:

Payload – 6kg
Radius – 914mm
Repeatability – ±0.03mm
Axis – 6
IP rating – IP65 (optional IP68)
Temperature range – -10~50°C
Relative humidity – <90% (non-condensing)
Typical power usage – 250W
Tool I/O connector – M8, 8pin
Tool I/O ports – 4 config. DI, 4 config. DO; 1 AI, 1 AO
Tool I/O power supply – 0 / 12V / 24V, 3A, 2A, 1A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 150 mm
Weight – 20 kg

What’s in the Box:

CS66

Controller

Delivered with the standard compact AC controller (505 x 462 x 257mm; 14kg) for seamless operation management. The AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) is available as an optional upgrade.

Teach Pendant

Includes the standard IP54-rated ERP400 teach pendant with a 12.1" full-touch screen and 5.5m cable. For enhanced safety, the ERP400S teach pendant with 3-mode enable key is available as an option

Read less...

To contact Elite Oceania Pty Ltd about Collaborative Robot CS Series - CS66 use Get a quote.
