Elite Robots' first released cobot continues to be true to Elite Robots' original mission: to simplify the lives of people and businesses for an ever-better future.

Receive 1-3 days from order

As Elite Robots’ first released cobot, the EC66 remains faithful to the brand’s mission — simplifying automation to improve the way people and businesses work. Compact, precise, and dependable, it’s ideal for handling, assembly, and testing tasks in diverse industries.

Main Technical Features:

6kg load
914mm reach
±0.03mm acc.
1.5 m/s TCP*
*Typ speed
Ø 150 mm ftpr.
IP54

Specification:

Payload – 6kg
Radius – 914mm
Repeatability – ±0.03mm
Axis – 6
IP rating – IP54
Temperature range – -10~50°C
Relative humidity – 5%–95% (non-condensing)
Typical power usage – 250W
Tool I/O connector – 12 pin
Tool I/O ports – 2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply – 24V / 2A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 150 mm
Weight – 17.5kg

What’s in the Box:

EC66

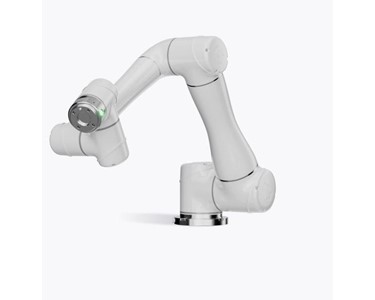

Elite Robots EC66 robotic arm (17.5kg weight; 985mm total cobot length; Ø150mm footprint). Rated IP54 for standard operation. Includes standard 5.5m connection cable (optional cable lengths available: 1.5m; 3m; 8m; 10m).

Controller

Supplied with the standard AC/DC controller (505 x 246 x 447mm; 15kg) supporting full I/O and multi-protocol communication, including Ethernet/IP, Modbus TCP/RTU, and Profinet.

Teach Pendant

Comes with the ERP200 teach pendant featuring an 8" resistive touch-screen (800 x 600 resolution), IP40 rating, and 5.5m cable. Includes a 3-mode enable key for safe, intuitive operation.

To contact Elite Oceania Pty Ltd about Collaborative Robot EC Series - EC66 use Get a quote.

Main Technical Features:

6kg load
914mm reach
±0.03mm acc.
1.5 m/s TCP*
*Typ speed
Ø 150 mm ftpr.
IP54

Specification:

Payload – 6kg
Radius – 914mm
Repeatability – ±0.03mm
Axis – 6
IP rating – IP54
Temperature range – -10~50°C
Relative humidity – 5%–95% (non-condensing)
Typical power usage – 250W
Tool I/O connector – 12 pin
Tool I/O ports – 2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply – 24V / 2A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 150 mm
Weight – 17.5kg

What’s in the Box:

EC66

Controller

Supplied with the standard AC/DC controller (505 x 246 x 447mm; 15kg) supporting full I/O and multi-protocol communication, including Ethernet/IP, Modbus TCP/RTU, and Profinet.

Teach Pendant

Comes with the ERP200 teach pendant featuring an 8" resistive touch-screen (800 x 600 resolution), IP40 rating, and 5.5m cable. Includes a 3-mode enable key for safe, intuitive operation.

Read less...

To contact Elite Oceania Pty Ltd about Collaborative Robot EC Series - EC66 use Get a quote.
