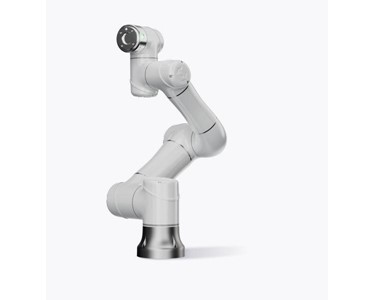

Elite Robots' entry-level EC63 cobot stands out for its repeatability, lightweight, and small footprint.

Receive 1-3 days from order

Install it anywhere effortlessly, mounted on a table or integrated into a line, and let it perform your assembly, handling, and other lightweight tasks.

Main Technical Features:

3kg load
624mm reach
±0.02mm acc.
1.5 m/s TCP*
*Typ speed
Ø 128 mm ftpr.
IP54

Specification:

Payload – 3kg
Radius – 624mm
Repeatability – ±0.02mm
Axis – 6
IP rating – IP54
Temperature range – -10~50°C
Relative humidity – 5%–95% (non-condensing)
Typical power usage – 185W
Tool I/O connector – 12 pin
Tool I/O ports – 2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply – 24V / 2A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 128 mm
Weight – 13kg

What’s in the Box:

EC63

Elite Robots EC63 robotic arm (13kg weight; 821mm total cobot length; Ø128mm footprint). Rated IP54 for standard operation. Includes a standard 5.5m connection cable (optional cable lengths available: 1.5m; 3m; 8m; 10m).

Controller

Supplied with the compact and lightweight AC controller (505 x 462 x 257mm; 14kg) for full operational management. Optional AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) available for flexible integration.

Teach Pendant

Comes with the IP54-rated ERP400 teach pendant featuring a 12.1" full-touch screen and 5.5m cable. The optional ERP400S teach pendant with a 3-mode enable key is available for enhanced safety.

To contact Elite Oceania Pty Ltd about Collaborative Robot EC Series - EC63 use Get a quote.

Install it anywhere effortlessly, mounted on a table or integrated into a line, and let it perform your assembly, handling, and other lightweight tasks.

Main Technical Features:

3kg load
624mm reach
±0.02mm acc.
1.5 m/s TCP*
*Typ speed
Ø 128 mm ftpr.
IP54

Specification:

Payload – 3kg
Radius – 624mm
Repeatability – ±0.02mm
Axis – 6
IP rating – IP54
Temperature range – -10~50°C
Relative humidity – 5%–95% (non-condensing)
Typical power usage – 185W
Tool I/O connector – 12 pin
Tool I/O ports – 2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply – 24V / 2A
Tool I/O communication – RS485, Modbus RTU
Footprint – Ø 128 mm
Weight – 13kg

What’s in the Box:

EC63

Controller

Teach Pendant

Comes with the IP54-rated ERP400 teach pendant featuring a 12.1" full-touch screen and 5.5m cable. The optional ERP400S teach pendant with a 3-mode enable key is available for enhanced safety.
