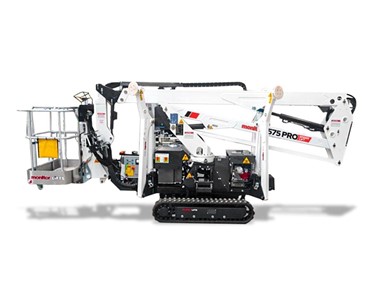

The Monitor 1575 PRO Spider Lift is an extremely compact spider lift for the most difficult applications. The track system expands out for extra stability and stands taller for extra ground clearance. When retracted, it reduces to only 780 mm wide and lowers the machine to 1909 mm height for very narrow access.

Aside from its capacity of 200 kg, the basket quickly and simply detaches with only one pin for accessing very tight locations. The basket can then easily be rolled along by one person on its own castor wheels.

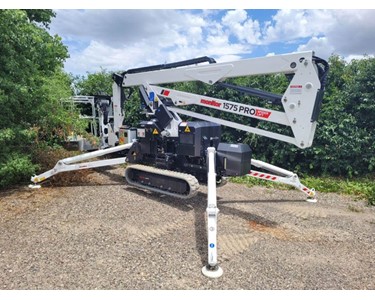

Uniquely, the dog-leg shaped stabilizers provide a huge amount of travel for setting up on very uneven terrain. The Monitor 1575 PRO is also equipped with a 14 hp water-cooled twin cylinder Kubota diesel or petrol engine, auto-levelling, platform rotation, ed drive, and remote radio control and stabilization.

Features

•2 Speed Drive

•2-Man Platform

•240 Volt Electric System

•240 Volt Outlet in Platform

•Air & Water Outlet in Platform

•Auto-Level Stabilizer Legs

•Basket Load Control

•Electric & Air Outlets in Basket (Air Optional)

•Electric Emergency Lowering System (Optional)

•Expandable Crawler Tracks

•Fly Jib

•GPS geolocation

•Honda Petrol Engine

•Hydraulic Controls

•Kubota Diesel Engine

•Non-Marking Rubber Tracks

•Platform Rotation (Optional)

•Radio Control Drive (Optional)

Specifications:

Max. Working Height:

15.00 m

Max. Working Reach:

8.50 m

Capacity:

200 kg

Chassis Type:

Crawler Tracks

Hydraulic Fly Boom:

Yes

Platform Rotation:

Yes

Weight/Outreach Limited:

Yes

Turret Rotation:

360°

Outrigger Stabilisers:

Yes

Min. Transport Length:

4.25 m

Min. Transport Width:

0.78 m

Min. Transport Height:

1.91 m

Power:

Kubota 14 Hp Diesel, 240v Electric or Batteries

Weight:

2,140 kg
