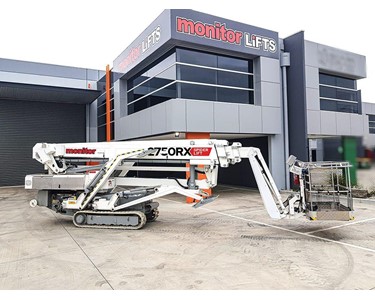

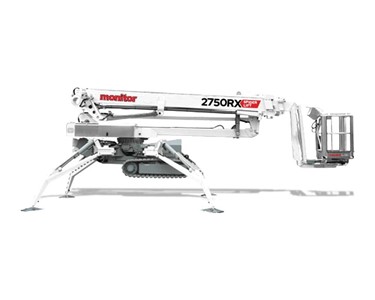

Spider Lifts 20 hp Diesel | Monitor 2750RX Get latest price

Read more...

To contact Monitor about Spider Lifts 20 hp Diesel | Monitor 2750RX use Get a quote.

It offers exceptional up and over outreach capability. This feature is ideal for work in confined and congested areas. The increased capacity of 250kg also adds to its heavy-duty versatility. This Spider Lift is the first choice for tougher commercial applications.

At an incredibly narrow width of only 1.1 m, the 2750RX is perfectly suited to indoor applications. Weighing only 5.3 t, it is safe to use on load sensitive flooring. Non-marking rubber tracks and a light footprint ensure there is no damage on good surfaces.

Features

•2 Speed Drive

•2-Man Platform

•240 Volt Battery System

•240 Volt Battery System (Optional)

•240 Volt Outlet in Platform

•Air & Water Outlet in Platform

•Auto-Level Stabilizer Legs

•Basket Load Control

•Crawler Tracks

•Electric & Air Outlets in Basket (Air Optional)

•Electric Controls

•Emergency Lowering System

•Expandable Crawler Tracks (Optional)

•Fly Jib

•Fully Radio Control Operation (Optional)

•Hydraulic Hoses Routed inside booms

•Non-Marking Rubber Tracks

•Platform Rotation

•Radio Control Drive

Specifications:

Max. Working Height:

27.50 m

Max. Working Reach:

15.50 m

Capacity:

250 kg

Chassis Type:

Crawler Tracks

Hydraulic Fly Boom:

Yes

Platform Rotation:

Yes

Weight/Outreach Limited:

Yes

Turret Rotation:

710°

Outrigger Stabilisers:

Yes

Min. Transport Length:

6.59 m

Min. Transport Width:

1.10 m

Min. Transport Height:

2.19 m

Power:

Kubota 20 hp Dielsel & Battery System

Weight:

5,315 kg
