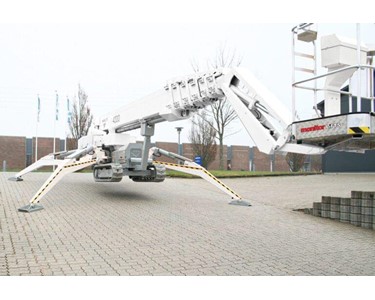

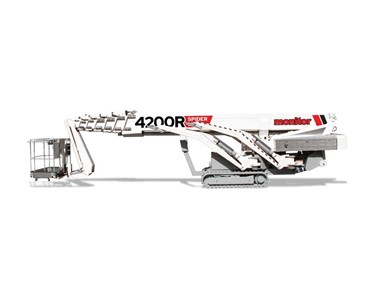

The Monitor 4200R Spider Lift has a huge 42 m working height and a horizontal outreach of 15m. With a weight of only 6.9 t, this Spider Lift provides an enormous amount of working envelope for operating in tight access locations or on load sensitive flooring.

The strong all-steel boom sections provide a stable and comfortable platform at 42 m off the ground. With stowed dimensions of only 8.3 m long with the basket removed, and
1.35 m wide with the tracks retracted, the Monitor 4200R is an amazingly compact machine.

The strong steel booms provide a stable ride even at such tall heights, and coupled with the high-quality design and componentry used in this magnificent machine ensures a very long and reliable working life. Even though this is such a tall machine, uniquely the operations are very simple, as the Omme controls and functions are virtually identical across the whole range.

Features

•2 Speed Drive

•2-Man Platform

•240 Volt Battery System

•240 Volt Battery System (Optional)

•240 Volt Outlet in Platform

•Air & Water Outlet in Platform (Optional)

•Auto-Level Stabilizer Legs

•Basket Load Control

•Crawler Tracks

•Electric & Air Outlets in Basket (Air Optional)

•Electric Controls

•Electric Emergency Lowering System

•Expandable Crawler Tracks

•Fly Jib

•Fully Radio Control Operation (Optional)

•Hydraulic Hoses Routed inside booms

•Kubota Diesel Engine

•Platform Rotation

•Radio Control Drive

Specifications:

Max. Working Height:

42.00 m

Max. Working Reach:

15.20 m

Capacity:

230 kg

Chassis Type:

Crawler Tracks

Hydraulic Fly Boom:

Yes

Platform Rotation:

Yes

Weight/Outreach Limited:

Yes

Turret Rotation:

710°

Outrigger Stabilisers:

Yes

Min. Transport Length:

8.30 m

Min. Transport Width:

1.35 m

Min. Transport Height:

1.99 m

Power:

Kubota 20 hp Diesel & Batteries

Weight:

6,900 kg
