Spider Lifts 20 hp Dielsel | Monitor 2750R Get latest price

Read more...

To contact Monitor about Spider Lifts 20 hp Dielsel | Monitor 2750R use Get a quote.

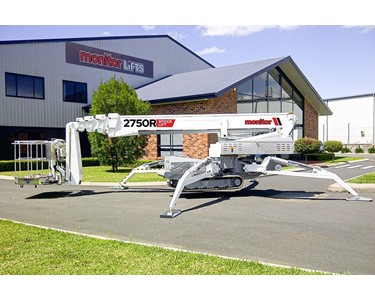

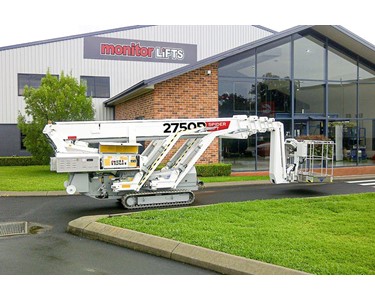

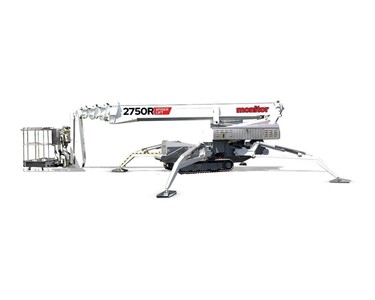

The Monitor 2750R Spider Lift‘s non-marking tracks are very gentle on sensitive flooring, and the radio-control drive provides ease of maneuvering in tight areas. With a stowed width of only 1.1 m, the Omme is perfect for driving down narrow paths and through small gate openings.

At only 3,725 kg in weight, this 27 metre spider lift can easily be transported and even craned into difficult locations. (Lifting points and procedures are standard with all Monitor Spider Lifts.) With a huge amount of travel in its dual position stabiliser legs, allowing it to be set up on the most difficult areas, including sloping or very uneven terrain.

Features

•2-Man Platform

•240 Volt Battery System

•240 Volt Battery System (Optional)

•240 Volt Outlet in Platform

•Air & Water Outlet in Platform

•Auto-Level Stabilizer Legs

•Basket Load Control

•Crawler Tracks

•Electric & Air Outlets in Basket (Air Optional)

•Electric Controls

•Emergency Lowering System

•Expandable Crawler Tracks (Optional)

•Fly Jib

•Fully Radio Control Operation (Optional)

•Hydraulic Hoses Routed inside booms

•Non-Marking Rubber Tracks

•Platform Rotation

•Radio Control Drive

Specifications:

Max. Working Height:

27.20 m

Max. Working Reach:

12.60 m

Capacity:

200 kg

Chassis Type:

Crawler Tracks

Hydraulic Fly Boom:

Yes

Platform Rotation:

Yes

Weight/Outreach Limited:

Yes

Turret Rotation:

710°

Outrigger Stabilisers:

Yes

Min. Transport Length:

6.63 m

Min. Transport Width:

0.89 m

Min. Transport Height:

1.99 m

Power:

Kubota 20 hp Dielsel & Battery System

Weight:

3,725 kg
