Trailer Mounted Lift 200 kg | Monitor 2300EX Get latest price

Read more...

To contact Monitor about Trailer Mounted Lift 200 kg | Monitor 2300EX use Get a quote.

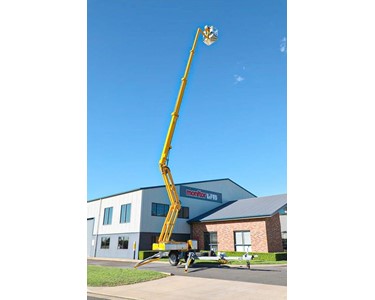

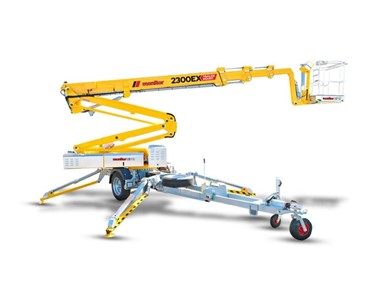

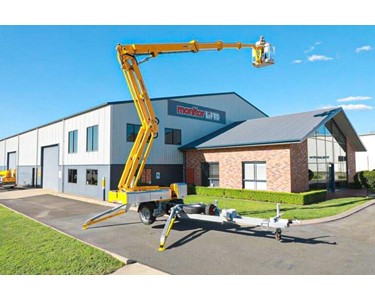

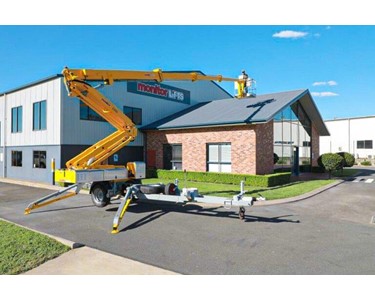

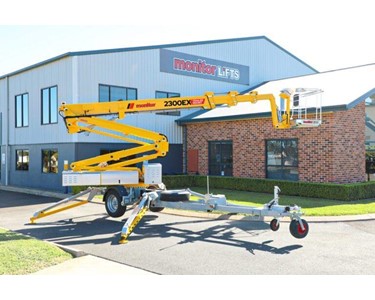

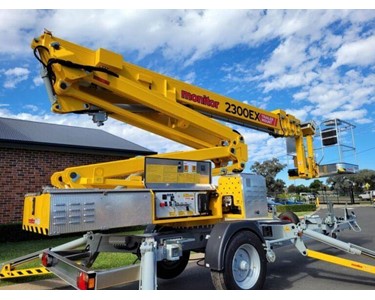

The Monitor 2300EX Trailer Mounted Lift is a strong and stable knuckle boom trailer mounted lift, which makes it perfect for transport. Weighing in at 3330 kg with 23 m height, and 12.7 m outreach, the Monitor 2300EX provides up and over reach without tail swing. Powered by a Honda engine with an option of hybrid (batteries).

Equipped with hydraulic propulsion, this unit can be maneuvered into position without being attached to a vehicle. Its turntable basket has a MRC of 200 kg, so it’s capable of holding up to 2 people. The Monitor 2300EX’s unique double-pantograph design provides a very compact stowed dimension.

Features

• 2-Man Platform

• 240 Volt Outlet in Platform

• Air & Water Outlet in Platform (Optional)

• Basket Load Control

• Electric Emergency Lowering System (Optional)

• Emergency Lowering System

• Fly Jib

• Honda Petrol Engine (Optional)

• Hydraulic Controls

• Hydraulic Hoses Routed inside booms

• Platform Rotation

Specifications:

Max. Working Height:

22.60 m

Max. Working Reach:

20.60 m

Max. Platform Height:

12.70 m

Capacity:

200 kg

Chassis Type:

Trailer

Hydraulic Fly Boom:

No

Weight/Outreach Limited:

Yes

Turret Rotation:

400°

Outrigger Stabilisers:

Yes

Min. Transport Length:

1.99 m

Min. Transport Width:

7.32 m

Min. Transport Height:

1.70 m

Weight:

3,330 kg
