Haulotte Trailer Mounted Boom Lift HTA13-19 ...

Haulotte - Trailer Mounted Boom Lift HTA13-19 P | 227 kg

Supplier: United Forklift and Access Solutions

Trailer Mounted Boom Lift HTA13-19 P | 227 kg

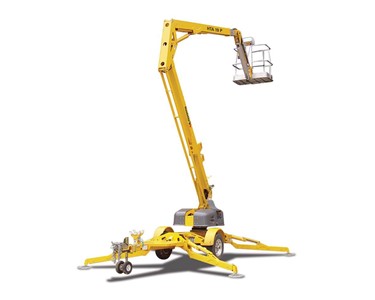

The Haulotte HTA13-19 P trailer mounted boom is an electric powered, compact, and lightweight elevated work platform, which allows easy transport to site.

Receive 1-3 days from order

Automatic levelling
Hydraulic outriggers
Easy to use controls
Self-levelling platform

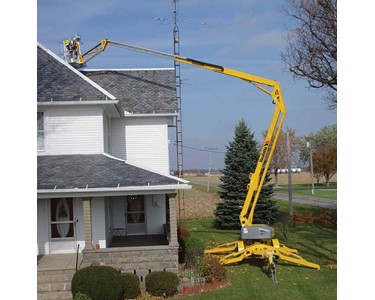

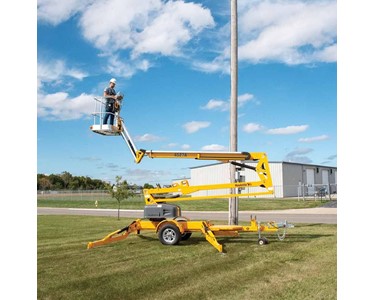

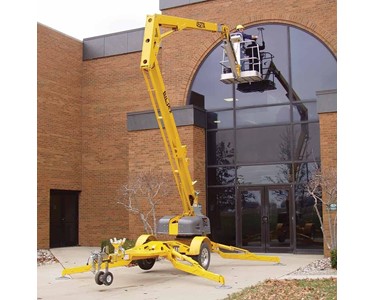

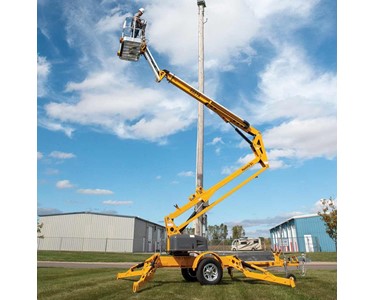

The cherry picker offers a platform height from 10.90 to 16.84 metres and a lift capacity of 227kg. Built-in hydraulic outriggers stabilise the boom and include a smart automatic platform levelling function for optimal performance and safety. The horizontal outreach of 5.31 – 8.33 metres also provides greater versatility to access restricted areas. With easy-to-use controls and a handy electric socket located on the platform for power tools, this cherry picker is ideal for maintenance, installation and tree pruning applications.

Specifications:

	HTA13 P	HTA16 P	HTA19 P
Working height	12.73 m	15.40 m	18.67 m
Platform height	10.90 m	13.72 m	18.84 m
Horizontal outreach (from center line)	8.86 m	8.23 m	10.19 m
Horizontal outreach (from edge of footpad)	5.31 m	6.40 m	8.33 m
Up and over height	5.79 m	6.33 m	7.04 m
Lift capacity	227 kg	227 kg	227 kg
Length – stowed	4.96 m	5.94 m	6.99 m
Width – stowed	1.67 m	1.67 m	1.70 m
Height – stowed	1.96 m	1.96 m	1.98 m
Platform size	1.22 x 0.76 m	1.22 x 0.76 m	1.22 x 0.76 m
Widest point	3.60 m	4.19 m	4.47 m
Widest point	3.40 m	4.11 m	4.57 m
Turntable rotation	350 ° non-continuous	350 ° non-continuous	350 ° non-continuous
Jib – length	1.30 m	1.30 m	1.30 m
Jib – vertical motion	150 ° (+ 70 / – 80)	150 ° (+ 70 / – 80)	150 ° (+ 70 / – 80)
Tow speed rating	–	–	–
Levelling capability	12.5 °	12.5 °	12.5 °
Tyre size	ST 225 / 75 D15	ST 225 / 75 R15	ST 225 / 75 R15
Power source	4 x 6 V 245 Ah	4 x 6 V 245 Ah	4 x 6 V 245 Ah
Tongue weight (no options)	111 kg	132 kg	152 kg
Weight (no options)	1542 kg	1905 kg	2,177 kg

Standard Equipment

Hydraulic Outriggers

Tilt alarm / sensor

Hour meter and battery condition indicator

Automatic levelling system and self-levelling platform available

110V GFI protected outlet to platform

Easy to use controls

Air and water line to platform

Inboard 25-amp charger

Integrated forklift pockets

Hydraulic surge brakes (trailer)

Options & Accessories

Reflective tape

240 Volt power outlet

1kg fire extinguisher

Lockable battery isolator switch

To contact United Forklift and Access Solutions about Haulotte Trailer Mounted Boom Lift HTA13-19 P | 227 kg use Get a quote.

Automatic levelling
Hydraulic outriggers
Easy to use controls
Self-levelling platform

Specifications:

	HTA13 P	HTA16 P	HTA19 P
Working height	12.73 m	15.40 m	18.67 m
Platform height	10.90 m	13.72 m	18.84 m
Horizontal outreach (from center line)	8.86 m	8.23 m	10.19 m
Horizontal outreach (from edge of footpad)	5.31 m	6.40 m	8.33 m
Up and over height	5.79 m	6.33 m	7.04 m
Lift capacity	227 kg	227 kg	227 kg
Length – stowed	4.96 m	5.94 m	6.99 m
Width – stowed	1.67 m	1.67 m	1.70 m
Height – stowed	1.96 m	1.96 m	1.98 m
Platform size	1.22 x 0.76 m	1.22 x 0.76 m	1.22 x 0.76 m
Widest point	3.60 m	4.19 m	4.47 m
Widest point	3.40 m	4.11 m	4.57 m
Turntable rotation	350 ° non-continuous	350 ° non-continuous	350 ° non-continuous
Jib – length	1.30 m	1.30 m	1.30 m
Jib – vertical motion	150 ° (+ 70 / – 80)	150 ° (+ 70 / – 80)	150 ° (+ 70 / – 80)
Tow speed rating	–	–	–
Levelling capability	12.5 °	12.5 °	12.5 °
Tyre size	ST 225 / 75 D15	ST 225 / 75 R15	ST 225 / 75 R15
Power source	4 x 6 V 245 Ah	4 x 6 V 245 Ah	4 x 6 V 245 Ah
Tongue weight (no options)	111 kg	132 kg	152 kg
Weight (no options)	1542 kg	1905 kg	2,177 kg

Standard Equipment

Hydraulic Outriggers

Tilt alarm / sensor

Hour meter and battery condition indicator

Automatic levelling system and self-levelling platform available

110V GFI protected outlet to platform

Easy to use controls

Air and water line to platform

Inboard 25-amp charger

Integrated forklift pockets

Hydraulic surge brakes (trailer)

Options & Accessories

Reflective tape

240 Volt power outlet

1kg fire extinguisher

Lockable battery isolator switch

Read less...

To contact United Forklift and Access Solutions about Haulotte Trailer Mounted Boom Lift HTA13-19 P | 227 kg use Get a quote.
