Haulotte Electric Scissor Lift Compact ...

Haulotte - Electric Scissor Lift Compact 10-12-14 | 8.0 m - 11.

Supplier: United Forklift and Access Solutions

Electric Scissor Lift Compact 10-12-14 | 8.0 m - 11.

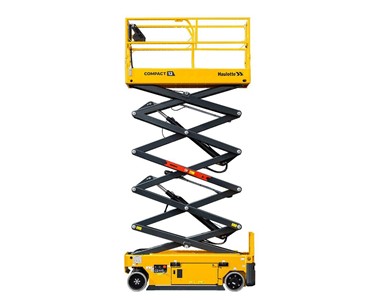

The Haulotte Compact 10, 12 and 14 are reliable, high performance scissor lifts that provide a range of features that are unmatched in their class.

Video for Haulotte Electric Scissor Lift Compact 10-12-14 | 8.0 m - 11.

Receive 1-3 days from order

Drivable at full height
Spacious extendable platform
Stable, reliable access
High lift capacities

The Haulotte Compact 10, 12 and 14 deliver reliable, high-performance access for indoor and outdoor work, with lift heights from 10 to 14 metres. Designed for durability and productivity, they feature spacious platforms (extendable up to 3.32m), folding guardrails, and smart options like working lights and power to platform.

With lift capacities up to 450kg and the ability to drive at full height, these scissor lifts save time and boost efficiency—perfect for maintenance, electrical work, signage, and more.

Specifications:

	Compact 10	Compact 12	Compact 14
Working height	10.0 m	11.75 m	13.75 m
Platform height	8.0 m	9.75 m	11.75 m
Max. drive working height	8.0 m	9.75 m	11.75 m
Lift capacity – inside	450 kg	320 kg	320 kg
Lift capacity – outside	450 kg	320 kg	N/A
Lift capacity on the extension deck	120 kg	120 kg	120 kg
Platform length – outside	2.40 m	2.40 m	2.40 m
Platform length – extended	3.32 m	3.32 m	3.32 m
Length – extension	0.92 m	0.92 m	0.92 m
Platform width – outside	1.17 m	1.17 m	1.17 m
Height – stowed	2.35 m	2.47 m	2.72 m
Guardrails lowered	1.65 m	1.77 m	2.02 m
Overall width	1.20 m	1.20 m	1.20 m
Length	2.50 m	2.50 m	1.86 m
Ground clearance – deployed potholes	2.0 cm	2.0 cm	2.0 cm
Drive speed	0.7 / 1.5 / 4.2 km /h	0.7 / 1.5 / 4.2 km /h	0.7 / 1.5 / 4.2 km /h
Gradeability	25 %	25 %	25 %
Tilt (longitudinal / lateral)	3.5 ° / 1.5 °	3.5 ° / 1.5 °	3.5 ° / 1.5 °
Turning radius – outside	1.83 m	1.83 m	1.83 m
Non-marking tyres	15 x 5	15 x 5	15 x 5
Batteries	24 V – 225 Ah (C20)	24 V – 225 Ah (C20)	24 V – 225 Ah (C20)
Hydraulic system capacity	10 L	14 L	14 L
Weight	2490 kg	2940 kg	3070 kg

Standard Equipment

Haulotte Activ’Energy Management: Smart CAN charger

27A multi voltage charger

Battery access with swing out tray

Battery level indicator

Haulotte Activ’Screen (battery charge information, hour meter, service alerts & failures in code or in text…)

Lateral & longitudinal forklift pockets

Foldable guardrails

Front platform extension

AC motors

Mobile upper control box

2 drive speeds selector

Manual emergency descent

Mobile pothole guards

MyHaulotte multi-services portal access

2 front steering wheels, 2 rear drive wheels

Solid non marking tires

Motion alarm

Electric brake release system

Drop bar entry

Options & Accessories

Haulotte Activ’Energy Management: automatic or manual battery water filling systems

AGM maintenance-free batteries

Secondary guarding system

Telematics solutions

Pipe cradle

Swing gate entry

Additional protection of upper & lower control box

Basket plug (110 / 230 V)

Working light

Flashing light (single, dual or 360°)

Biodegradable hydraulic oil

Cold weather hydraulic oil

To contact United Forklift and Access Solutions about Haulotte Electric Scissor Lift Compact 10-12-14 | 8.0 m - 11. use Get a quote.

Drivable at full height
Spacious extendable platform
Stable, reliable access
High lift capacities

With lift capacities up to 450kg and the ability to drive at full height, these scissor lifts save time and boost efficiency—perfect for maintenance, electrical work, signage, and more.

Specifications:

	Compact 10	Compact 12	Compact 14
Working height	10.0 m	11.75 m	13.75 m
Platform height	8.0 m	9.75 m	11.75 m
Max. drive working height	8.0 m	9.75 m	11.75 m
Lift capacity – inside	450 kg	320 kg	320 kg
Lift capacity – outside	450 kg	320 kg	N/A
Lift capacity on the extension deck	120 kg	120 kg	120 kg
Platform length – outside	2.40 m	2.40 m	2.40 m
Platform length – extended	3.32 m	3.32 m	3.32 m
Length – extension	0.92 m	0.92 m	0.92 m
Platform width – outside	1.17 m	1.17 m	1.17 m
Height – stowed	2.35 m	2.47 m	2.72 m
Guardrails lowered	1.65 m	1.77 m	2.02 m
Overall width	1.20 m	1.20 m	1.20 m
Length	2.50 m	2.50 m	1.86 m
Ground clearance – deployed potholes	2.0 cm	2.0 cm	2.0 cm
Drive speed	0.7 / 1.5 / 4.2 km /h	0.7 / 1.5 / 4.2 km /h	0.7 / 1.5 / 4.2 km /h
Gradeability	25 %	25 %	25 %
Tilt (longitudinal / lateral)	3.5 ° / 1.5 °	3.5 ° / 1.5 °	3.5 ° / 1.5 °
Turning radius – outside	1.83 m	1.83 m	1.83 m
Non-marking tyres	15 x 5	15 x 5	15 x 5
Batteries	24 V – 225 Ah (C20)	24 V – 225 Ah (C20)	24 V – 225 Ah (C20)
Hydraulic system capacity	10 L	14 L	14 L
Weight	2490 kg	2940 kg	3070 kg

Standard Equipment

Haulotte Activ’Energy Management: Smart CAN charger

27A multi voltage charger

Battery access with swing out tray

Battery level indicator

Haulotte Activ’Screen (battery charge information, hour meter, service alerts & failures in code or in text…)

Lateral & longitudinal forklift pockets

Foldable guardrails

Front platform extension

AC motors

Mobile upper control box

2 drive speeds selector

Manual emergency descent

Mobile pothole guards

MyHaulotte multi-services portal access

2 front steering wheels, 2 rear drive wheels

Solid non marking tires

Motion alarm

Electric brake release system

Drop bar entry

Options & Accessories

Haulotte Activ’Energy Management: automatic or manual battery water filling systems

AGM maintenance-free batteries

Secondary guarding system

Telematics solutions

Pipe cradle

Swing gate entry

Additional protection of upper & lower control box

Basket plug (110 / 230 V)

Working light

Flashing light (single, dual or 360°)

Biodegradable hydraulic oil

Cold weather hydraulic oil

Read less...

To contact United Forklift and Access Solutions about Haulotte Electric Scissor Lift Compact 10-12-14 | 8.0 m - 11. use Get a quote.

Haulotte-Compact-10-12-14-Brochure(1.89MB)
