Haulotte - Electric Scissor Lift Optimum | 5.77 m

Supplier: United Forklift and Access Solutions

Electric Scissor Lift Optimum | 5.77 m

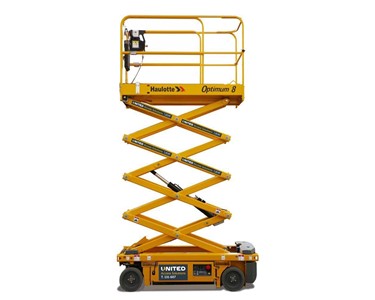

The Haulotte Optimum 8 electric scissor lift is an ultra-compact scissor lift that delivers exceptional performance and productivity.

Video for Haulotte Electric Scissor Lift Optimum | 5.77 m

Receive 1-3 days from order

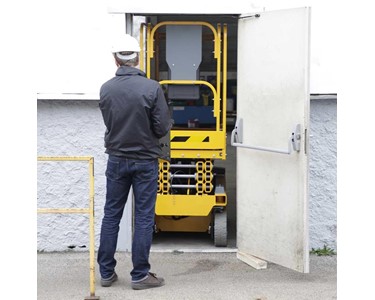

Compact size allowing entry through standard doorways
Smooth proportional movements and a very tight turning circle
5km/h forward speed.
Non-marking tyres

The Haulotte Optimum 8 is an ultra-compact electric scissor lift designed for exceptional manoeuvrability and performance. Its AC motor delivers smooth, proportional movements, while a 1.50 m turning radius ensures easy navigation in tight spaces.

With a narrow width for doorway access, non-marking tyres for indoor use, and durable weather-resistant components, it’s built for versatility. Smart diagnostics, low-maintenance brushless motors, and robust protection features make it reliable for indoor and outdoor tasks across multiple industries.

Specifications:

	Optimum 8
Working height	7.77 m
Platform height	5.77 m
Lift capacity	230 kg
Platform length – outside	1.72 m
Platform length – extended	2.58 m
Length – extension	0.86 m
Platform width – outside	0.74 m
Height – stowed	1.98 m
Overall width	0.79 m
Length	1.9 m
Wheelbase	1.38 m
Ground clearance – Centre	8.7 cm
Ground clearance – Deployed potholes	2 cm
Drive speed	0.5 – 4.5 km/h
Driveable at full height up to	5.77 m
Gradeability	25 %
Tilt	1.5 ° – 3 °
Lift / lower speed	20 s / 29 s
Turning radius – outside	1.50 m
Non-marking tires	12.5 x 4.13

Standard Equipment

24 V electric drive Brushless AC motors

24 V – 105 Ah C5 batteries

Battery charge indicator

Battery level indicator on upper and lower control boxes

Haulotte Activ’Screen (battery charge, hour meter, service alert and more)

Two swing out trays

Lateral forklifting pockets

Electric or manual break release system

Lifting and stowage points

Non marking tires

Options & Accessories

240 Volt power outlet

Lockable battery isolator switch

1 kg fire extinguisher

Reflective tape

To contact United Forklift and Access Solutions about Haulotte Electric Scissor Lift Optimum | 5.77 m use Get a quote.

Compact size allowing entry through standard doorways
Smooth proportional movements and a very tight turning circle
5km/h forward speed.
Non-marking tyres

Specifications:

	Optimum 8
Working height	7.77 m
Platform height	5.77 m
Lift capacity	230 kg
Platform length – outside	1.72 m
Platform length – extended	2.58 m
Length – extension	0.86 m
Platform width – outside	0.74 m
Height – stowed	1.98 m
Overall width	0.79 m
Length	1.9 m
Wheelbase	1.38 m
Ground clearance – Centre	8.7 cm
Ground clearance – Deployed potholes	2 cm
Drive speed	0.5 – 4.5 km/h
Driveable at full height up to	5.77 m
Gradeability	25 %
Tilt	1.5 ° – 3 °
Lift / lower speed	20 s / 29 s
Turning radius – outside	1.50 m
Non-marking tires	12.5 x 4.13

Standard Equipment

24 V electric drive Brushless AC motors

24 V – 105 Ah C5 batteries

Battery charge indicator

Battery level indicator on upper and lower control boxes

Haulotte Activ’Screen (battery charge, hour meter, service alert and more)

Two swing out trays

Lateral forklifting pockets

Electric or manual break release system

Lifting and stowage points

Non marking tires

Options & Accessories

240 Volt power outlet

Lockable battery isolator switch

1 kg fire extinguisher

Reflective tape

Read less...

To contact United Forklift and Access Solutions about Haulotte Electric Scissor Lift Optimum | 5.77 m use Get a quote.
