Elevah Stock Picker E5 Move Picking | 200 ...

Elevah - Stock Picker E5 Move Picking | 200 kg

Supplier: United Forklift and Access Solutions

Stock Picker E5 Move Picking | 200 kg

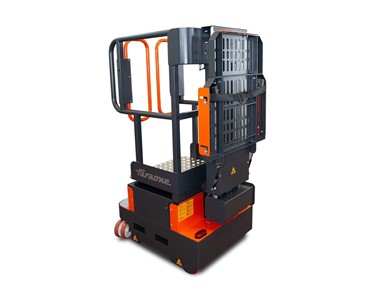

The Elevah E5 move picking is a compact, safe, and comfortable picker, suitable for high-paced stock picking applications.

Video for Elevah Stock Picker E5 Move Picking | 200 kg

Receive 1-3 days from order

Impressive 5.15 m working height
Spacious work platform
Compact width of 700 mm
Exceptional steering and manoeuvrability

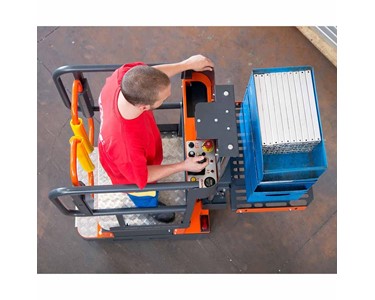

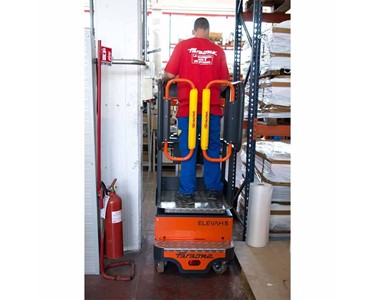

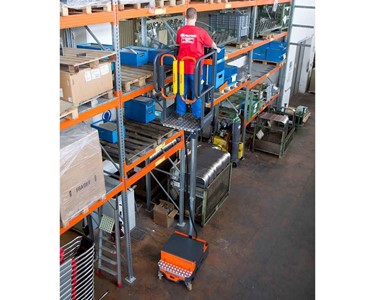

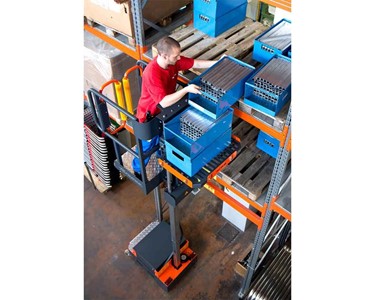

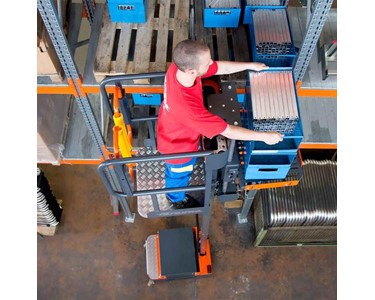

The Elevah E5 is a compact, safe stock picker designed for fast, efficient order picking. It offers a 5.15m working height, 0.70 m/s speed, and intuitive joystick controls for easy manoeuvrability in tight spaces. With a 700mm width, it fits narrow aisles and doorways, while the foldable picking platform supports 100kg and adjusts to three heights. Ideal for retail, warehousing, electrical, and installation applications.

Specifications:

	E5 Move Picking
Max working height	5.15 m
Max lift capacity	200 kg
Workplace	Internal and external
Closed machine height	1690 mm
Minimum platform height	289 mm
Maximum platform height	3150 mm
Base overall dimensions	1530/ 700 /1152 mm
Cage dimensions	685 x 600 mm
Machine weight	640 kg (with electrical picking platform) 590 kg (with removable picking platform)
Driving wheels size	186 x 60 mm
Idle rear wheels size	150 x 40 mm
Picking Platform
Adjustment	Electric
Stroke	722 mm
Min. height from the ground	790 mm
Max. height from the ground	4102 mm
Dimensions	500 mm, 680 mm
Capacity	100 kg
Performance
Power supply	24V
Batteries	2 Trojan Lead-Acid 12V 105 Ah
Battery charger	110 V – 220 V
Maximum climbing ability	15%
Climbing ability at height	5,5%
Internal turning radius	0
Max. speed (rising – descending)	0.2 m / s
Maximum shifting speed (on the ground – at height)	0.70 – 0.25 m/s
Maximum pressure for wheel at full load	2,9 kN
Work cycles (with fresh batteries) **	100

To contact United Forklift and Access Solutions about Elevah Stock Picker E5 Move Picking | 200 kg use Get a quote.

Impressive 5.15 m working height
Spacious work platform
Compact width of 700 mm
Exceptional steering and manoeuvrability

Specifications:

	E5 Move Picking
Max working height	5.15 m
Max lift capacity	200 kg
Workplace	Internal and external
Closed machine height	1690 mm
Minimum platform height	289 mm
Maximum platform height	3150 mm
Base overall dimensions	1530/ 700 /1152 mm
Cage dimensions	685 x 600 mm
Machine weight	640 kg (with electrical picking platform) 590 kg (with removable picking platform)
Driving wheels size	186 x 60 mm
Idle rear wheels size	150 x 40 mm
Picking Platform
Adjustment	Electric
Stroke	722 mm
Min. height from the ground	790 mm
Max. height from the ground	4102 mm
Dimensions	500 mm, 680 mm
Capacity	100 kg
Performance
Power supply	24V
Batteries	2 Trojan Lead-Acid 12V 105 Ah
Battery charger	110 V – 220 V
Maximum climbing ability	15%
Climbing ability at height	5,5%
Internal turning radius	0
Max. speed (rising – descending)	0.2 m / s
Maximum shifting speed (on the ground – at height)	0.70 – 0.25 m/s
Maximum pressure for wheel at full load	2,9 kN
Work cycles (with fresh batteries) **	100

Read less...

To contact United Forklift and Access Solutions about Elevah Stock Picker E5 Move Picking | 200 kg use Get a quote.
