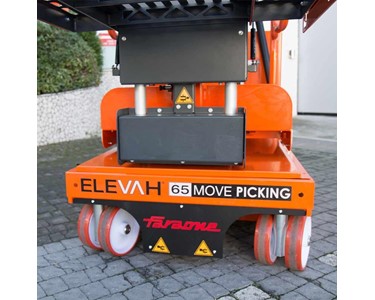

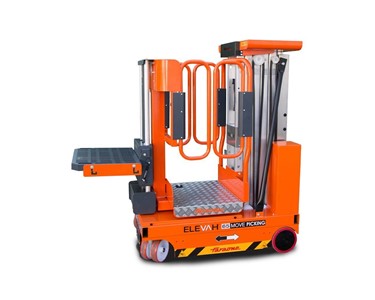

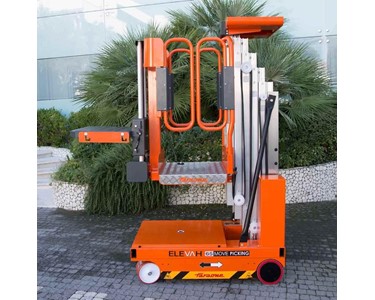

Elevah Stock Picker 65 Move Picking | 6.50 ...

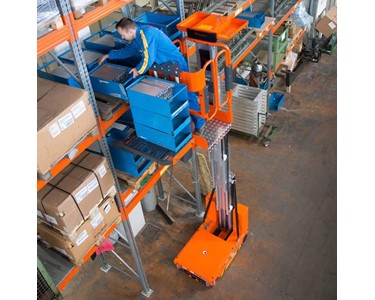

The Elevah 65 Move Picking is a self-propelled stock picker with a 6.5 m working height, offering the best reach in its class. Perfect for high warehouse racking and store shelving, it saves space and boosts efficiency.
With 78 cm width, tight turning radius, and joystick control, it’s easy to manoeuvre and driveable at full height. Two picking trays allow for more product handling: the main tray lifts 100 kg with adjustable height, and the smaller tray holds 20 kg. Safety features include a foot pressure switch for secure operation. Ideal for retail, warehouses, hardware stores, hospitals, and more.
Specifications of this product
65 Move Picking | |
Max working height | 6.50 m |
Max lift capacity | 200 kg |
Workplace | Internal and external |
Closed machine height | 1720 mm |
Minimum platform height | 460 mm |
Maximum platform height | 4700 mm |
Base overall dimensions | 1280 x 1780 x 780 mm |
Cage dimensions | 640 x 710 mm |
Machine weight | 830 kg |
Fixed picking tray dimensions | 440 x 740 mm |
Fixed picking tray capacity | 20 kg |
Driving wheels size | 220 x 65 mm |
Idle rear wheels size | 200 x 50 mm |
Picking Platform | |
Adjustment | Electric |
Stroke | 600 mm |
Min. height from the ground | 820 mm |
Max. height from the ground | 5650 mm |
Dimensions | 500 mm, 680 mm |
Capacity | 100 kg |
Performance | |
Power supply | 24V |
Batteries | Lead Acid Batteries 12V 105 Ah |
Battery charger | 110 V – 220 V |
Maximum climbing ability | 15 % |
Climbing ability at height | 2.5 % |
Internal turning radius | 0 |
External turning radius | 1095 mm |
Max. speed (rising – descending) | 0.2 m / s |
Maximum speed (with basket on the ground) | 5 km / h |
Maximum pressure for wheel at full load | 3.6 kN |
Work cycles (with fresh batteries) ** | Ca. 130 |
To contact United Forklift and Access Solutions about Elevah Stock Picker 65 Move Picking | 6.50 m use Get a quote.
The Elevah 65 Move Picking is a self-propelled stock picker with a 6.5 m working height, offering the best reach in its class. Perfect for high warehouse racking and store shelving, it saves space and boosts efficiency.
With 78 cm width, tight turning radius, and joystick control, it’s easy to manoeuvre and driveable at full height. Two picking trays allow for more product handling: the main tray lifts 100 kg with adjustable height, and the smaller tray holds 20 kg. Safety features include a foot pressure switch for secure operation. Ideal for retail, warehouses, hardware stores, hospitals, and more.
Specifications of this product
65 Move Picking | |
Max working height | 6.50 m |
Max lift capacity | 200 kg |
Workplace | Internal and external |
Closed machine height | 1720 mm |
Minimum platform height | 460 mm |
Maximum platform height | 4700 mm |
Base overall dimensions | 1280 x 1780 x 780 mm |
Cage dimensions | 640 x 710 mm |
Machine weight | 830 kg |
Fixed picking tray dimensions | 440 x 740 mm |
Fixed picking tray capacity | 20 kg |
Driving wheels size | 220 x 65 mm |
Idle rear wheels size | 200 x 50 mm |
Picking Platform | |
Adjustment | Electric |
Stroke | 600 mm |
Min. height from the ground | 820 mm |
Max. height from the ground | 5650 mm |
Dimensions | 500 mm, 680 mm |
Capacity | 100 kg |
Performance | |
Power supply | 24V |
Batteries | Lead Acid Batteries 12V 105 Ah |
Battery charger | 110 V – 220 V |
Maximum climbing ability | 15 % |
Climbing ability at height | 2.5 % |
Internal turning radius | 0 |
External turning radius | 1095 mm |
Max. speed (rising – descending) | 0.2 m / s |
Maximum speed (with basket on the ground) | 5 km / h |
Maximum pressure for wheel at full load | 3.6 kN |
Work cycles (with fresh batteries) ** | Ca. 130 |
To contact United Forklift and Access Solutions about Elevah Stock Picker 65 Move Picking | 6.50 m use Get a quote.
