Elevah - Ultra Compact Stock Picker E5 Tyres | 74 cm wide

Supplier: United Forklift and Access Solutions

Ultra Compact Stock Picker E5 Tyres | 74 cm wide

The Elevah E5 Tyres is an ultra-compact, specialised stock picker designed for the pneumatic sector. It safely lifts a complete set of tyres weighing up to 120 kg.

Video for Elevah Ultra Compact Stock Picker E5 Tyres | 74 cm wide

Receive 1-3 days from order

Impressive 5.15 m platform working height
Compact size – only 74 cm wide
Easy and practical to move
Lift up to 120 kg

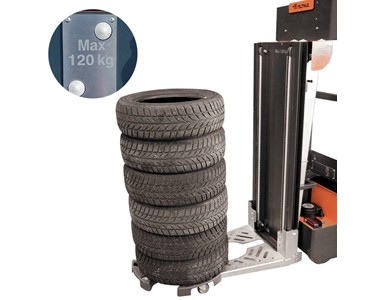

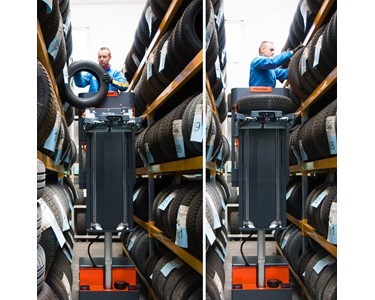

The Elevah E5 Tyres is an ultra-compact stock picker designed for the tyre and pneumatic sector. It safely lifts up to 120 kg of tyres directly from the ground and features electric height adjustment for easy handling.

With a platform height of 3.86 m and forks reaching 4.00 m, it provides excellent reach in tight spaces. At just 74 cm wide, it’s highly manoeuvrable and can be driven with one hand using a joystick. Perfect for efficient, safe tyre handling.

Specifications of this product

	E5 Tyres
Max working height	5.15 m
Max lift capacity	220 kg
Workplace	Internal and external
Closed machine height	1690 mm
Minimum platform height	289 mm
Maximum platform height	3150 mm
Base overall dimensions	1790/ 700 /1160 mm
Cage dimensions	685 x 600 mm
Machine weight	775 kg
Driving wheels size	186 x 60 mm
Idle rear wheels size	150 x 40 mm
Tyres Tool
Tyres forks	545 mm – 595mm
Adjustment	Electric
Stroke	1430 mm
Min. height from the ground	50 mm
Max. height from the ground	4075 mm
Capacity	120 kg
Performance
Power supply	24V
Batteries	Lead-Acid 12V 105 Ah
Battery charger	110 V – 220 V
Maximum climbing ability	15%
Climbing ability at height	2,5%
Internal turning radius	0
External turning radius	1060 mm
Max. speed (rising – descending)	0.2 m / s
Maximum shifting speed	0.2 m/s
Maximum pressure for wheel at full load*	3,4 kN
Work cycles (with fresh batteries) **	100

To contact United Forklift and Access Solutions about Elevah Ultra Compact Stock Picker E5 Tyres | 74 cm wide use Get a quote.

Impressive 5.15 m platform working height
Compact size – only 74 cm wide
Easy and practical to move
Lift up to 120 kg

Specifications of this product

	E5 Tyres
Max working height	5.15 m
Max lift capacity	220 kg
Workplace	Internal and external
Closed machine height	1690 mm
Minimum platform height	289 mm
Maximum platform height	3150 mm
Base overall dimensions	1790/ 700 /1160 mm
Cage dimensions	685 x 600 mm
Machine weight	775 kg
Driving wheels size	186 x 60 mm
Idle rear wheels size	150 x 40 mm
Tyres Tool
Tyres forks	545 mm – 595mm
Adjustment	Electric
Stroke	1430 mm
Min. height from the ground	50 mm
Max. height from the ground	4075 mm
Capacity	120 kg
Performance
Power supply	24V
Batteries	Lead-Acid 12V 105 Ah
Battery charger	110 V – 220 V
Maximum climbing ability	15%
Climbing ability at height	2,5%
Internal turning radius	0
External turning radius	1060 mm
Max. speed (rising – descending)	0.2 m / s
Maximum shifting speed	0.2 m/s
Maximum pressure for wheel at full load*	3,4 kN
Work cycles (with fresh batteries) **	100

Read less...

To contact United Forklift and Access Solutions about Elevah Ultra Compact Stock Picker E5 Tyres | 74 cm wide use Get a quote.
