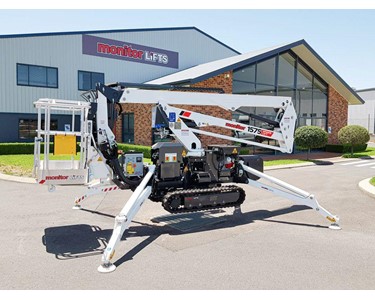

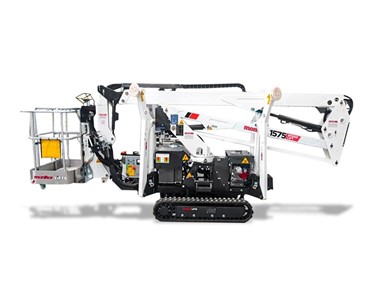

The Monitor 1575 Spider Lift is an extremely compact spider lift that’s ideal for the most difficult applications. The track system expands out for extra stability and stands taller for extra ground clearance.

When retracted, it reduces to only 780 mm wide and lowers the machine to 1909 mm height for very narrow access. The basket quickly and simply detaches with only one pin for accessing very tight locations. The basket can then easily be rolled along by one person on its own castor wheels.

Uniquely, the dog-leg shaped stabilizers provide a huge amount of travel for setting up on very uneven terrain. And with dual power sources, the Monitor 1575 is just as at home indoors or outdoors.

Features

•2-Man Platform

•240 Volt Electric System

•240 Volt Outlet in Platform

•Air & Water Outlet in Platform

•Basket Load Control

•Electric & Air Outlets in Basket (Air Optional)

•Electric Emergency Lowering System (Optional)

•Expandable Crawler Tracks

•Fly Jib

•Honda Petrol Engine

•Hydraulic Controls

•Non-Marking Rubber Tracks

•Platform Rotation (Optional)

•Radio Control Drive (Optional)

Specifications:

Max. Working Height:

15.00 m

Max. Working Reach:

8.50 m

Capacity:

200 kg

Chassis Type:

Crawler Tracks

Hydraulic Fly Boom:

Yes

Platform Rotation:

No

Weight/Outreach Limited:

Yes

Turret Rotation:

360°

Outrigger Stabilisers:

Yes

Min. Transport Length:

4.25 m

Min. Transport Width:

0.78 m

Min. Transport Height:

1.91 m

Power:

Honda 13 Hp Petrol

Weight:

2,060 kg
