Jibbi - Telescopic Tracked Boom Lift 1250 | 12.20 m

Supplier: United Forklift and Access Solutions

Telescopic Tracked Boom Lift 1250 | 12.20 m

The Jibbi 1250 is a telescopic tracked boom lift that can operate on challenging terrain and automatically level on steep slopes. The Jibbi 1250 offers a platform height of 10.2 metres and a 230kg lift capacity, ideal for two operators.

Video for Jibbi Telescopic Tracked Boom Lift 1250 | 12.20 m

Receive 1-3 days from order

IAPA 2019 – Product of the Year Award

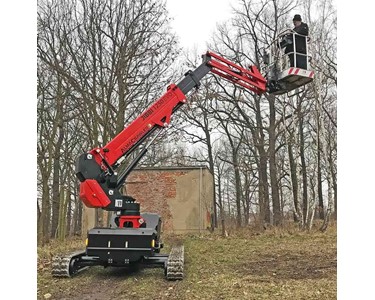

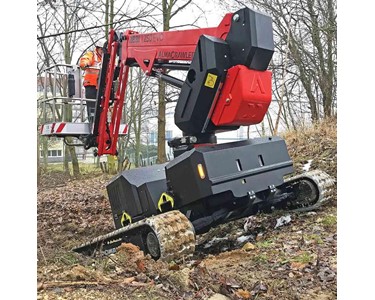

Ideal for all types of terrain
Safety operate on steep slopes
Diesel or electric powered

The Jibbi 1250 is a versatile tracked boom lift with automatic leveling for steep slopes. It offers 10.2m platform height, 230kg capacity, and comes in diesel (1250 EVO) or electric (1250 ELC) models. Features include retractable tracks, detachable basket, and advanced joystick controls. Ideal for construction, maintenance, and tight access areas.

Specifications:

	1250 EVO	1250 ELC
Working height	12.20 m	12.20 m
Platform height	10.20 m	10.20 m
Moving height	8.0 m	8.0 m
Horizontal outreach (load 80 kg)	7.0 m	7.0 m
Horizontal outreach (load 230 kg)	5.4 m	5.4 m
Rotation angle	+ / – 110 °	+ / – 110 °
Basket size	1.4 x 0.70 m	1.4 x 0.70 m
Basket rotation angle	+ / – 70 °	+ / – 70 °
Max basket capacity	230 kg	230 kg
Length in stowed position (with detached basket)	3.70 (3.0) m	3.70 (3.0) m
Minimum width in stowed position	1.15 m	1.15 m
Max working width	1.95 m	1.95 m
Minimum height in stowed position	1.98 m	1.98 m
Longitudinal levelling	+ / – 15 °	+ / – 15 °
Lateral levelling	+ / – 15 °	+ / – 15 °
Max gradeability	25 °	25 °
Max side gradeability	25 °	25 °
Drive speed (fast)	2.5 km / h	2.0 km / h
Security speed	0.3 km / h	0.3 km / h
Traffic load	3.86 kN / m2	4.82 kN / m2
Total weight	2850 kg	3600 kg
Power	3TNM68 – AS Yanmar engine (diesel) 14 kW – 19.2 Hp	Lead acid battery pack 420Ah-48V

Standard Equipment

220° slewing ring rotation

Basket rotation kit + / – 70 °

Integrated Drive System (using single joystick)

Retractable undercarriage

Removable basket

Integrated drive system with joystick controls

3 Inch colour display on operator control

Automatic Proactive & Dynamic levelling

Ultrasonic anti-collision system (anti-crush)

Forklift tyne pockets for easy lifting

Dynamic Work Performance (DWP) – Patent Pending

Undercarriage Safe-Lock System – Patent Pending

Options & Accessories

Electric pump 220V – 2.2kW / 50Hz (ELC only)

Non-marking tracks

Radio remote control

Arctic lubricant for cold climate

To contact United Forklift and Access Solutions about Jibbi Telescopic Tracked Boom Lift 1250 | 12.20 m use Get a quote.

IAPA 2019 – Product of the Year Award
Ideal for all types of terrain
Safety operate on steep slopes
Diesel or electric powered

Specifications:

	1250 EVO	1250 ELC
Working height	12.20 m	12.20 m
Platform height	10.20 m	10.20 m
Moving height	8.0 m	8.0 m
Horizontal outreach (load 80 kg)	7.0 m	7.0 m
Horizontal outreach (load 230 kg)	5.4 m	5.4 m
Rotation angle	+ / – 110 °	+ / – 110 °
Basket size	1.4 x 0.70 m	1.4 x 0.70 m
Basket rotation angle	+ / – 70 °	+ / – 70 °
Max basket capacity	230 kg	230 kg
Length in stowed position (with detached basket)	3.70 (3.0) m	3.70 (3.0) m
Minimum width in stowed position	1.15 m	1.15 m
Max working width	1.95 m	1.95 m
Minimum height in stowed position	1.98 m	1.98 m
Longitudinal levelling	+ / – 15 °	+ / – 15 °
Lateral levelling	+ / – 15 °	+ / – 15 °
Max gradeability	25 °	25 °
Max side gradeability	25 °	25 °
Drive speed (fast)	2.5 km / h	2.0 km / h
Security speed	0.3 km / h	0.3 km / h
Traffic load	3.86 kN / m2	4.82 kN / m2
Total weight	2850 kg	3600 kg
Power	3TNM68 – AS Yanmar engine (diesel) 14 kW – 19.2 Hp	Lead acid battery pack 420Ah-48V

Standard Equipment

220° slewing ring rotation

Basket rotation kit + / – 70 °

Integrated Drive System (using single joystick)

Retractable undercarriage

Removable basket

Integrated drive system with joystick controls

3 Inch colour display on operator control

Automatic Proactive & Dynamic levelling

Ultrasonic anti-collision system (anti-crush)

Forklift tyne pockets for easy lifting

Dynamic Work Performance (DWP) – Patent Pending

Undercarriage Safe-Lock System – Patent Pending

Options & Accessories

Electric pump 220V – 2.2kW / 50Hz (ELC only)

Non-marking tracks

Radio remote control

Arctic lubricant for cold climate

Read less...

To contact United Forklift and Access Solutions about Jibbi Telescopic Tracked Boom Lift 1250 | 12.20 m use Get a quote.
