Athena - Bi-levelling Tracked Scissor Lift 1090 | 6.5 m

Supplier: United Forklift and Access Solutions

Bi-levelling Tracked Scissor Lift 1090 | 6.5 m

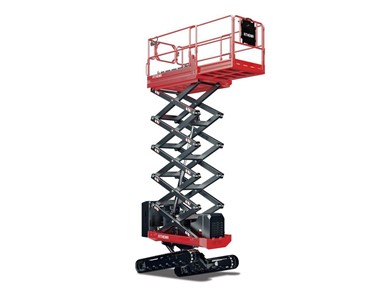

The Athena 1090 is a powerful tracked scissor lift featuring outstanding bi-levelling technology, capable of operating on tough terrain and steep slopes of up to 20 degrees.

Receive 1-3 days from order

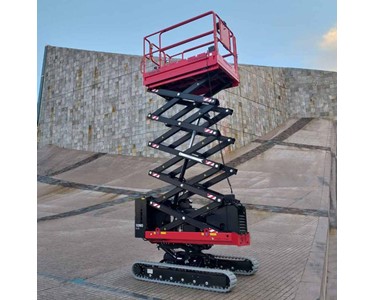

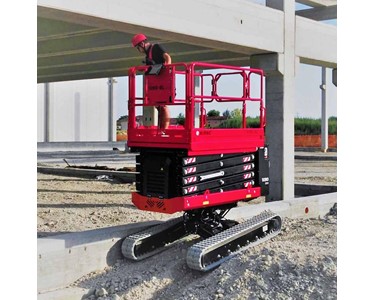

Operate on rough terrain and 20-degree slopes

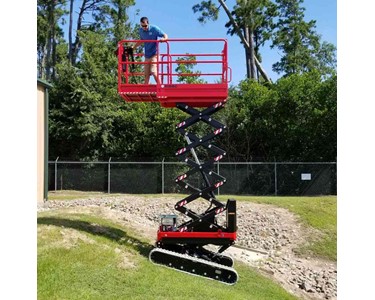

Wide platform suitable for two operators
Petrol, diesel, or electric powered models
Outstanding stability

The Athena 1090 is a robust tracked scissor lift with bi-levelling technology, capable of handling slopes up to 20°. With a maximum lift height of 10 metres and a 1.8–2.9 metre extendable platform, it accommodates two operators or up to 300kg.

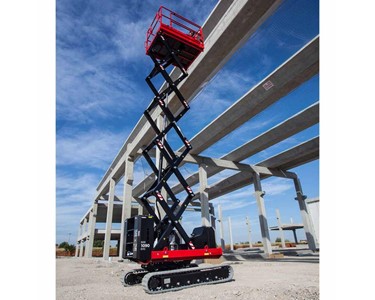

Offering excellent stability and manoeuvrability, it’s ideal for construction, agriculture, and other tough applications. Available in three models—1090 EVO (Kubota diesel), 1090 Bi-Energy (Honda petrol + lithium hybrid), and 1090 ELC (electric, 9-hour autonomy)—to suit any job site.

Specifications:

	1090 EVO	1090 ELC	1090 BI-ENERGY
Basket capacity	300 kg	300 kg	300 kg
Max working height	10.0 m	10.0 m	10.0 m
Max height basket floor	8.0 m	8.0 m	8.0 m
Moving height	6.5 m	6.5 m	6.5 m
Powered (standard)	Kubota Z602 (12.5kW)	Lead Crystal battery power pack 180Ah-48V	Diesel Hatz 1b40
Powered	–	–	Lithium power pack 100Ah 48-V
Autonomy	–	9 hours	–
Recharging time	–	5h (40 Ah) – 10h	3h (40Ah) – 6h
Accelerator	Automatic	–	Automatic
Undercarriage	Bi-levelling	Bi-levelling	Bi-levelling
Longitudinal levelling front	+ / – 15 °	+ / – 15 °	+ / – 15 °
Longitudinal levelling rear	+ / – 20 °	+ / – 20 °	+ / – 20 °
Lateral levelling	+ / – 14 °	+ / – 14 °	+ / – 14 °
Power generator (option)	220 V – 1 kW	–	220 V – 1 kW
Power generator (option)	220 V – 2.2 kW	220 V – 2.2 kW	–
Hydraulic commands	Proportionals	Proportionals	Proportionals
Dynamic levelling system	Yes	Yes	Yes
Pro-active levelling system	Yes	Yes	Yes
Direction-control system	Yes	Yes	Yes
Easy-drive system	Yes	Yes	Yes
Kit for high speed	Max 2.7 km/h	Max 2.20 km/h	Max 2.40 km/h
Ground emergency	Yes	Yes	Yes
Control of inclination	Automatic	Automatic	Automatic
Gradeability	25 °	25 °	25 °
Side slope	21 °	21 °	21 °
Length	2.28 m	2.27 m	2.27 m
Width	1.46 ÷ 1.64 m	1.46 ÷ 1.64 m	1.46 ÷ 1.64 m
Minimum machine height with folded railings and narrow tracks	2.42 (2.08) m	2.42 (2.08) m	2.42 (2.08) m
Minimum machine height with folded railings and wide tracks	2.09 (1.75) m	2.09 (1.75) m	2.09 (1.75) m
Total weight	2830 kg	–	2900 kg
Total weight without electric	2860 kg	3060 kg	–
Total weight with electric pump	2890 kg	3090 kg	–
Compliance	EN 280: 2015	EN 280: 2015	EN 280: 2015
