Athena Bi-levelling Tracked Scissor Lift ...

Athena - Bi-levelling Tracked Scissor Lift 870 | 7.9 m

Supplier: United Forklift and Access Solutions

Bi-levelling Tracked Scissor Lift 870 | 7.9 m

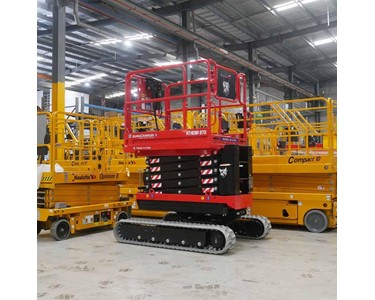

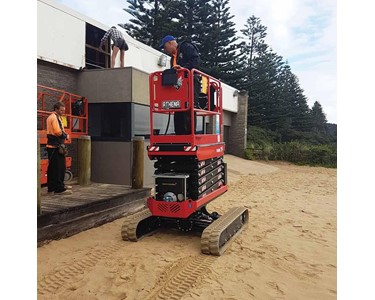

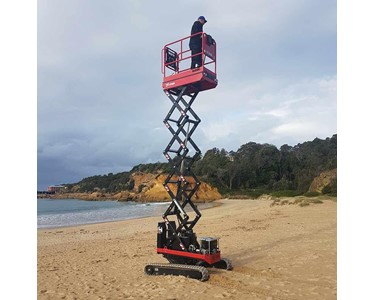

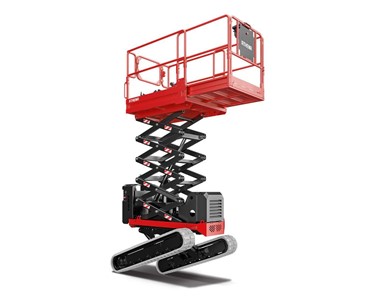

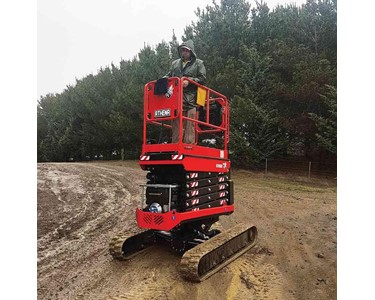

The Athena bi-levelling tracked scissor lift 870 is an innovative, versatile, and powerful machine that can operate on tough terrain and steep slopes of up to 20 degrees.

Receive 1-3 days from order

Operate on rough terrain and 20-degree slopes
A wide, 1.2 metre platform suitable for two operators
3 different models: the 870, 870 EVO and the 870 Bi-Energy
High powered engines

The Athena 870 is a robust tracked scissor lift with bi-levelling technology, capable of operating on slopes up to 20°. With a maximum lift height of 7.9 metres and a 1.2-metre-wide platform supporting two operators or 250kg, it delivers excellent stability and manoeuvrability for construction, agriculture, and other demanding applications.

Available in three models—870, 870 EVO (Kubota diesel), and 870 Bi-Energy (Honda petrol + lithium hybrid)—offering high performance, fuel efficiency, and safe operation on uneven terrain.

Specifications:

	870 BL	870 EVO	870 BI-ENERGY
Basket capacity	250 kg (2 op.)	250 kg (2 op.)	250 kg (2 op.)
Basket size	1.50 x 1.20 m	1.50 x 1.20 m	1.50 x 1.20 m
Max working height	7.9 m	7.9 m	7.9 m
Max height basket floor	5.9 m	5.9 m	5.9 m
Moving height	6.0 m	6.0 m (5.0 m) *	6.0 m
Powered Standard	Diesel Hatz 1B40	Diesel Kubota Z482	Lithium-Ion Power Pack / Diesel Hatz 1B40
Accelerator	Automatic	Automatic	–
Undercarriage	Bi-levelling	Bi-levelling	Bi-levelling
Basket levelling	Automatic	Automatic	Automatic
Longitudinal levelling front	+ / – 16°	+ / – 16°	+ / – 16°
Longitudinal levelling rear	+ / – 20°	+ / – 20°	+ / – 20°
Lateral levelling	+ / – 15°	+ / – 15°	+ / – 15°
Power generator (option)	220V – 1kW	220V – 1kW	–
Electric motor (option)	220V – 1kW	220V – 2kW	–
Hydraulic commands	Proportionals	Proportionals	Proportionals
Direction-control system	Yes	Yes	Yes
Easy-drive system	Yes	Yes	Yes
Kit for high speed	Max 2.20 km/h	Max 2.40 km/h	Max 2.20 km/h
Ground emergency	Yes	Yes	Yes
Control of inclination	Automatic	Automatic	Automatic
Pro-active levelling	–	Yes	Yes
Gradeability	25°	25°	25°
Side slope	21°	21°	21°
Length	1.94 m	2.14 m	2.03 m
Width	1.30 ÷ 1.50 m	1.30 ÷ 1.50 m	1.30 ÷ 1.50 m
Minimum machine height with folded railings and narrow tracks	2.28 (1.98) m	2.28 (1.98) m	2.28 (1.98) m
Minimum machine height with folded railings and wide tracks	1.98 (1.68) m	1.98 (1.68) m	1.98 (1.68) m
Total weight	2460 kg	2460 kg	2460 kg
Compliance	EN 280, ANSI, CSA, ASNZ1418	EN 280, ANSI, CSA, ASNZ1418	EN 280, ANSI, CSA, ASNZ1418

To contact United Forklift and Access Solutions about Athena Bi-levelling Tracked Scissor Lift 870 | 7.9 m use Get a quote.

Operate on rough terrain and 20-degree slopes
A wide, 1.2 metre platform suitable for two operators
3 different models: the 870, 870 EVO and the 870 Bi-Energy
High powered engines

Available in three models—870, 870 EVO (Kubota diesel), and 870 Bi-Energy (Honda petrol + lithium hybrid)—offering high performance, fuel efficiency, and safe operation on uneven terrain.

Specifications:

	870 BL	870 EVO	870 BI-ENERGY
Basket capacity	250 kg (2 op.)	250 kg (2 op.)	250 kg (2 op.)
Basket size	1.50 x 1.20 m	1.50 x 1.20 m	1.50 x 1.20 m
Max working height	7.9 m	7.9 m	7.9 m
Max height basket floor	5.9 m	5.9 m	5.9 m
Moving height	6.0 m	6.0 m (5.0 m) *	6.0 m
Powered Standard	Diesel Hatz 1B40	Diesel Kubota Z482	Lithium-Ion Power Pack / Diesel Hatz 1B40
Accelerator	Automatic	Automatic	–
Undercarriage	Bi-levelling	Bi-levelling	Bi-levelling
Basket levelling	Automatic	Automatic	Automatic
Longitudinal levelling front	+ / – 16°	+ / – 16°	+ / – 16°
Longitudinal levelling rear	+ / – 20°	+ / – 20°	+ / – 20°
Lateral levelling	+ / – 15°	+ / – 15°	+ / – 15°
Power generator (option)	220V – 1kW	220V – 1kW	–
Electric motor (option)	220V – 1kW	220V – 2kW	–
Hydraulic commands	Proportionals	Proportionals	Proportionals
Direction-control system	Yes	Yes	Yes
Easy-drive system	Yes	Yes	Yes
Kit for high speed	Max 2.20 km/h	Max 2.40 km/h	Max 2.20 km/h
Ground emergency	Yes	Yes	Yes
Control of inclination	Automatic	Automatic	Automatic
Pro-active levelling	–	Yes	Yes
Gradeability	25°	25°	25°
Side slope	21°	21°	21°
Length	1.94 m	2.14 m	2.03 m
Width	1.30 ÷ 1.50 m	1.30 ÷ 1.50 m	1.30 ÷ 1.50 m
Minimum machine height with folded railings and narrow tracks	2.28 (1.98) m	2.28 (1.98) m	2.28 (1.98) m
Minimum machine height with folded railings and wide tracks	1.98 (1.68) m	1.98 (1.68) m	1.98 (1.68) m
Total weight	2460 kg	2460 kg	2460 kg
Compliance	EN 280, ANSI, CSA, ASNZ1418	EN 280, ANSI, CSA, ASNZ1418	EN 280, ANSI, CSA, ASNZ1418

Read less...

To contact United Forklift and Access Solutions about Athena Bi-levelling Tracked Scissor Lift 870 | 7.9 m use Get a quote.

Athena-Bi-levelling-Tracked-Scissor-Lift-870-Brochure(9.58MB)
