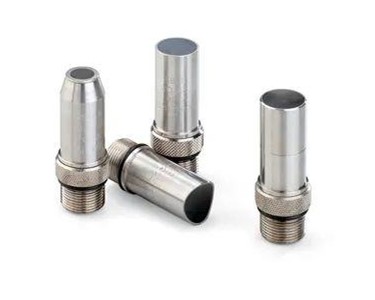

An immersion transducer is a single element longitudinal wave transducer with a 1/4 wavelength layer acoustically matched to water.

Receive 1-3 days from order

Immersion transducers are specifically designed to transmit ultrasound in applications where the test parts are partially or wholly immersed in water, which allows a uniform and fast coupling technique for rapid scanning of parts. Focusing lens can be added to increase transducer sensitivity and performance in a particular area of a part. Immersion transducers can be focused either spherically or cylindrically upon request within the allowable focal range for a given frequency and element size.

Advantages:

The immersion technique provides a means of uniform coupling
Quarter wavelength matching layer increases sound energy output
Corrosion resistant 303 stainless steel case with chrome-plated brass connectors
Proprietary RF shielding for improved signal-to-noise characteristics in critical applications

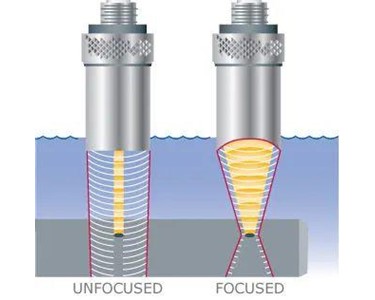

All immersion transducers, except paintbrush, can be focused spherically (spot) or cylindrically (line) (see Technical Notes page 45)
Customer specified focal length concentrates the sound beam to increase sensitivity to small reflectors

Applications:

Automated scanning
On-line thickness gaging
High speed flaw detection in pipe, bar, tube, plate, and other similar components
Time-of-flight and amplitude based imaging
Through transmission testing
Material analysis and velocity measurements

Usage Note: Transducers should not be submerged for periods exceeding 8 hours. Allow 16 hours of dry time to ensure the life of the unit.

Large Diameter Case

Large element diameters increase near field length allowing for longer focal lengths
Larger diameters can increase scanning index
Low frequency, large element diameter designs available for challenging applications

Transducer Dimensions (in inches)

Nominal Element Size	(A)	(B)	(C)
1.50	1.75	1.81	1.50
1.125	1.38	1.44	1.25
1.00	1.25	1.31	1.25
0.75	1.00	1.06	1.25

I-4, 1-7 and i-8 Style Housings

Various element and case sizes with straight UHF connectors and 303 stainless steel case housings are available.

Transducer Dimensions

Element Diameter (inches)	A	B
0.75	1.00	1.375
0.50, 0.625	0.748	1.375
1.00, 1.125	1.25	1.375

Frequency (MHz)	Nominal Element Size		ACCUSCAN-S	CENTRASCAN	Power Series	Resolution Series	VIDEOSCAN
Frequency (MHz)	in.	mm	Part / Item No.	Part / Item No.	Part / Item No.	Part / Item No.	Part / Item No.
0.5	0.75	19			I7-0012-P-SU \ U8517150		V318-SU\ U8423038
0.5	1	25	A301S-SU \ U8421001				V301-SU \ U8423001
0.5	1.125	29	A391S-SU \ U8421056				V391-SU \ U8423073
0.5	1.5	39	A389S-SU \ U8421055				V389-SU \ U8423071
1	0.75	19	A314S-SU \ U8421029				V314-SU \ U8423029
1	1	25		C302-SU\ U8422001			V302-SU \ U8423003
1	1.125	29	A394S-SU \ U8421058				V394-SU \ U8423075
1	1.5	39	A392S-SU \ U8421057				V392-SU \ U8423074
2.25	0.75	19	A305S-SU \ U8421007	C305-SU \ U8422003		I7-0212-R-SU \ U8517156	V305-SU \ U8423007
2.25	1	25	A304S-SU \ U8421006	C304-SU \ U8422002			V304-SU \ U8423006
2.25	1.5	39	A395S-SU \ U8421059				V395-SU \ U8423076
3.5	0.75	19	A381S-SU \ U8421051	C381-SU \ U8422018			V381-SU \ U8423063
3.5	1	25	A380S-SU \ U8421050	C380-SU \ U8422017			V380-SU \ U8423061
5	0.75	19	A308S-SU \ U8421011	C308-SU \ U8422007		I7-0512-R-SU \ U8517165	V308-SU \ U8423012
5	1	25	A307S-SU \ U8421010				V307-SU \ U8423010
7.5	0.75	19					V321-SU \ U8423043
10	0.75	19					V315-SU \ U8423030
10	1	25					V322-SU \ U8423044

Standard Case

Knurled case with Straight UHF connect or (SU)
Contact us for nonknurled case design and availability of other connector styles
Frequencies ranging from 1.0 to 25 Mhz

i-3 Style Housing

0.25 inches (6 mm), 0.375 inches (10 mm) and 0.50 inches (13 mm) element diameters in 0.63 inches (16 mm) housings with straight UHF connectors and 303 stainless steel case housings. If a focus is required, select a focal length between min. and max.

Frequency (MHz)	Nominal Element Size		ACCUSCAN-S	CENTRASCAN	Resolution Series	VIDEOSCAN
Frequency (MHz)	in.	mm	Part / Item No.	Part / Item No.	Part / Item No.	Part / Item No.
1	0.5	13	A303S-SU\U8421005			V303-SU \ U8423005
2.25	0.25	6		C323-SU \ U8422014		V323-SU \ U8423048
2.25	0.375	10		C325-SU \ U8422015		V325-SU \ U8423053
2.25	0.5	13	A306S-SU \ U8421009	C306-SU \ U8422004		V306-SU \ U8423009
3.5	0.25	6		C384-SU \ U8422021		V384-SU \ U8423070
3.5	0.375	10		C383-SU \ U8422020		V383-SU \ U8423066
3.5	0.5	13	A382S-SU \ U8421053	C382-SU \ U8422019	I3-0308-R-SU \ U8517233	V382-SU \ U8423065
5	0.25	6	A310S-SU \ U8421018	C310-SU \ U8422012		V310-SU \ U8423017
5	0.375	10	A326S-SU \ U8421038	C326-SU \ U8422016		V326-SU \ U8423054
5	0.5	13	A309S-SU \ U8421013	C309-SU \ U8422008		V309-SU \ U8423013
7.5	0.5	13	A320S-SU \ U8421035			V320-SU \ U8423042
10	0.25	6	A312S-SU \ U8421024			V312-SU \ U8423024
10	0.375	10	A327S-SU \ U8421039			V327-SU \ U8423055
10	0.5	13	A311S-SU \ U8421020		I3-1008-R-SU \ U8517073	V311-SU \ U8423019
15	0.25	6	A313S-SU \ U8421028			V313-SU \ U8423028
15	0.375	10				V328-SU \ U8423056
15	0.5	13	A319S-SU \ U8421032			V319-SU \ U8423040
20	0.125	3				V316-SU \ U8423034
20	0.25	6				V317-SU \ U8423037
25	0.25	6				V324-SU \ U8423052

Slim Line Case

Stainless steel case is only 0.38" (10 mm) in diameter, ideal for limited access areas
Standard configuration is Straight and fits Microdot ^® connector style

i-1 and i-2 Style Housings

0.25 inches (6 mm) diameter elements with 0.375 inches (10 mm) housings for difficult to reach fillet or bore areas are available with straight Microdot (I-1) or straight UHF (I-2) connectors and 303 stainless steel housings.

Frequency (MHz)	Nominal Element Size		ACCUSCAN-S	VIDEOSCAN
Frequency (MHz)	in.	mm	Part / Item No.	Part / Item No.
2.25	0.25	6		V323-SM \ U8423047
3.5	0.25	6		V384-SM \ U8423069
5	0.25	6	A310S-SM \ U8421017	V310-SM \ U8423016
10	0.25	6	A312S-SM \ U8421023	V312-SM \ U8423023
15	0.25	6	A313S-SM \ U8421027	V313-SM \ U8423027
20	0.125	3		V316-SM \ U8423033
20	0.25	6		V317-SM \ U8423036
25	0.25	6		V324-SM \ U8423051

Pencil Case

Small diameter, 2" (51 mm) long barrel improves access to difficult-to-reach areas
Standard connector style is Straight UHF (SU)

Frequency (MHz)	Nominal Element Size		ACCUSCAN-S	VIDEOSCAN
Frequency (MHz)	in.	mm	Part / Item No.	Part / Item No.
2.25	0.25	6		V323-N-SU \ U8423045
3.5	0.25	6		V384-N-SU \ U8423067
5	0.25	6	A310S-N-SU \ U8421014	V310-N-SU \ U8423014
10	0.25	6	A312S-N-SU \ U8421021	V312-N-SU \ U8423021
15	0.25	6	A313S-N-SU \ U8421025	V313-N-SU \ U8423025
20	0.125	3		V316-N-SU \ U8423032
20	0.25	6		V317-N-SU \ U8423035
25	0.25	6		V324-N-SU \ U8423049
