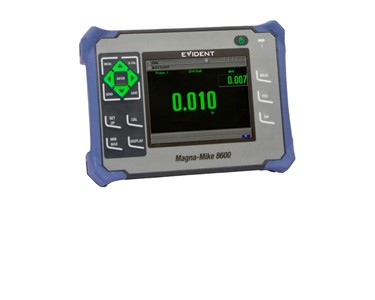

The Magna-Mike® 8600 is a portable thickness gauge that uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials.

Receive 1-3 days from order

Operation of the Magna-Mike is very simple. Measurements are made when its magnetic probe is held or scanned on one side of the test material and a small target ball (or disk or wire) is placed on the opposite side or dropped inside a container. The probe's Hall Effect sensor measures the distance between the probe tip and target ball. The measurements are instantly displayed on the large color thickness display as an easy-to-read digital thickness reading.

New Features

Three new durable probe designs:
--Straight, Right Angle, and Low-profile Articulating
Replaceable Wear Caps
--Standard, Chisel tip, and Extended Wear (for 86PR-1 and 86PR-2 only)
Expanded target selection
--3/16 and 1/4 in. magnetic target balls
--0.045 in. (1.14 mm) 0.026 in. (0.66 mm) diameter wire target
Expanded thickness range up to 25.4 mm (1.00 in.)
Larger Color VGA display
RS-232, USB and VGA outputs
Fast Measurement update rate 60 Hz
Expanded alphanumeric data logger

Save and Recall stored calibration files
Ability to export file to MicroSD card in .txt and CSV formats
New accessory kits (Calibration kits)
--Standard up to 9.1 mm (0.360 in.)
--Extended range up to 25.4 mm (1 in.)
--Disk kit
--Wire target kit
--Low-profile

Three New Probe Designs

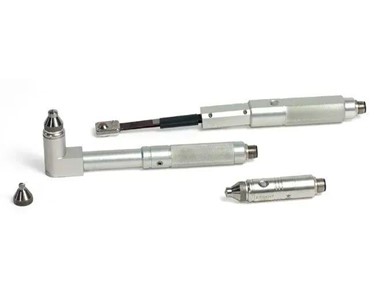

The Magna-Mike is available with straight, right angle, and low-profile articulating magnetic probes. The 86PR-1 and 86PR-2 feature replaceable wear cap to extend the probe's durability and reduce replacement costs.

Measures from 0.001 mm (0.0001 in.) to 25.4mm (1 in.)

The Magna-Mike offers an expanded list of target options greatly extend its measurement capability.

Targets	Min Thickness	Max Thickness	Accuracy
Targets	Min Thickness	Max Thickness	Basic Calibration	Multipoint
86PR-1 and 86PR-2
1/16 in. (1.58 mm) ball (80TB1)	0.0001 in. (0.001 mm)	0.080 in. (2.03 mm)	4%	3%
1/8 in. (3.17 mm) ball (80TB2)	0.0001 in. (0.001 mm)	0.240 in. (6.1 mm)	4%	2%
3/16 in. (4.76 mm) ball (80TB3)	0.0001 in. (0.001 mm)	0.360 in. (9.1 mm)	3%	1%
1/4 in. (6.35 mm) ball (80TB4)	0.0001 in. (0.001 mm)	0.360 in. (9.1 mm)	3%	1%
3/16 in. (4.76 mm) magnetic ball (86TBM3)	0.160 in. (4.06 mm)	0.750 in. (19.05 mm)	3%	1%
1/4 in. (6.35 mm) magnetic ball (86TBM4)	0.160 in. (4.06 mm)	1.00 in. (25.4 mm)	3%	1%
0.500 in. (12.7 mm) flat disk (80TD1)	0.0001 in. (0.001 mm)	0.360 in. (9.1 mm)	3%	2%
0.250 in. (6.35 mm) V-edge disk (80TD2)	0.0001 in. (0.001 mm)	0.240 in. (6.0 mm)	3%	2%
0.045 in. (1.14 mm) dia. wire (86TW1)	0.0001 in. (0.001 mm)	0.500 in. (12.7 mm)	3%	2%
0.026 in. (0.66 mm) dia. wire (86TW2)	0.0001 in. (0.001 mm)	0.240 in. (6.1 mm)
New 86PR-3 Low-profile Articulating Probe
1/16 in. (1.58 mm) ball (80TB1) 0.0001 in. (0.001 mm)		0.080 in. (2.0 mm)	4%	3%
1/8 in. (3.17 mm) ball (80TB2) 0.0001 in. (0.001 mm)		0.160 in. (4.1 mm)	4%	2%
0.026 in. (0.66 mm) dia. wire (86TW2) 0.0001 in. (0.001 mm)		0.160 in. (4.1 mm)	3%	2%

Note: For 86PR-1 and 86PR-2 probes the Measurement Tolerance = [(accuracy x thickness) +0.0001 in. or 0.003 mm)], for 86PR-3 the Measurement Tolerance = [(accuracy x thickness) + (0.001 in. or 0.025 mm)]

Internal Alphanumeric Data Logger

The Magna-Mike® has an extensive file-based alphanumeric data logger that is designed to easily store and transfer thickness readings.

You have the ability to store thickness readings in one of four standard file formats: Incremental, Sequential, Sequential with Custom Point and 2-D Grid.

Single Send or File Send directly to an Excel spread sheet using WINXL
Send data to other SPC program
Both USB and RS-232 outputs
Export files to a removable MicroSD card in .txt and CSV formats
Generate on-board reports

Specifications:

General	Overall dimension	236 mm x 167 mm x 70 mm (9.3 in. x 6.57 in. x 2.76 in.)
	Weight	1.68 kg (3.72 lb), including lithium-ion battery
	Keypad	English, Japanese, Chinese, International
	Languages	English, Spanish, French, German, Japanese, Chinese, Portuguese, Swedish, Norwegian, Dutch, Polish, Russian, Hungarian, Czech, Italian
	Data Storage	Onboard and removable 2 GB MicroSD card
	Battery life (Optional)	16 h (lithium-ion)
	Power requirements	AC Mains: 100 VAC to120 VAC, 200 VAC to 240 VAC
	Display type	Full VGA (640 x 480 pixels) transflective color LCD
	Display dimensions (W x H, Diag.)	117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.)
	Min/Max capture mode	Captured at 60 Hz measurement rate
	Display update rate	4, 8, 16 and 20 Hz
	Alarm	High and Low alarms
	Resolution	0.1 mm (0.01 in.), 0.01 mm (0.001 in.), 0.001 mm (0.0001 in.) (depending on thickness range)
	Data logger	Internal file-based alphanumeric data logger
Probes	86PR-1	Standard straight probe 82.30 mm (3.24 in) long and 18.62 mm (0.733 in.) dia.
	86PR-2	Right angle probe head 58.84 mm x 18.62 mm, length 178.57 mm (2.32 in. x 0.733 in. dia.,length 7.030 in.)
	86PR-3	Low-profile articulating probe 241.3 mm (9.5 in.) long
Environmental Testing	Vibration	MIL-STD-810G, Method 514.6, Procedure I
	Drop	MIL-STD-810G, Method 516.6, Procedure IV
	Shock	MIL-STD-810G, Method 516.6
	Designed for IP67	Yes
Inputs/Outputs	USB	USB 2.0 peripheral port
	RS-232	Yes
	Memory card	Maximum capacity: 2 GB removable MicroSD memory card
	Video output	VGA output standard
	Foot switch (optional)	Programmable (Save, Send, Meas or Q-Cal)
	Operation temperature	-10 °C to 50 °C (14 °F to 122 °F)

Standard Inclusions

Select probe and stand (straight, right angle, or low-profile):

86PR-1 (U8470020): Standard probe includes
86PRS1 (U8771043): Two part probe stand
86PR-2 (U8470028): Right angle probe includes
86PRS (U8771044): Two-part right angle probe stand
86PR-3s (Q7800004): Low-profile probe includes
86PRS3 (Q7800006) and tow part low-profile probe stand
86PC (U8801410): Probe cable for 86PR-1 and 86PR-2
WinXL (U8774010): Interface program to Excel

Select one from:

86ACC-KIT (U8771068): Standard calibration kit,
86ACC-ER-KIT (U8771069) Extended range calibration kit or
86ACC-PR3-KIT (Q7800005) Low-profile calibration kit.
EP-MCA: External power supply with charger
8600-MAN-CD (U8778535): CD with manual (all languages)
600-TC (U8780294): Plastic carry case
Select one from:
600-C-RS232-5 (U8780299): RS-232 cable
EPLTC-C-USB-A-6 (U8840031): USB cable

Standard inclusions may vary depending on your location. Contact your local distributor.

Optional Accessories

86PR-3 (Q7800004): Low-profile articulting probe
600-C-VGA-5 (U8780298): VGA output cable
600-BAT-L-3 (U8051431): Rechargeable lithium-ion battery
85FSW (U8780127): Remote footswitch
86PR-2 (U8470028): Right angle probe
86PRS2 (U8771044): Two-part probe stand for 86PR-2
86PCC (U8780323): Coiled cable for 86PR-1 and 86PR-2
86PR1-WC (U8780324): Replaceable wear cap for 86PR-1 and 86PR-2 probes
86PR1-CWC (U8780326): Chisel tip wear cap for 86PR-1 and 86PR-2 probes
86PR1-EWC (U8780344): Extended wear cap for 86PR-1 and 86PR-2 probes
80TB1 (U8771030): Target balls 1.58 mm (1/16 in.)
80TB2 (U8771031): Target balls 3.17 mm (1/8 in.)
80TB3 (U8771032): Target balls 4.76 mm (3/16 in.)
80TB4 (U8771033): Target balls 6.35 mm (1/4 in.)
80TD1 (U8771034): Target disk Flat edge
80TD2 (U8771035): Target disk V-edge
86TBM3 (U8771039): Magnetic target balls 4.76 mm (3/16 in.)
86TBM4 (U8771040): Magnetic target balls 6.35 mm (1/4 in.)
86TW1 (U8771041): Wire target 1.14 mm (0.045 in.)
86ACC-ER-KIT (U8771069): Extended calibration kit
86ACC-W-KIT (U8771070): Wire target calibration kit
86ACC-D-KIT (U8771071): Target disk calibration kit
86ACC-PR3-KIT (Q7800005): Low-profile probe calibration kit
80CAL-NIS (U8771011): NIST-traced calibration standards (set of six)

*All specifications are subject to change without notice.

To contact Evident Australia about Thickness Gauge Range up to 25.4 mm | Magna-Mike 8600 use Get a quote.

New Features

Three new durable probe designs:
--Straight, Right Angle, and Low-profile Articulating
Replaceable Wear Caps
--Standard, Chisel tip, and Extended Wear (for 86PR-1 and 86PR-2 only)
Expanded target selection
--3/16 and 1/4 in. magnetic target balls
--0.045 in. (1.14 mm) 0.026 in. (0.66 mm) diameter wire target
Expanded thickness range up to 25.4 mm (1.00 in.)
Larger Color VGA display
RS-232, USB and VGA outputs
Fast Measurement update rate 60 Hz
Expanded alphanumeric data logger

Save and Recall stored calibration files
Ability to export file to MicroSD card in .txt and CSV formats
New accessory kits (Calibration kits)
--Standard up to 9.1 mm (0.360 in.)
--Extended range up to 25.4 mm (1 in.)
--Disk kit
--Wire target kit
--Low-profile

Three New Probe Designs

Measures from 0.001 mm (0.0001 in.) to 25.4mm (1 in.)

The Magna-Mike offers an expanded list of target options greatly extend its measurement capability.

Targets	Min Thickness	Max Thickness	Accuracy
Targets	Min Thickness	Max Thickness	Basic Calibration	Multipoint
86PR-1 and 86PR-2
1/16 in. (1.58 mm) ball (80TB1)	0.0001 in. (0.001 mm)	0.080 in. (2.03 mm)	4%	3%
1/8 in. (3.17 mm) ball (80TB2)	0.0001 in. (0.001 mm)	0.240 in. (6.1 mm)	4%	2%
3/16 in. (4.76 mm) ball (80TB3)	0.0001 in. (0.001 mm)	0.360 in. (9.1 mm)	3%	1%
1/4 in. (6.35 mm) ball (80TB4)	0.0001 in. (0.001 mm)	0.360 in. (9.1 mm)	3%	1%
3/16 in. (4.76 mm) magnetic ball (86TBM3)	0.160 in. (4.06 mm)	0.750 in. (19.05 mm)	3%	1%
1/4 in. (6.35 mm) magnetic ball (86TBM4)	0.160 in. (4.06 mm)	1.00 in. (25.4 mm)	3%	1%
0.500 in. (12.7 mm) flat disk (80TD1)	0.0001 in. (0.001 mm)	0.360 in. (9.1 mm)	3%	2%
0.250 in. (6.35 mm) V-edge disk (80TD2)	0.0001 in. (0.001 mm)	0.240 in. (6.0 mm)	3%	2%
0.045 in. (1.14 mm) dia. wire (86TW1)	0.0001 in. (0.001 mm)	0.500 in. (12.7 mm)	3%	2%
0.026 in. (0.66 mm) dia. wire (86TW2)	0.0001 in. (0.001 mm)	0.240 in. (6.1 mm)
New 86PR-3 Low-profile Articulating Probe
1/16 in. (1.58 mm) ball (80TB1) 0.0001 in. (0.001 mm)		0.080 in. (2.0 mm)	4%	3%
1/8 in. (3.17 mm) ball (80TB2) 0.0001 in. (0.001 mm)		0.160 in. (4.1 mm)	4%	2%
0.026 in. (0.66 mm) dia. wire (86TW2) 0.0001 in. (0.001 mm)		0.160 in. (4.1 mm)	3%	2%

Internal Alphanumeric Data Logger

Single Send or File Send directly to an Excel spread sheet using WINXL
Send data to other SPC program
Both USB and RS-232 outputs
Export files to a removable MicroSD card in .txt and CSV formats
Generate on-board reports

Specifications:

General	Overall dimension	236 mm x 167 mm x 70 mm (9.3 in. x 6.57 in. x 2.76 in.)
	Weight	1.68 kg (3.72 lb), including lithium-ion battery
	Keypad	English, Japanese, Chinese, International
	Languages	English, Spanish, French, German, Japanese, Chinese, Portuguese, Swedish, Norwegian, Dutch, Polish, Russian, Hungarian, Czech, Italian
	Data Storage	Onboard and removable 2 GB MicroSD card
	Battery life (Optional)	16 h (lithium-ion)
	Power requirements	AC Mains: 100 VAC to120 VAC, 200 VAC to 240 VAC
	Display type	Full VGA (640 x 480 pixels) transflective color LCD
	Display dimensions (W x H, Diag.)	117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.)
	Min/Max capture mode	Captured at 60 Hz measurement rate
	Display update rate	4, 8, 16 and 20 Hz
	Alarm	High and Low alarms
	Resolution	0.1 mm (0.01 in.), 0.01 mm (0.001 in.), 0.001 mm (0.0001 in.) (depending on thickness range)
	Data logger	Internal file-based alphanumeric data logger
Probes	86PR-1	Standard straight probe 82.30 mm (3.24 in) long and 18.62 mm (0.733 in.) dia.
	86PR-2	Right angle probe head 58.84 mm x 18.62 mm, length 178.57 mm (2.32 in. x 0.733 in. dia.,length 7.030 in.)
	86PR-3	Low-profile articulating probe 241.3 mm (9.5 in.) long
Environmental Testing	Vibration	MIL-STD-810G, Method 514.6, Procedure I
	Drop	MIL-STD-810G, Method 516.6, Procedure IV
	Shock	MIL-STD-810G, Method 516.6
	Designed for IP67	Yes
Inputs/Outputs	USB	USB 2.0 peripheral port
	RS-232	Yes
	Memory card	Maximum capacity: 2 GB removable MicroSD memory card
	Video output	VGA output standard
	Foot switch (optional)	Programmable (Save, Send, Meas or Q-Cal)
	Operation temperature	-10 °C to 50 °C (14 °F to 122 °F)

Standard Inclusions

Select probe and stand (straight, right angle, or low-profile):

86PR-1 (U8470020): Standard probe includes
86PRS1 (U8771043): Two part probe stand
86PR-2 (U8470028): Right angle probe includes
86PRS (U8771044): Two-part right angle probe stand
86PR-3s (Q7800004): Low-profile probe includes
86PRS3 (Q7800006) and tow part low-profile probe stand
86PC (U8801410): Probe cable for 86PR-1 and 86PR-2
WinXL (U8774010): Interface program to Excel

Select one from:

86ACC-KIT (U8771068): Standard calibration kit,
86ACC-ER-KIT (U8771069) Extended range calibration kit or
86ACC-PR3-KIT (Q7800005) Low-profile calibration kit.
EP-MCA: External power supply with charger
8600-MAN-CD (U8778535): CD with manual (all languages)
600-TC (U8780294): Plastic carry case
Select one from:
600-C-RS232-5 (U8780299): RS-232 cable
EPLTC-C-USB-A-6 (U8840031): USB cable

Standard inclusions may vary depending on your location. Contact your local distributor.

Optional Accessories

86PR-3 (Q7800004): Low-profile articulting probe
600-C-VGA-5 (U8780298): VGA output cable
600-BAT-L-3 (U8051431): Rechargeable lithium-ion battery
85FSW (U8780127): Remote footswitch
86PR-2 (U8470028): Right angle probe
86PRS2 (U8771044): Two-part probe stand for 86PR-2
86PCC (U8780323): Coiled cable for 86PR-1 and 86PR-2
86PR1-WC (U8780324): Replaceable wear cap for 86PR-1 and 86PR-2 probes
86PR1-CWC (U8780326): Chisel tip wear cap for 86PR-1 and 86PR-2 probes
86PR1-EWC (U8780344): Extended wear cap for 86PR-1 and 86PR-2 probes
80TB1 (U8771030): Target balls 1.58 mm (1/16 in.)
80TB2 (U8771031): Target balls 3.17 mm (1/8 in.)
80TB3 (U8771032): Target balls 4.76 mm (3/16 in.)
80TB4 (U8771033): Target balls 6.35 mm (1/4 in.)
80TD1 (U8771034): Target disk Flat edge
80TD2 (U8771035): Target disk V-edge
86TBM3 (U8771039): Magnetic target balls 4.76 mm (3/16 in.)
86TBM4 (U8771040): Magnetic target balls 6.35 mm (1/4 in.)
86TW1 (U8771041): Wire target 1.14 mm (0.045 in.)
86ACC-ER-KIT (U8771069): Extended calibration kit
86ACC-W-KIT (U8771070): Wire target calibration kit
86ACC-D-KIT (U8771071): Target disk calibration kit
86ACC-PR3-KIT (Q7800005): Low-profile probe calibration kit
80CAL-NIS (U8771011): NIST-traced calibration standards (set of six)

*All specifications are subject to change without notice.
