Ultrasonic Flaw Detector 8.4-inch Touch Screen | OmniScan SX

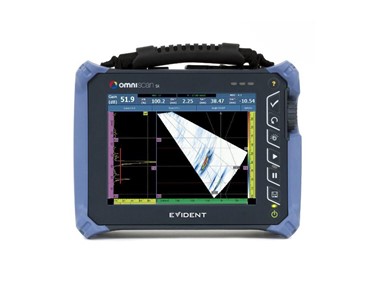

The single group, lightweight OmniScan SX flaw detector features an easy-to-read 8.4-inch (21.3 cm) touch screen and provides cost-effective solutions.

Receive 1-3 days from order

The OmniScan SX comes in two models: the SX PA and SX UT. The SX PA is a 16:64PR unit, which, like the UT-only SX UT, is equipped with a conventional UT channel for P/E, P-C, or TOFD inspections.

Evident is proud to introduce the OmniScan® SX, a flaw detector that benefits from more than 20 years of phased array experience and shares the OmniScan DNA. For improved ease of use, the OmniScan SX features a new streamlined software interface displayed on an 8.4 in. (21.3 cm) touch screen. A single-group and non-modular instrument, the OmniScan SX is easy to operate and cost-effective for less demanding applications.

The OmniScan SX comes in two models: the SX PA and SX UT. The SX PA is a 16:64PR phased array unit, which, like the UT-only SX UT, is equipped with a conventional UT channel for pulse-echo, pitch-catch or TOFD inspection. Compared to the OmniScan MX2, the SX is 33% lighter and 50% smaller, offering an unprecedented level of portability for an OmniScan.

The OmniScan SX touch screen offers a full-screen mode option that maximizes visibility, essentially converting many menu functions into easy touch-screen operations. The intuitive interface provides smooth menu selection, zooming, gate adjustments, cursor movements, and text and value input. These, along with other premium integrated features, including easy-to-follow setup and calibration Wizards, a rapid refresh rate for both the S-scan and A-scan displays, and a fast pulse repetition frequency (PRF), make the OmniScan SX a highly efficient inspection tool.

The OmniScan SX is fully compatible with the extensive portfolio of Evident scanners, probes and accessories, as well as with its dedicated software companions, NDT SetupBuilder and OmniPC. Combined, the complete family of software and hardware contributes to a streamlined and efficient inspection workflow, from design and setup to acquisition and analysis.

Software Features

The new OmniScan software features enhancements for greater functionality in weld and corrosion markets.

In the effort for continuous improvement, the software interface was simplified and the response time optimized in order to provide the best experience possible for customers.

New features include:

Export C-Scan
New End-View with group merge
Interleave
Analysis attenuation gain
Scrolling layouts for easy interpretation
Improved accessibility with more interactive menus
Optimised main menus and wizards
Onboard compound scan
Curved geometry ray-tracing for longitudinal welds

For applications requiring a multi-probe configuration, the multi-group layouts were improved so that the scanner configuration is reflected in the software interface.

The position of the different scans is determined by their distance to the center of the weld, providing an easy-to-understand and appealing layout.

Specifications:

Housing	Overall dimensions (W x H x D)	267 mm × 208 mm × 94 mm (10.5 in. × 8.2 in. × 3.7 in.)
Housing	Weight	3.4 kg (7.5 lb) with battery
Data Storage	Storage devices	SDHC card* or most standard USB storage devices. *Lexar^® brand memory cards are recommended for optimized results.
Data Storage	Data file size	300 MB
I/O Ports	USB ports	2 USB ports, compliant with USB 2.0 specifications
	Audio alarm	Yes
	Video output	Video out (SVGA)
I/O Lines	Encoder	2-axis encoder line (quadrature, up, down, or clock/direction)
	Digital input	4 digital TTL inputs, 5 V
	Digital output	3 digital outputs TTL, 5 V, 15 mA maximum per output
	Acquisition on/off switch	Yes, through configuration of a digital input
	Power output line	5 V, 500 mA power output line (short-circuit protected)
	Pace input	5 V TTL pace input
Display	Display size	21.3 cm (8.4 in.) (diagonal)
	Resolution	800 pixels x 600 pixels
	Brightness	600 cd/m²
	Viewing angles	Horizontal: –80° to 80° Vertical: –60° to 80°
	Number of colors	16 million
	Type	TFT LCD
Power Supply	Battery type	Smart Li-ion battery
	Number of batteries	1
	Battery life	Minimum 6 hours under normal operating conditions
Environmental Specifications	Operating temperature range	-10 °C to 45 °C (14 ºF to 113 ºF)
	Storage temperature range	–20 °C to 60 °C (–4 ºF to 140 ºF) with battery –20 °C to 70 °C (–4 ºF to 158 ºF) without battery
	Relative humidity	Max. 70% RH at 45°C noncondensing
	Ingress protection rating	Designed to meet requirements of IP66
	Shockproof rating	Drop-tested according to MIL-STD-810G 516.6
Ultrasound Specifications (applies to OMNISX-1664PR)	Connectors	1 Phased Array connector: Evident PA connector 2 UT connectors: LEMO 00
	Number of focal laws	256
	Probe recognition	Automatic probe recognition

Pulser/Receiver	Aperture	16 elements
	Number of elements	64 elements
	Pulser	PA Channels UT Channel
	Voltage	40 V, 80 V, and 115 V 95 V, 175 V, and 340 V
	Pulse width	Adjustable from 30 ns to 500 ns; resolution of 2.5 ns Adjustable from 30 ns to 1,000 ns; resolution of 2.5 ns
	Pulse shape	Negative square wave Negative square wave
	Output impedance	35 Ω (pulse-echo mode); 30 Ω (pitch- catch mode) <30 Ω
	Receiver	PA Channels UT Channel
	Gain	0 dB to 80 dB, maximum input signal 550 mVp-p (full-screen height) 0 dB to 120 dB maximum input signal 34.5 Vp-p (full-screen height)
	Input impedance	60 Ω (pulse-echo mode); 150 Ω (pitch- catch mode) 60 Ω (pulse-echo mode); 50 Ω (pulse-receive mode)
	System bandwidth	0.5 MHz to 18 MHz (NOTE: The previously stated 0.6 MHz lower limit used a strict −3 dB attenuation for the cutoff frequency.) 0.25 MHz to 28 MHz (–3 dB)

Beamforming	Scan type	Sectorial or linear
	Group quantity	1
	Data Acquisition	PA Channels UT Channel
	Effective digitizing frequency	Up to 100 MHz 100 MHz
	Maximum pulsing rate	Up to 6 kHz (C-scan)
	Data Processing	PA Channels UT Channel
	Number of data points	Up to 8,192
	Real-time averaging	PA: 2, 4, 8, 16 UT: 2, 4, 8, 16, 32, 64
	Rectifier	RF, full wave, half wave +, half wave –
	Filtering	3 low-pass, 3 band-pass, and 5 high-pass filters 3 low-pass, 6 band-pass, and 3 high-pass filters (8 low-pass filters when configured in TOFD)
	Video filtering	Smoothing (adjusted to probe frequency range)

Data Visualization	A-scan refresh rate	A-scan: 60 Hz; S-scan: 60 Hz
Data Synchronization	On internal clock	1 Hz to 6 kHz
Data Synchronization	On encoder	On 2 axes: from 1 to 65,536 steps
Programmable Time-Corrected Gain (TCG)	Number of points	16: One TCG (time-corrected gain) curve per focal law
Programmable Time-Corrected Gain (TCG)	Maximum slope	40 dB/10 ns
Alarms	Number of alarms	3
Alarms	Conditions	Any logical combination of gates
