Immersion Special Transducers | Evident Australia

Supplier: Evident Australia

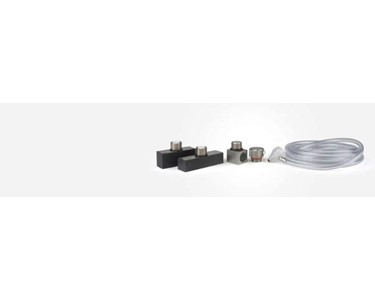

Immersion special transducers refer to a variety of transducers that conduct many specific applications such as measuring wall thickness, inspection of aluminum plating, or multi-element array flaw detection.

Receive 1-3 days from order

This group contains the following transducer types: side looking case, i-R style and XMS.

Side Looking Immersion Transducers

Ideal for measuring wall thicknesses of pipe where access to the outer diameter is limited
Small outer diameter allows for greater accessibility in tight spaces than standard immersion transducers with reflector mirrors
Sound exit point is located at a 90° angle relative to the straight Microdot ^® connector
Probe extensions such as the F211 are available to lengthen the standard design

Part Numbers	Freq.	Nominal Element Size	Focus
-	MHz	inches	mm	inches
V3591	10	0.125	3	0.50 OLF
V3343	20	0.125	3	0.50 OLF

Note: All above side looking immersion transducers have straight Microdot connectors.

Extra Miniature (XMS) Transducer

The XMS transducer is an extremely small 10 MHz immersion transducer with a 3 mm (0.118") diameter by 3 mm (0.118") long case. This transducer is ideal for extremely tight access areas or for multi-element array flaw detection. The transducer assembly has a special connector attached to the 1 m (38") long potted cable. An adaptor is also available to interface with most commercial ultrasonic equipment.

Frequency	Nominal Element Size		Part Number	Included Adapter
MHz	inches	mm	-	-
10	.080	2	XMS-310-B	BNC
10	.080	2	XMS-310-L	Lemo ^® 01

To contact Evident Australia about Immersion Special Transducers | Evident Australia use Get a quote.

This group contains the following transducer types: side looking case, i-R style and XMS.

Side Looking Immersion Transducers

Ideal for measuring wall thicknesses of pipe where access to the outer diameter is limited
Small outer diameter allows for greater accessibility in tight spaces than standard immersion transducers with reflector mirrors
Sound exit point is located at a 90° angle relative to the straight Microdot ^® connector
Probe extensions such as the F211 are available to lengthen the standard design

Part Numbers	Freq.	Nominal Element Size	Focus
-	MHz	inches	mm	inches
V3591	10	0.125	3	0.50 OLF
V3343	20	0.125	3	0.50 OLF

Note: All above side looking immersion transducers have straight Microdot connectors.

Extra Miniature (XMS) Transducer

Frequency	Nominal Element Size		Part Number	Included Adapter
MHz	inches	mm	-	-
10	.080	2	XMS-310-B	BNC
10	.080	2	XMS-310-L	Lemo ^® 01

Read less...

To contact Evident Australia about Immersion Special Transducers | Evident Australia use Get a quote.
