Eddy Current Sensor Stainless-steel | ...

Eddy Current Sensor Stainless-steel | Straight Shaft Surface Probes

Supplier: Evident Australia

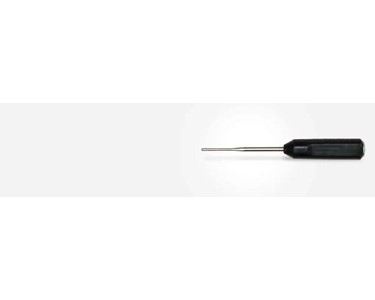

Detachable stainless steel straight shaft surface probes have a small-diameter housing and coils built for higher frequencies. They are usually used for surface breaking crack detection. This straight shaft design is the standard pencil probe style.

Receive 1-3 days from order

Advantages

Suitable for small defect detection.
Ideal for inspecting the bottom of holes that are in line with the opening.
Easy-to-handle pencil shape.
Available with Powerlink™ technology.
Wide range of lengths offered.
Available with bridge or reflection configuration.

Applications

Bottom of holes in aircraft piston housing.
Aircraft structure, unit, and engine inspection.
Through paint detection of stress corrosion cracking in stainless and carbon steel.
Surface crack inspection of manufacturing and transportation equipment.

Absolute Bridge

Absolute bridge type probes

Internal reference coils ensure the best match to the test coil when using a Triax (Fischer™*) or Powerlink™ connector.
Shielded coil for higher resolution.
Detect cracks in all directions.
Probe-type commonly used worldwide.
Cost-effective option.

Evident absolute bridge type probes give a clean and strong signal as shown.

* All brands are trademarks or registered trademarks of their respective owners and third-party entities.

Reflection type probes

Also known as send-receive or driver-pickup probes

Provides a similar response to the absolute bridge probe.
Available with stacked or concentric driver and pickup coils.
Enables crack detection in all directions.
Withstands variations in temperature.
Operates over a wide frequency range.

Evident reflection absolute type probes give a clean and strong signal as shown.

To contact Evident Australia about Eddy Current Sensor Stainless-steel | Straight Shaft Surface Probes use Get a quote.

Advantages

Suitable for small defect detection.
Ideal for inspecting the bottom of holes that are in line with the opening.
Easy-to-handle pencil shape.
Available with Powerlink™ technology.
Wide range of lengths offered.
Available with bridge or reflection configuration.

Applications

Bottom of holes in aircraft piston housing.
Aircraft structure, unit, and engine inspection.
Through paint detection of stress corrosion cracking in stainless and carbon steel.
Surface crack inspection of manufacturing and transportation equipment.

Absolute Bridge

Absolute bridge type probes

Internal reference coils ensure the best match to the test coil when using a Triax (Fischer™*) or Powerlink™ connector.
Shielded coil for higher resolution.
Detect cracks in all directions.
Probe-type commonly used worldwide.
Cost-effective option.

Evident absolute bridge type probes give a clean and strong signal as shown.

* All brands are trademarks or registered trademarks of their respective owners and third-party entities.

Reflection type probes

Also known as send-receive or driver-pickup probes

Provides a similar response to the absolute bridge probe.
Available with stacked or concentric driver and pickup coils.
Enables crack detection in all directions.
Withstands variations in temperature.
Operates over a wide frequency range.

Evident reflection absolute type probes give a clean and strong signal as shown.

Read less...

To contact Evident Australia about Eddy Current Sensor Stainless-steel | Straight Shaft Surface Probes use Get a quote.
