Eddy Current Sensor Shielded Coil | Pencil ...

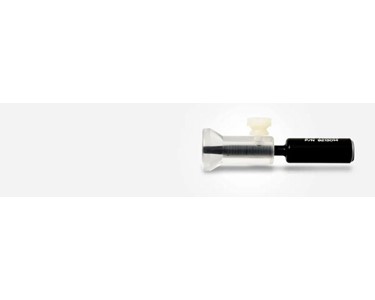

Eddy Current Sensor Shielded Coil | Pencil Surface Probes

Pencil surface probes are equipped with an adjustable collar that helps to achieve the optimal angle for inspection and ensures greater stability.

Receive 1-3 days from order

Belonging to the family of detachable stainless-steel shaft surface probes, these pencil probes feature small coils and a small-diameter housing built for higher frequencies. They are usually used for surface breaking crack detection.

Advantages

Excellent for small defect detection.
Good stability on flat surfaces.
Available with Powerlink™ technology.
Broad selection of frequency-ranges.
Wide variety of coil configurations available.

Applications

Through paint inspection of aircraft rivets.
Aircraft structure, unit, and engine inspection.
Through paint detection of stress corrosion cracking in stainless and carbon steel.
Surface crack inspection of manufacturing and transportation equipment.

Reflection type probes

Also known as send-receive or driver-pickup probes

Suitable for small defects, such as fatigue cracking.
Less drift than bridge probes.
Directional sensitivity.
Withstands variations in temperature.
Driver and pickup coils can be separately optimized for their intended purpose.
Wider frequency range, as driver coils do not need to be balanced to the pickup coils.

Absolute Bridge

Absolute bridge type probes

Internal reference coils ensure the best match to the test coil when using a Triax (Fischer™*) or Powerlink™ connector.
Shielded coil for higher resolution.
Detect cracks in all directions.
Probe-type commonly used worldwide.
Cost-effective option.

Evident absolute bridge type probes give a clean and strong signal as shown.

* All brands are trademarks or registered trademarks of their respective owners and third-party entities.

To contact Evident Australia about Eddy Current Sensor Shielded Coil | Pencil Surface Probes use Get a quote.

Advantages

Excellent for small defect detection.
Good stability on flat surfaces.
Available with Powerlink™ technology.
Broad selection of frequency-ranges.
Wide variety of coil configurations available.

Applications

Through paint inspection of aircraft rivets.
Aircraft structure, unit, and engine inspection.
Through paint detection of stress corrosion cracking in stainless and carbon steel.
Surface crack inspection of manufacturing and transportation equipment.

Reflection type probes

Also known as send-receive or driver-pickup probes

Suitable for small defects, such as fatigue cracking.
Less drift than bridge probes.
Directional sensitivity.
Withstands variations in temperature.
Driver and pickup coils can be separately optimized for their intended purpose.
Wider frequency range, as driver coils do not need to be balanced to the pickup coils.

Absolute Bridge

Absolute bridge type probes

Internal reference coils ensure the best match to the test coil when using a Triax (Fischer™*) or Powerlink™ connector.
Shielded coil for higher resolution.
Detect cracks in all directions.
Probe-type commonly used worldwide.
Cost-effective option.

Evident absolute bridge type probes give a clean and strong signal as shown.

* All brands are trademarks or registered trademarks of their respective owners and third-party entities.
