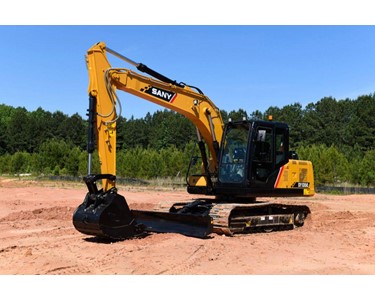

Excavator 78.5KW | SY135C Get latest price

Read more...

To contact WATM Equipment about Excavator 78.5KW | SY135C use Get a quote.

SY135C medium excavator adopts optimised engine output power, variable working modes, large-capacity fuel tank and reinforced structure, ensuring its top performance, high productivity and reliability.

Features:

The engine output power of SY135C 13.8 ton excavator is 73kW with increased hydraulic power and improved fuel efficiency. The 13.8 ton excavator adopts the customised engine with four cylinder, four-stroke direct-injection turbocharger, and providing strong operating power for the machine. The engine is designed with four working modes. The working mode can be changed on the monitor, which can maximize the operating efficiency and reduce the fuel consumption.

QUALITY

Quality is worth it – High-quality components improve the machine‘s durability, while additionally increasing the intervals between each maintenance and service.

With the Benefit of Robustness –  Durability and robustness are standard features on all SANY excavators. The reinforced structure of the SY135C lends the chassis exemplary stability, thereby prolonging the machine‘s service life. What‘s more, all of the panels are made solely of metal, which makes them particularly resilient.

DIMENSIONS

Compact power – The SANY SY135C tackles work extremely efficiently as a compact excavator. High performance and impressive stability – the perfect combination to complete all tasks quickly and reliably on the construction site.

Everything Within Reach – The SY135C impresses on-site thanks to its stability and stableness, meaning it brings its power quickly and safety to where it is needed. Its large working radius is also a plus point, with a maximum horizontal reach of 8290 mm and maximum excavation depth of 5500 mm. The heavy dozer blade ensures additional stability.

USER EXPERIENCE

Easy to maintain – The engine bonnet that can be fully opened and the clear arrangement of the key components in the centre make maintenance and service quick and easy.

Control With Feeling – The joystick control enables all functions of the excavator to be operated intuitively. The hydraulics valve control responds to commands immediately. Together with the automatic speed setting, this enables work to be carried out precisely and safely with higher efficiency and lower fuel consumption for the same operation. Not forgetting the large multifunctional monitor, which is easy to read and navigate, and displays all important information.

The Premium Class of Driver Comfort – A key feature of the SY135C is comprehensive comfort for its drivers. Excellent insulation around the cab provides reliable protection from noise and vibrations, as well as from high and low temperatures. The air-suspension driver‘s seat, provided as standard, offers the best possible comfort and protection from fatigue with its high seat backrest and various adjustment options. Plenty of space and room for movement, a radio and a 12 V jack, adjustable ventilation, heating and an automatic climate control system, a huge amount of stowage space, various options for storage and much more complete the comfort package.

SAFETY

Comprehensive protection – In addition to the rotating beacon and the driving alarm, the safety package also includes the fenders above the shield cylinders. Minimising Risks – Ergonomic handrails enable safe access to the maintenance platform. Large mirrors facilitate safe movement during operation, while the integrated safety valves keeps the boom and arm in position, even in the worst-case scenario.

COMPONENTS

Reliable drive – The tried-and-tested ISUZU-4JJ1X engine guarantees reliable performance in the long term, even in harsh working conditions.

Flexibility as Standard – The full hydraulic arrangement of the quick-change system guarantees that functions are perfectly integrated into the control menu, facilitating quick and safe attachment replacement. A further benefit is time and cost savings compared with regular retrofitting.

ECONOMY

Efficiency and power – The smart control system adapts the pump capacity to the available engine power for greater cost effectiveness and reduced fuel consumption. More work with less fuel – the SY135C‘s sophisticated engine and hydraulic concept makes this a reality. The hugely powerful diesel engine, equipped with common rail technology and AdBlue emission control, puts on a strong show with its maximum torque of 375Nmand1800 rpm. A choice of various operating modes and automatic speed reduction optimise fuel consumption in a tangible way. This is where power meets efficiency. The total savings thanks to improved fuel efficiency result in significant economic benefits.

The Right Kind of Pressure – Both powerful variable displacement axial piston pumps are operated in such a way that they only build up as much pressure as is actually required. This saves fuel and prolongs the life of the components. In addition, its hydraulic system has a sophisticated structure, which reduces friction loss and pressure drops in the pipelines and ensures that power is transferred efficiently for all working condition.

Specifications:

Displacement

2.999L

Engine model

Isuzu GJ-4JJ1XKSC

Rated power

78.5kW/2000rpm

OPERATION RANGE

Height at min. swing radius

6500 mm

Max. digging depth

5510 mm

Max. digging height

8685 mm

Max. digging reach

8290 mm

Max. dumping height

6180 mm

Max. vertical digging depth

4890 mm

Min. swing radius

2500 mm

Operating weight

13500 kg

DIMENSIONS

Blade height

2740 mm

Min. ground clearance

425 mm

Tail swing radius

2240 mm

Track length

3665 mm

Transport height

2815 mm

Transport length

7700 mm

Transport width

2550 mm

Upper width

2490 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

2.5 m

Boom length

4.6 m

Bucket capacity

0.6 m³

Track gauge

1990 mm

Track width

450 mm

PERFORMANCE

Arm digging force

66 kN

Bucket digging force

92.7 kN

Cooling system

22L/5.8gal

Engine oil

15 L

Fuel tank capacity

240 L

Gradeability

35°

Ground pressure

41.7 kPa

Hydraulic tank capacity

150 L

Swing speed

12 rpm

Travel speed

5.5/3.5 km/h

HYDRAULIC SYSTEM

Hydraulic motors – swing

12 rpm

Hydraulic motors – travel

3.5/5.5 km/h

Main pump – maximum flow

242.0 L/min
