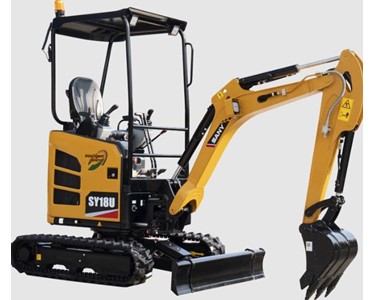

Although the SY18U is one of the smallest and lightest of the SANY mini excavators, they still have everything you need for efficient, precise work on board as standard. Their extremely simple handling and flexible, precise operation make the mini-excavators a highly productive tool for every job. As a lightweight machine with a zero swing design, they can also be transported quickly and easily to the place of use.

If you’re working in a limited space, the SANY SY18U is an excellent machine to consider due to its fully zero tail swing design. It offers exceptional power and stability in all situations, making it a versatile choice for a range of tasks. With its robust construction and easy maintenance features, this machine is designed to meet all of your needs and expectations, ensuring optimal performance and productivity.

Features:

High power motor

• Equipped with Yanmar engine, 3TNV80F, exclusively for SANY.
• It has a high power, 14.6kw, which ensures the reliability of the machine under bad working conditions.
•

Seat with premium suspension

• Equipped with a suspension seat to improve operator comfort.

Stable tail and swinging arm

• The range of the deflection working device is 625 mm left and 400 mm right.
• Both sides can easily be dug out to the outside edge of the track.
• The car can be operated in corners and other confined spaces.

Extension undercarriage

• The adjustable width of the undercarriage is 980-1350 mm.
• Improving the stability of the whole machine, the excavator can overcome the working space below 1m.
• The rotating shovel can ensure the passability and improve work efficiency

Specifications:

Displacement

0.993 L

Engine model

Yanmar 3TNV80F

Rated power

14.6/2400 rpm

OPERATION RANGE

Height at min. swing radius

2745 mm

Max. depth of blade down

320 mm

Max. digging depth

2385mm

Max. digging height

3410 mm

Max. digging reach

4010 mm

Max. dumping height

2350 mm

Max. excavating distance

4010 mm

Max. ground clearance of blade up

310 mm

Max. vertical digging depth

2215 mm

Min. swing radius

1655 mm

Operating weight

1925 kg

DIMENSIONS

Blade height

270 mm

Cab height

470 mm

Min. ground clearance

180 mm

Tail swing radius

675 mm

Track length

1580 mm

Transport height

2370 m

Transport length

3515 mm

Transport width

980/1350 mm

Upper width

980 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

1130 mm

Boom length

1810 mm

Bucket capacity

0.04 m³

Roller gauge

1220 mm

Track gauge

750/1120 mm

Track width

230 mm

PERFORMANCE

Arm digging force

9.2 kN

Bucket digging force

15.2 kN

Cooling system

3.8 L

Engine oil

2.0 L

Fuel tank capacity

23 L

Gradeability

30°

Ground pressure

29.1 kPa

Hydraulic tank capacity

21

Swing speed

10 rpm

Travel speed

3.7/2.1 km/h

HYDRAULIC SYSTEM

Hydraulic motors – travel Variable displacement axial piston motor

Main pump – maximum flow 72 l/min
