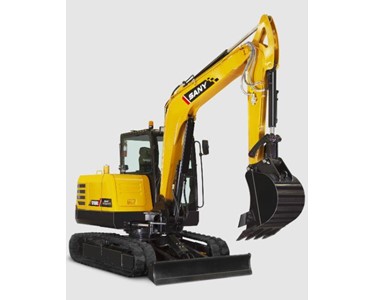

Excavator 42.4KW | SY60C Get latest price

Read more...

To contact WATM Equipment about Excavator 42.4KW | SY60C use Get a quote.

Features:

• The SLSS hydraulic system developed by an international team ensures precise operation and energy conservation.

• Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life.

• Easily accessible service points and a detachable radiator screen are among the features that make scheduled maintenance more convenient.

Specifications:

Displacement

2,615 L

Engine model

Yanmar tier 4 (4TNV98C)

Rated power

42.4kW/2000rpm

OPERATION RANGE

Height at min. swing radius

4495 mm

Max. depth of blade down

380 mm

Max. digging depth

3950 mm

Max. digging height

5790 mm

Max. digging reach

6320 mm

Max. dumping height

4060 mm

Max. excavating distance

6320mm

Max. ground clearance of blade up

330 mm

Max. vertical digging depth

3180 mm

Min. swing radius

2555 mm

Operating weight

6000 kg

DIMENSIONS

Blade height

340 mm

Min. ground clearance

330 mm

Tail swing radius

1640 mm

Track length

2545 mm

Transport height

2645mm/8’8”

Transport length

6015mm/19’9”

Transport width

2005mm/6’7”

Upper width

1860 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

1700 mm

Boom length

3000 mm

Roller gauge

1600 mm

Track gauge

1600 mm

Track width

400 mm

PERFORMANCE

Arm digging force

33 kN

Bucket digging force

45 kN

Cooling system

5.6L/1.5gal

Engine oil

9.6L/2.5gal

Fuel tank capacity

130L/34.3gal

Gradeability

35°

Ground pressure

37.5 kPa

Hydraulic tank capacity

85 L

Swing speed

9.6 rpm

Travel speed

2.4/3.7 km/h

HYDRAULIC SYSTEM

Hydraulic motors – swing

9.6 rpm

Main pump – maximum flow

142.7 L/min

Read less...
