Excavator 18.2KW | SY35U Get latest price

Read more...

To contact WATM Equipment about Excavator 18.2KW | SY35U use Get a quote.

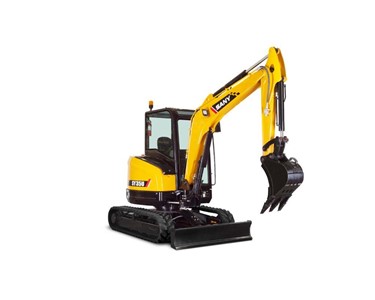

The SY35U mini excavator provides precise and dependable results, delivering high performance even in tight and limited spaces. It possesses all the features and capabilities that you would expect from a mini excavator: sturdiness, ease of use, and exceptional performance metrics that make it suitable for all kinds of excavation tasks. Its reliable performance and robust construction make it an excellent choice for anyone seeking a high-quality and versatile mini excavator.

Features:

PERFORMANCE AND DURABILITY

Powerful engine – The SY35U mini excavator is equipped with the EPA Tier 4f 18.2/2200 kW/rmp Yanmar engine to better support the power and performance required for various applications. Also, the stepless speed change accelerator configured for the machine realizes free speed rotation in different working environment, ideal for the combination of operation and efficiency.

Load sensing hydraulics – The matched load sensing hydraulics is designed for increased fuel efficiency and maximized performance.
X-shape undercarriage – The X-shape undercarriage features strong intensity and rigidity, showing excellent bending and torsion resistance capacity, to meet different job sites.
Energy-saving Technology – The self-developed boom and deflection head structure.
The topological optimization enhances the strength and reduces the weight, which guarantees the fuel efficiency.

USER FRIENDLY OPERATION
The zero tail swing is perfect for tight job sites and working in confined spaces. The open cab is designed to increase visuality, easy for the operator to observe the road conditions. The Europe-introduced latest noise-reduction technology creates a more focused operation environment; the optional multipoint air-conditioner offers you more choices.

Auxiliary lines – The auxiliary lines are run down the boom and arm as standard equipment for easy fit-up and running of hydraulic attachments.

EASY MAINTENENCE
The tail end of the machine is mainly designed for the daily maintenance, to make it easily accessible to the air filter and fuel oil filter, facilitating the maintaining job.

Specifications:

Displacement

1.6 L

Engine model

Yanmar 3TNV88F

Rated power

18.2/2200 kW/rmp

OPERATION RANGE

Height at min. swing radius

3685 mm

Max. digging depth

3105 mm

Max. digging height

4855 mm

Max. digging reach

5465 mm

Max. dumping height

3460 mm

Max. excavating distance

5465 mm

Max. vertical digging depth

2700 mm

Min. swing radius

2475 mm

Operating weight

3680 kg

DIMENSIONS

Blade height

350 mm

Min. ground clearance

295 mm

Tail swing radius

1670 mm

Track length

1420 mm

Transport height

2515 mm

Transport length

4915 mm

Transport width

1720 mm

Upper width

1550 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

1400 mm

Boom length

2540 mm

Bucket capacity

0.12 m³

Roller gauge

1670 mm

Track gauge

1420 mm

Track width

300 mm

PERFORMANCE

Arm digging force

18.2 kN

Bucket digging force

30.4 kN

Cooling system

6.5 L

Engine oil

6.5 L

Fuel tank capacity

40 L

Gradeability

35°

Hydraulic tank capacity

40 L

Swing speed

9 rpm

Travel speed

4.4/2.4 km/h

HYDRAULIC SYSTEM

Hydraulic motors – swing

9 rpm

Hydraulic motors – travel

2.4/4.4 km/h

Main pump – maximum flow

88 lpm
