Excavator 42.4KW | SY75C

Supplier: WATM Equipment

Excavator 42.4KW | SY75C

ENGINE MODEL: YANMAR 4TNV98C OPERATING WEIGHT: 7280KG/7.28t. RATED POWER: 42.4KW/1900RPM

Receive 1-3 days from order

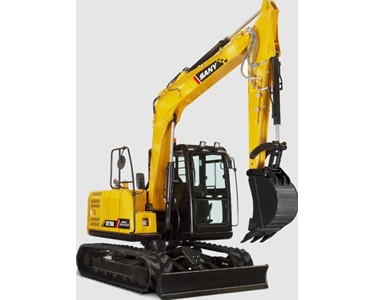

The SANY SY75C medium excavator is designed with high engine output power, fast speed and high fuel efficiency, suitable for demanding jobsites. Powerful and with a large excavation depth, this machine completes all tasks efficiently and with a reliable performance. The excavators sophisticated structure allows it to tackle very high loads with exemplary stability. Moreover, the cabins state of the art design is reminiscent of a comfortable car’s interior. Not only visually appealing to drivers- the cabs comfort and ergonomics are precisely tailored to the requirements for safe and concentrated work.

Features:

SANY four-cylinder engine and four stroke direct-injection provides a stronger power for the excavator.

Auto deceleration reduces fuel consumption by 5-10%. The engine speed drops automatically to idle level and maintains the idling state when the operation stops for 3.5 seconds.

A quick return line is added to the arm oil cylinder circuit, considerably improving the operating efficiency at low energy consumption. Main pump delivery increases from 149 litres to 168 litres. Faster speed is achieved in separate operation

Specifications:

Displacement

2.2 L

Engine model

ISUZU Tier 4

Rated power

43kW/2000rpm

OPERATION RANGE

Height at min. swing radius

5500 mm

Max. depth of blade down

330 mm

Max. digging depth

4450 mm

Max. digging height

7390 mm

Max. digging reach

6600 mm

Max. dumping height

5490 mm

Max. ground clearance of blade up

380 mm

Max. vertical digging depth

3840 mm

Min. swing radius

1940 mm

Operating weight

7280 kg

DIMENSIONS

Blade height

405 mm

Tail swing radius

1800 mm

Track length

2820 mm

Transport height

2760 mm

Transport length

6095 mm

Transport width

2220 mm

Upper width

2040 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

2050 mm

Boom length

3720 mm

Bucket capacity

0.28 m³

Track gauge

1750 mm

Track width

450 mm

PERFORMANCE

Arm digging force

30 kN

Bucket digging force

51 kN

Engine oil

10 L

Fuel tank capacity

150 L

Gradeability

35°

Ground pressure

33 kPa

Hydraulic tank capacity

120 L

Swing speed

10 rpm

Travel speed

4.4/2.4 km/h

HYDRAULIC SYSTEM

Hydraulic motors – swing

10.5 rpm
