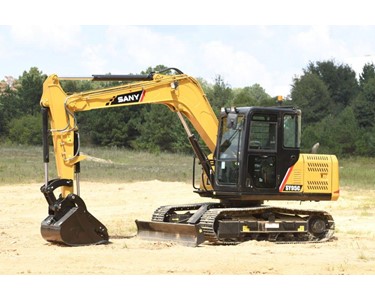

Excavator 53.7KW | SY95C Get latest price

Read more...

To contact WATM Equipment about Excavator 53.7KW | SY95C use Get a quote.

The SY95C is powered by a reliable and fuel-efficient Yanmar engine. Extra reinforcements in the boom, arm, swing platform, and undercarriage increase stability and service life. The control system with load sensing hydraulics use all available engine power to ensure that this excavator has maximum speed and power in all operating conditions.

Features:

• The independently developed control system with load sensing hydraulics use all available engine power to ensure maximum speed and power in all operating conditions

• Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life

Specifications:

Displacement

3.3 L

Engine model

Yanmar 4TNV98CT

Rated power

72HP/53.7KW/2100rpm

OPERATION RANGE

Height at min. swing radius

5700 mm

Max. depth of blade down

360 mm

Max. digging depth

4330 mm

Max. digging height

7260 mm

Max. digging reach

7290 mm

Max. dumping height

5210 mm

Max. vertical digging depth

3080 mm

Min. swing radius

1990 mm

Operating weight

9180 kg

DIMENSIONS

Blade height

420 mm

Tail swing radius

1885 mm

Transport height

3200 mm

Transport length

6560 mm

Transport width

2260 mm

Upper width

2160 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

2050 mm

Boom length

3720 mm

Track gauge

1750 mm

Track width

450 mm

PERFORMANCE

Arm digging force

46.8 kN

Bucket digging force

63.6 kN

Cooling system

12 L

Engine oil

10.2 L

Fuel tank capacity

160 L

Gradeability

35°

Ground pressure

38.6 kPa

Hydraulic tank capacity

120 L

Swing speed

11 rpm

Travel speed

2.4/4.4 km/h

HYDRAULIC SYSTEM

Main pump – maximum flow

199.5 L/pm
