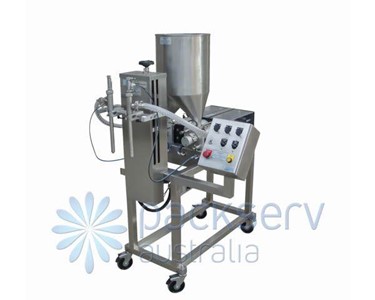

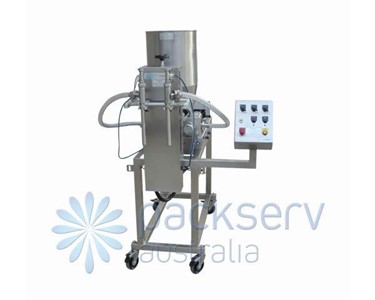

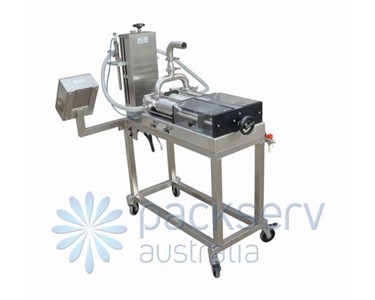

Twin Head Auto Filler for Hire | Asset AV-3-2C

Supplier: Packserv

The Asset AV-3-2C series of automatic filling machines offer a simple to operate heavy duty design with a proven history of reliability and ease of cleaning.

Call for more details

The Asset AV-3-2C series of automatic filling machines offer a simple to operate heavy duty design with a proven history of reliability and ease of cleaning. The versatility of this all pneumatic machine has now been enhanced with a completely new compact design, volume adjustment and cylinder assembly incorporating a revolutionary rotary valve system, and Australian Registered Design developed by Asset for the AV-3's big brother, the AMF-4C filler.

Features:

Heavy duty pneumatic product cylinder drive system
Integral 304-grade stainless steel base and cladding for bench or trolley mounting
Suitable for warm water hose down
Wet parts manufactured from 316 grade stainless steel and food grade engineering plastics
Product piston fitted with O-ring energised teflon/HDPE glide ring seal
Quick connect tri-clover product inlet/outlet fittings
All pneumatic flameproof operation suitable for use with flammable products
Individual fill speed and recharge speed controls
Asset Rotary Product Valve system provides a positive valve seal unaffected by product supply head height
Available in 25, 50, 125, 250, 500, or 1250ml cylinder sizes
Infinitely adjustable between 10% and 100% of their rated volumes
Product cylinder and valve dismantle by hand for cleaning, no tools required
Easy volume adjustment while running
Filling accuracy +/- 0.5 to 1%

Stats:

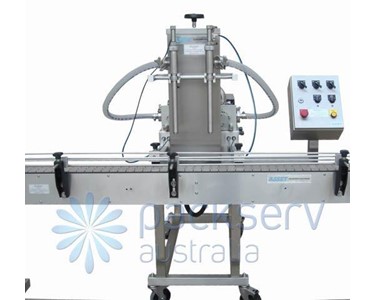

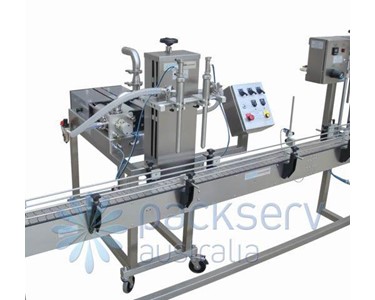

Can be run as a conveyor mounted auto or stand alone semi-automatic model
Air operated (we can supply air compressor if required)
20-60 units per minute (guide only)
Suitable for food and pharmaceutical use
Pneumatic controlled
Totally speed adjustable
600kpa (80psi) pressure requirement
10CFM air consumption
Various nozzles, cylinders, inlets, hoses etc.
Easy volume adjustment while running
All 304 grade stainless steel and aluminum construction
Flameproof
Hot or cold fill
3mls to 1250mls standard fill range
Adjustable nozzle heights
No tools required for setting adjustment
Bottom up fill standard
Positive shut-off nozzles standard
Wet parts made from food and pharmaceutical 316 grade stainless steel and food grade plastics
Filling accuracy +/- 0.5 to 1%
Dimensions 1000 x 1400 x 1700
Weight 75 kgs
Mounted on lockable castor wheels

Check out more information: https://bit.ly/2JsdfqT
