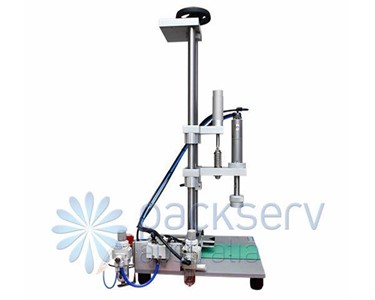

The Asset semi-automatic or bench top model AC-1 Cap Tightener has been the industry standard in semi-automatic cap tightening machinery for over 20 years. Equally at home in small start-up packing operations or in production units of major corporations, the AC-1's low cost, versatility and precise operation have made it a favourite in a wide range of demanding applications. If your production requirement increases, the semi-auto can be converted to a fully automatic conveyor-mounted model AAC-1.
From 8mm eye-dropper or cosmetic caps to 100mm closures for wide-mouth food jars, the AC-1's simple controls enable fast set-ups and typical throughputs of around 10 to 20 units per minute.

A single hand-wheel and locking ring allows quick height adjustment for different containers. The universal container guide, adjustable for container size and shape, has an integral activating switch plate - another Asset exclusive feature. Simply place a container against the guide and the tightening chuck automatically descends, tightens, and retracts.
Increase or decrease the tightening dwell time to suit the particular application by a turn of the pneumatic timer knob. Simply adjust to give adequate time for the cap to wind down the thread and stop. Adjust the tightening torque by a turn of the air pressure regulator knob.
The range of 5 standard interchangeable tightening chuck sizes and 3 standard liner materials will handle most capping applications. Chucks are also available for specialised closures such as tamper-tel, eye dropper, etc. For trigger pump sprays, cream dispensers and mist pumps, and other closures which cannot be tightened from above, the Asset Pumptite Unit is available as a bolt-on optional item- refer to the PT-7 spec page.

The AC-1 semi-auto has all pneumatic operation so it's safe with flammable products. The unit is supplied ready to run by Packserv, requiring only a supply of compressed air like our PA-TM12 air compressor.

Features:

• Sturdy low maintenance construction
• Flameproof, all pneumatic operation
• High quality Desoutter air motor drive
• Precise torque setting via pressure regulator and gauge
• Adjustable container guide with integral activating switch plate
• Quick container and cap size changeover
• Simple container height, tightening dwell time and torque adjustment without tools

Stats:

• Bench-top bottle capper (15Kgs approx)
• Air operated (we can supply air compressor if required)
• Various chucks and chuck sizes to suit most caps
• Fully torque adjustable
• Suitable for round or square containers
• 10mm-100mm standard chucks, others can be made
• Screw, pump, mist, trigger, push and snap closures
• Capping 10-20 units per minute (guide only)
• Comes in a conveyor-mountable automatic version
• Suitable for food and pharmaceutical use
• All 316 stainless steel and aluminium construction
• 400kpa (60psi) pressure requirement
• Can be fully washed down
• Flameproof
• Fast change over of bottles/containers
• No tools required for setting adjustments
