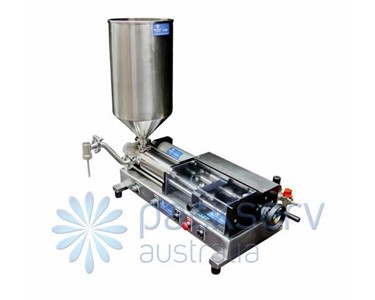

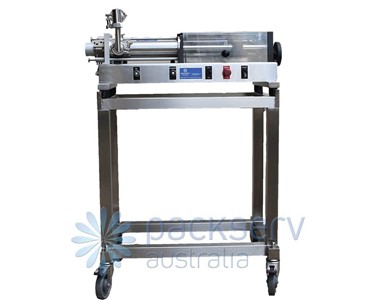

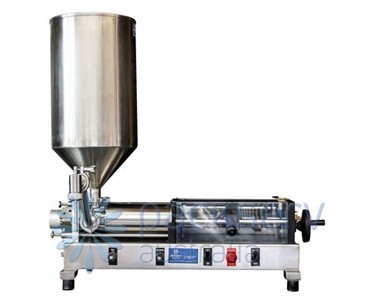

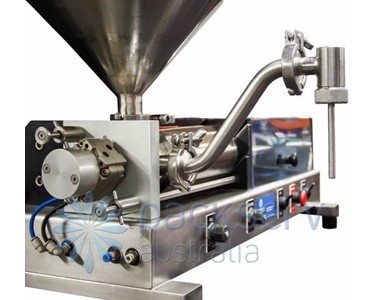

Single Head Volumetric Liquid, Cream, Paste Filler For Hire | AV-3 Get latest price

Read more...

To contact Packserv about Single Head Volumetric Liquid, Cream, Paste Filler For Hire | AV-3 use Get a quote.

Features:

• Heavy duty pneumatic product cylinder drive system
• Integral 304-grade stainless steel base and cladding for bench or trolley mounting
• Suitable for warm water hose down
• Wet parts manufactured from 316 grade stainless steel and food grade engineering plastics
• Product piston fitted with O-ring energised teflon/HDPE glide ring seal
• Quick connect tri-clover product inlet/outlet fittings
• All pneumatic flameproof operation suitable for use with flammable products
• Individual fill speed and recharge speed controls
• Asset Rotary Product Valve system provides a positive valve seal unaffected by product supply head height
• Available in 25, 50, 125, 250, 500, or 1250ml cylinder sizes
• Infinitely adjustable between 10% and 100% of their rated volumes
• Product cylinder and valve dismantle by hand for cleaning, no tools required
• Easy volume adjustment while running
• Filling accuracy +/- 0.5 to 1%
• Dimensions 820 x 330 x 300 (LWH)

Stats:

• Bench top (30Kgs approx)
• Air operated (we can supply air compressor if required)
• 1ml to 1250mls fill range, single shot
• Cold and hot fill
• Can handle particles and suspensions
• Easy fill volume adjustment
• Suits liquids, creams and pastes
• 10-15 units per minute (guide only)
• Can be fed by hopper or self feed inlet assembly
• Can be lightly pressure or overhead tank fed
• Can be automated beside a conveyor
• Suitable for food and pharmaceutical use
• Can run start/stop, continuously or by foot-switch
• Totally speed adjustable, fill and recharge stroke
• All 316 grade stainless steel wet parts
• 600kpa (80psi) pressure requirement
• Can be fully washed down
• Product dispensing cylinders dismantle for cleaning by hand with no tools required
• Flameproof
• Suits a range of commercial in-house manufacturing
• Small to medium sized production systems
• Quick change over of product and parts
• Accuracy +/- 0.5 to 1% variance
