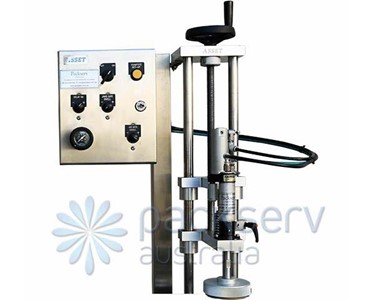

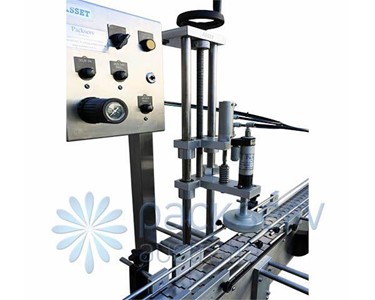

Single Head Auto Cap Tightener for Hire | AAC-1 Get latest price

Read more...

To contact Packserv about Single Head Auto Cap Tightener for Hire | AAC-1 use Get a quote.

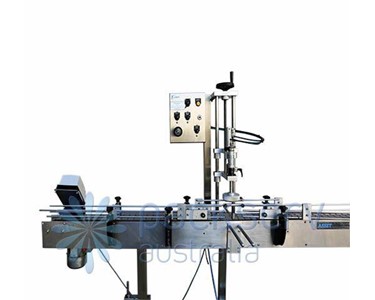

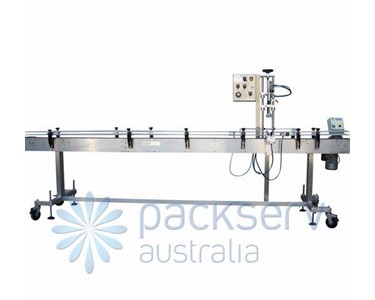

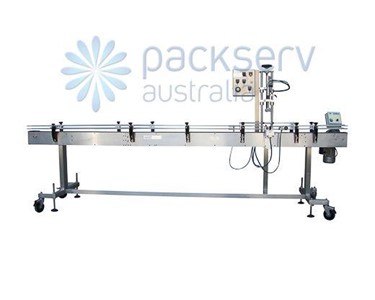

Packserv can also supply the machine ready to run mounted onto one of our conveyors (refer to CV-6) in various lengths.
Containers arrive at the machine by an inline conveyor, with caps pre-placed upstream either manually or by automatic cap placement equipment. A photo electric sensor or whisker switch detects the presence of a container and initiates machine operation through an electronic or pneumatic timer control unit.

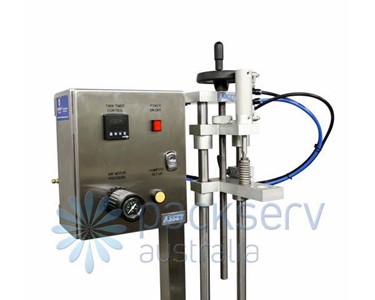

The control unit enables fast set-ups and simple fine tuning of cycles through its programmable timer and digital display or pneumatic controls. The delay and operating dwell times of the cap tightening chuck and the container clamping jaws and gating can be freely set by push buttons or knobs on the front panel. The twin timer control unit with separate settings for chuck and jaws/gates, provides substantially increased flexibility when running bottles at higher speeds and /or with difficult components.

The AAC-1 Auto bottle capper is supplied complete with a conveyor or conveyor mounting frame, pneumatic container gating and clamping devices, and aluminium clamping jaws (with non marking friction facing) of either the general purpose V-Jaw type or contoured to the individual container profile. Jaws for glass containers are supplied with plastic slippers to prevent the container scoring the conveyor during the bottling process.

Our range of 5 standard interchangeable tightening chuck sizes and 3 standard liner materials will handle most capping applications. Chucks are also available for specialised closures such as Tamper-tel, eyedropper etc. For trigger pack sprays, cream dispensers, mist pumps and other closures which cannot be tightened from above the Asset Pumptite unit is available as a bolt on optional item, refer to the PT-7 spec page.

We can supply the AAC-1 Auto ready for the customer to adapt to their existing conveyor lines or we can provide a complete on site installation service including conveyor mounting, guide rails etc.

Features

• Sturdy low maintenance construction
• Container height adjustment hand-wheel and locking ring
• Quick container and cap size changeover
• High quality Desoutter air motor drive
• Precise torque setting via pressure regulator and gauge
• Dimensions: 50x40x80

Stats

• Machine attaches to conveyor (40Kgs approx)
• Can be supplied on conveyor or stand alone, see CV-6
• Air operated (we can supply air compressor if required)
• 20-60 units per minute (guide only)
• Suitable for food, cosmetic and pharmaceutical use
• Pneumatic or electro/pneumatic controlled
• Electronic timer is single phase 10Amp power
• Totally speed adjustable
• 600kpa (80psi) pressure requirement
• Quick container change over
• Various chucks and chuck sizes to suit most caps
• Fully torque adjustable
• 10mm-100mm standard chucks, others can be made
• Screw, pump, mist, trigger, push and snap closures
• All 316 stainless steel and aluminium construction
• Can be flameproof (pneumatic version)
• No tools required for setting adjustment
