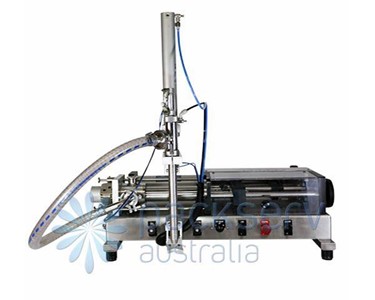

The versatility of this all pneumatic machine has now been enhanced with a completely new compact design volume adjustment and cylinder assembly incorporating a revolutionary rotary valve system, an Australian Registered Design developed by Asset for the AV-3's big brother, the AMF Series multi cylinder bottle filler. The machine also comes standard with positive shut-off nozzle and bottom up fill.

The new valve system handles bottling products from thin liquids to creams and thick pastes, it will even package products with soft suspended solids, a task previously requiring 2 different types of filling machine or expensive change parts. The new cylinder design enables quicker dismantling and easier, more thorough cleaning of wet parts. Various product supply methods can be used according to the nature of product or customer preference e.g. close coupled hopper, suction hose inlet assembly, elevated or floor level tank, and low pressure feed from a pump.
Although designed primarily for trolley mounted semiautomatic operation the AV-3-BUF series design can be automated onto a conveyor line or specialised automatic filling application.

The stroke adjuster and air/product cylinder drive assembly are enclosed by a safety interlocked polycarbonate cover.

Features

• Heavy duty pneumatic product cylinder drive system
• Integral 304-grade stainless steel base and cladding for bench or trolley mounting
• Suitable for warm water hose down
• Wet parts manufactured from 316 grade stainless steel and food grade engineering plastics
• Product piston fitted with O-ring energised teflon/HDPE glide ring seal
• Quick connect tri-clover product inlet/outlet fittings
• All pneumatic flameproof operation suitable for use with flammable products
• Individual fill speed and recharge speed controls
• Asset Rotary Product Valve system provides a positive valve seal unaffected by product supply head height
• Available in 25, 50, 125, 250, 500, or 1250ml cylinder sizes
• Infinitely adjustable between 10% and 100% of their rated volumes
• Product cylinder and valve dismantle by hand for cleaning, no tools required
• Easy volume adjustment while running
• Filling accuracy +/- 0.5 to 1%

Stats

• Bench top (30Kgs approx)
• Air operated (we can supply air compressor if required)
• 3mls to 1250mls fill range, single shot
• Cold and hot fill bottles
• Can handle particles and suspensions
• Fully volume adjustable
• Suitable for Liquids, creams and pastes
• 10-15 units per minute (guide only)

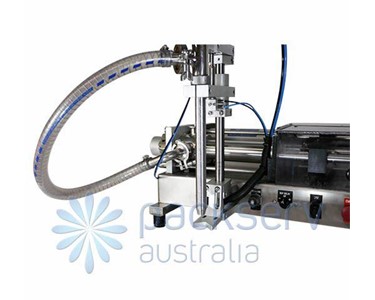

• Positive shut-off nozzle
• Bottom up fill

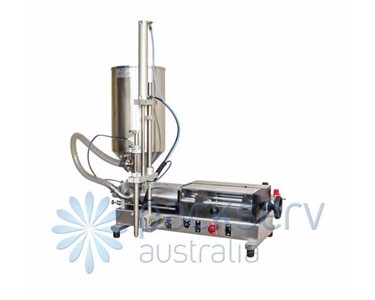

• Can be fed by hopper or self feed suction hose inlet assembly
• Can be lightly pressure or overhead tank fed
• Can be automated beside a conveyor with gates and sensors
• Suitable for food and pharmaceutical use
• Can run start/stop, continuously or by foot-switch
• Totally speed adjustable, fill and recharge stroke
• All 316 grade stainless steel wet parts
• 600kpa (80psi) pressure requirement
• Can be fully washed down
• Product dispensing cylinders dismantle for cleaning by hand with no tools required
• Flameproof
• Suits a range of commercial in-house manufacturing
• Small to medium sized production systems
• Quick change over of product and parts
• Accuracy +/- 0.5 to 1% variance
