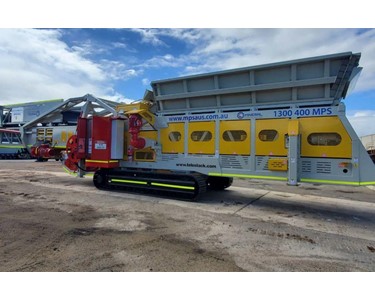

Telestack HF24T Hopper Feeder

Telestack - HF24T Hopper Feeder

Supplier: OPS Group

HF24T Hopper Feeder

HF24T Hopper Feeder | heavy duty fully mobile conveyor

Receive 1-3 days from order

The HF 24T is a heavy duty fully mobile conveyor designed to work at production rates up to 3,000tph in a mine or port. It has a large 24m³ (32yds³) hopper capacity to suit all types of applications and production rates with optional boom extensions for various discharge heights. Its hopper is designed to offer integral strength and stability in working position as standard and has an engine protection shutdown system. With a maximum lump feed size of up to 150mm (5”), the HF 24T has the ability to be fed easily by a CAT 992/994 or similar

Technical Specifications

KEY FEATURES

2,000-3,000TPH loader fed reclaim feeder
CAT engine to operate tracks, jack legs, folding conveyor into working position and raise/lower of the main conveyor
Hybrid apron belt feeder with VSD (combines the robust nature of the apron
feeder with the sealing abilities of a conveyor)
24m3 hopper capacity hopper with heavy duty fall break
6.5m feed in width
1400mm discharge conveyor
Fully mobile and easily transported
S drive with ceramic drive drum options
WEG motors and Bonfiglioni gearboxes
AS3000 electrical compliance
AS4024 machine guarding compliance
AS1657 platforms and landings compliance
No crane lift and no tool install possible
Interlink to connect to other downstream equipment such as an overland conveyor
On Board Cable reel with proconnect plug for power connection when in position

KEY ADVANTAGES

Reducing loading shovel movements which reduces operating cost and improves safety
Complete range of on-site mobility options to suit all ground conditions (Tracked & Wheeled Options)
Complete range of power options including: Diesel, All Electric, Dual Power, On-Board Generator
Increased safety as no need to stockpile with wheel loaders
24m³ (32yds³) hopper capacity to suit all types of applications and production rates
Can be packed 40ft containers for easy, cost effective transport around the globe
Unrivalled mobility and flexibility when in operation
High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion
Heavy duty design and manufacture
Ability to handle complete range of materials such as; Coal, Grains, fertilisers, Biomass, Ore’s (iron, copper, gold, bauxite), Aggregates, Woodchips, Mulch, Wood Pellets, Sulphur, Cement Clinker and many more

To contact OPS Group about Telestack HF24T Hopper Feeder use Get a quote.

Technical Specifications

KEY FEATURES

2,000-3,000TPH loader fed reclaim feeder
CAT engine to operate tracks, jack legs, folding conveyor into working position and raise/lower of the main conveyor
Hybrid apron belt feeder with VSD (combines the robust nature of the apron
feeder with the sealing abilities of a conveyor)
24m3 hopper capacity hopper with heavy duty fall break
6.5m feed in width
1400mm discharge conveyor
Fully mobile and easily transported
S drive with ceramic drive drum options
WEG motors and Bonfiglioni gearboxes
AS3000 electrical compliance
AS4024 machine guarding compliance
AS1657 platforms and landings compliance
No crane lift and no tool install possible
Interlink to connect to other downstream equipment such as an overland conveyor
On Board Cable reel with proconnect plug for power connection when in position

KEY ADVANTAGES

Reducing loading shovel movements which reduces operating cost and improves safety
Complete range of on-site mobility options to suit all ground conditions (Tracked & Wheeled Options)
Complete range of power options including: Diesel, All Electric, Dual Power, On-Board Generator
Increased safety as no need to stockpile with wheel loaders
24m³ (32yds³) hopper capacity to suit all types of applications and production rates
Can be packed 40ft containers for easy, cost effective transport around the globe
Unrivalled mobility and flexibility when in operation
High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion
Heavy duty design and manufacture
Ability to handle complete range of materials such as; Coal, Grains, fertilisers, Biomass, Ore’s (iron, copper, gold, bauxite), Aggregates, Woodchips, Mulch, Wood Pellets, Sulphur, Cement Clinker and many more

Read less...

To contact OPS Group about Telestack HF24T Hopper Feeder use Get a quote.
