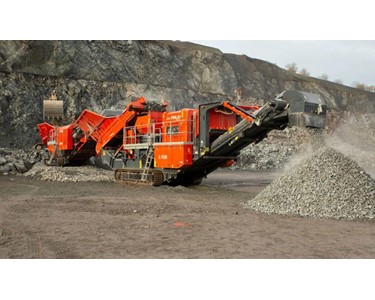

The Finlay® C-1550+ Tracked Cone Crusher is a high capacity and aggressive mobile cone crusher for the surface ore mining and aggregate industries. This efficient and productive machine incorporates the proven Terex® 1300 cone crusher with direct variable clutch drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.

The large hopper/feeder has an automated metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute.

Additional benefits include, rapid set up time, ease of maintenance, high reduction ratio, high output capacity and advanced electronic control system.

Technical Specifications

HOPPER/FEEDER

• Hopper capacity: 6m³ (7.8yd³)
• Feed height: 3.07m (10’ 1”)
• Feed height with optional hopper extensions: 3.54m (11’ 7”)
• Hopper Width at rear: 2.25m (7’ 5”)
• Hopper Width at rear with optional hopper extensions: 4.1m (13’ 5”)

CONE CHAMBER

• Terex TC1300x 1300mm (52”) cone chamber
• Variable speed control settings for producing a quality aggregate
• Drive arrangement: Direct drive via clutch and v-belts
• ‘On the fly’ hydraulically adjustable closed side setting with monitoring system
• Mantle/concave wear indicator

METAL DETECTION SYSTEM

• Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.

MAIN CONVEYER

• Belt Width: 1.1m (44”)
• Belt Spec: Plain
• Discharge Height: 3.6m (11’ 10”)

UNDERCARRIAGE

• Shoe Width: 500mm (20”)
• Tracking Speed: 1.2 km/h
• Gradeability: 25°

TRANSPORT DIMENSIONS

• Height 3.8m | Width 3m | Length 17.92m | 50,250kg

ENGINE

• C15 540 Horsepower
