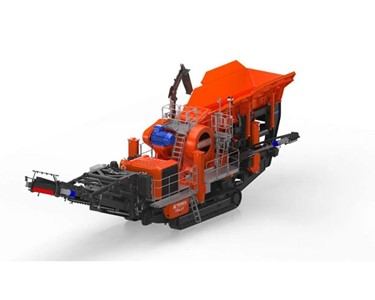

The Finlay® LJ-130 hybrid jaw crusher is the largest mobile jaw crusher in our range and has been developed for large-scale quarry and mining operations. The machine can operate as standalone primary crusher or integrated into a mobile or static crushing and screening plant.

The machine can be powered either by the onboard genset powerpack configuration or connected to an external power source. Both power options provide operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/ hydraulic powered plant. For easy transport movement between locations the plant can be split down and reassembled without the need for heavy crane assistance on site.

Technical Specifications

HOPPER/FEEDER

• Capacity: 13.5m³ (17.64yds³)
• Feed height: 5.9m (19’ 4”) - without extensions fitted
• Feed height: 6.35m (20’ 10”) - with extensions fitted
• Hopper length: 6.1m (20’)
• Hopper type: Hydraulic locking from ground level

JAW CRUSHER

• Terex TJ3951 single toggle jaw crusher
• Inlet width: 1300mm (51”)
• Inlet gape: 1000mm (39”)
• Maximum Closed Side Settings (CSS): 250mm (10”)
• Minimum Closed Side Settings (CSS) : 125mm (5”)
• Reverse action for clearing blockages
• Variable speed electric drive

BY-PASS CONVER

• Belt Width: 750mm (26”)
• Discharge Height: 4m (13’ 1”)
• Hydraulically folds for transport
• Stockpile capacity: 89m³ (117yds³) @ 40°

MAGNET (OPTIONAL)

• Belt Width: 750mm (30”)
• Drive: Electric motor & planetary gearbox drive
• Right hand side discharge standard

MAIN CONVEYER

• Belt Width: 1.4m (4’ 6”)
• Working Angle: 21°
• Discharge Height: 4.2m (13’ 7”)
• Hydraulic folding head section for transport
• Impact bars and wear resistant liners at feed point
• Standard Stockpile capacity: 136m³ (178yds³) @ 40°

UNDERCARRIAGE

• Shoe Width: 500mm (20”)
• Gradeability: 30° maximum
• Speed: 0.7 km/h (0.4mph) maximum speed

TRANSPORT DIMENSIONS

• Height 4.25m | Width 3.4m | Length 17m | 123,000kg
