Finlay - Mobile Screening Plant | 696 Supertrak (2 Deck)

Supplier: OPS Group

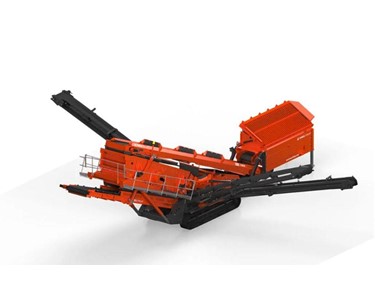

Mobile Screening Plant | 696 Supertrak (2 Deck)

The Finlay® 696 2-deck inclined screen has been developed to fulfil the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications.

Receive 1-3 days from order

The new high energy screenbox features two full size 6.1m x 1.7m (20’ x 5’ 7”) to give a total screening area of 20.74m² (223ft²). The 8m³ (10.5yd³) hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid.

Operator benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding screenbox catwalks and product conveyors. The compact transport envelope enables the machine to be transported between jobsites with ease.

The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine

Technical Specifications

HOPPER/FEEDER

Hopper Capacity: 8m³ (10.5yd³)
Feed height: 2.5m (8’)
Feed in width: 4.2m (13’ 9”) (grid wing plates)
Beltfeeder belt width: 1.2m (48”)
Speed: variable, 0 - 16 mpm (0 - 53’ per min)

SCREEN BOX

All decks: 6.1m x 1.7m (20’ x 5’ 7”) All 3 Decks
Hydraulic Folding Catwalks
Screen Angle: 18° - 32°, hydraulic adjust

UNDERCARRIAGE

Shoe Width: 500mm (20”)
Gradeability: 32.6°
Raking Angle: 9°

MIDGRADE CONVEYOR

Belt width: 800mm (32”)
Working Angle: 22°
Speed: variable speed, 0 - 90 mpm (410’ per min)
Discharge Height: 5.1m (16’ 9”)
Stockpile capacity: 228m³ (298yd³)

MAIN CONVEYOR

Belt width: 1.2m (48”)
Belt Speed: 92 mpm (302’ per min)
Steel skirted full length of conveyor

FINES CONVEYOR

Belt Width: 900mm (36”)
Working angle: 24° – 28°
Standard discharge height: 4m (13’1”) max
Stockpile capacity: 95m3 (124yd3 ) max
Extended discharge height: 4.8m (15’ 9”)
Stockpile capacity: 165m3 (216yd3 )

OVERSIZE CONVEYOR

Belt Width: 1.2m (48”)
Working angle: 18° – 24° hydraulic assist
Discharge height: 3.6m (11’10”)
Stockpile capacity: 70m3 (91yd3 )

TRANSPORT DIMENSIONS

Height 3.65m | Width 3m | Length 19.7m | 33,800kg

ENGINE

C4.4 High Output
