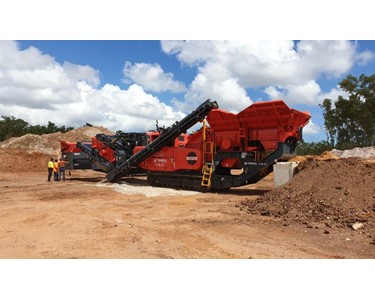

Impact Crusher | I-120RS

Supplier: OPS Group

Impact Crusher | I-120RS

This new generation Horizontal Shaft Impact Crusher with redefined style and advanced technological design gives improved material flow and production capabilities in quarrying, mining, demolition and recycling applications.

Receive 1-3 days from order

Incorporating the Finlay® CR038 impact chamber with direct drive and advanced electronic control system the machine provides operators with high material reduction ratios and produces a consistent product shape.

A key component of the machine is the on-board innovative quick detach 3.66m x 1.53m (12’ x 5’) two deck screen. For applications not requiring re-circulation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine.

The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contract crushing operators.

Technical Specifications

HOPPER/FEEDER

Capacity: 5m³ (6.5 yd³)
With Extensions: 8m³ (10.4 yd³) 4m (13’ 1”) rear feed width with hydraulic folding hopper extensions
Hydraulic locking

IMPACT CRUSHER

Rotor diameter: Ø1033mm (41”)
Rotor width: 1100mm (44”)
Inlet opening: 1130mm (45”) x 800mm (32”)
Direct drive via ‘V’ belts

BY-PASS CONVER

Belt Width: 650mm (26”)
Max. achievable discharge height target approx.
2.5m (8’2”) Stockpile capacity:
18.1m³ (23.7yd³)

RE CIRCULATING CONVEYOR

Belt Width: 500mm (20”)
Screen Angle: Fixed Conveyor can be hydraulically rotated between re-circulation mode and stockpile mode

SCREENBOX

Both decks: 3.66m x 1.53m (12’ x 5’)
Drive: hydraulic with heavy duty bearing Screen can be lowered for mesh changing and general service access
Complete RS System can be quick detached if not required

MAIN CONVEYER

Belt Width: 1.1m (44”)
Discharge Height: 3.5m (11’ 5”)
Hydraulic lowering for transport
Full length belt standard

FINES CONVEYER

Belt Width: 1.4m (55”)
Discharge height: 3m (9’ 10”)

TRANSPORT DIMENSIONS

Length 59' / Height 3.4m | Width 3.1m | Length 18m | 48,150kg

ENGINE

C9 Engine
