Haulotte - Electric Articulating Boom Lift HA12 CJ-CJ+ | 11.68 m

Supplier: United Forklift and Access Solutions

Electric Articulating Boom Lift HA12 CJ-CJ+ | 11.68 m

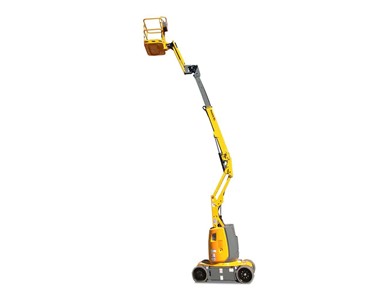

The Haulotte HA12CJ and HA12CJ+ electric articulating boom lifts are very robust and reliable booms that offer exceptional performance both indoors and outdoors.

Receive 1-3 days from order

Excellent manoeuvrability
Tight turning circle
Proportional and simultaneous movements
Long working hours

The HA12CJ and HA12CJ+ are compact, electric boom lifts designed for tight spaces and indoor applications. With a slim 1.20m width and stowed height of just 1.99m, they easily pass through double doors. Both models offer smooth proportional controls, a working height of 11.68m, and lift capacities of 250kg (HA12CJ) and 200kg (HA12CJ+).

The HA12CJ+ adds a 7.22m horizontal outreach and both vertical and horizontal jib rotation for maximum versatility in confined areas. Perfect for maintenance, electrical work, signage, and installations.

Specifications:

	HA12CJ	HA12CJ+
Working height	11.68 m	11.68 m
Platform height	9.68 m	9.68 m
Horizontal outreach	6.94 m	7.22 m
Up and over clearance	4.74 m	4.74 m
Lift capacity	250 kg	200 kg
Platform size	1.14 x 0.8 m	1.14 x 0.8 m
Length	5.36 m	5.64 m
Width	1.20 m	1.20 m
Height – stowed	1.99 m	1.99 m
Length – transport	3.86 m	4.20 m
Height – transport	2.22 m	2.60 m
Tailswing	0 cm	0 cm
Horizontal jib rotation	N/A	180 ° (-90/+90)
Vertical jib rotation	132.2 ° (+63.5 / -68.7)	132.2 ° (+63.5 / 68.7)
Platform rotation	180 ° (+90 / -90)	180 ° (-90 / +90)
Turntable rotation	355 °	355 °
Wheelbase	1.65 m	1.65 m
Ground clearance	10.7 cm	10.7 cm
Tilt	3 °	3 °
Proportional drive speed	0.68 – 6 km/h	0.68 – 6 km/h
Gradeability	25 %	25 %
Turning radius – outside	3.65 m	3.65 m
Tyres – non marking	598 x 190	598 x 190
Energy	48 V – 320 Amph (CT)	48 V – 320 Amph (Ct)
Turning radius – outside	7065 kg	7110 kg

Standard Features

Ergonomic control panels

Battery charge indicators on both control panels

Automatic platform levelling

Solid non-marking tyres

2-wheel drive

2-wheel steer

Deep cycle batteries

On board battery charger 48V – 50A

Towing hooks and lifting eyes

Tilt sensor

Load Management System in the platform

Horn

Hour meter

Mechanical turret slewing lock

Emergency hand pump

Options & Accessories

Traction batteries

Airline to platform

Fluorescent tube caddy

Orange safety cones holder

Self-closing swing door

Flashing light

Working light

Electric socket in the platform

Circuit-breaker

Telematics ready

To contact United Forklift and Access Solutions about Haulotte Electric Articulating Boom Lift HA12 CJ-CJ+ | 11.68 m use Get a quote.
